IMPORTANT: * These values are for information only. They should be checked and selected to comply with local and/or
national codes and/or national codes and regulations. They are also subject to the type of installation and
size of conductors.
** The appropriate voltage range should be checked with label data on the unit.
A main switch or other means for disconnection, having a contact separation in all poles, must be incorporated
in the fixed wiring in accordance with the relevant local and national legislation.

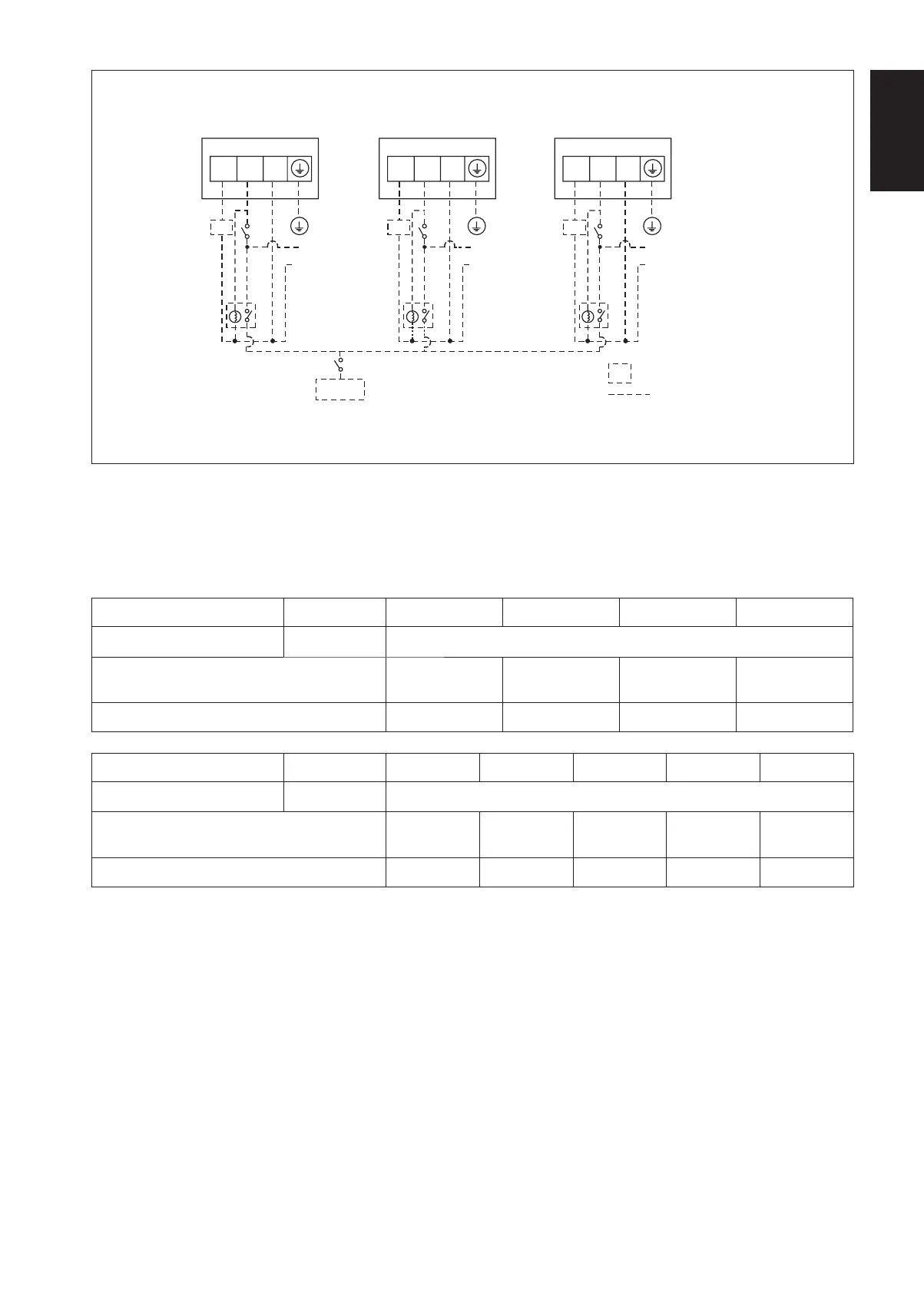

FWC 03/04/06/07/09/11/12/14/16C (with controller)
X1
3WV
Chiller
VALV E
LN
220-240V/~/50Hz or
208-230V/~/60Hz
L
N
X2
3WV
VALV E
LN
220-240V/~/50Hz or
208-230V/~/60Hz
L
N
X3
3WV
VALV E
LN
220-240V/~/50Hz or
208-230V/~/60Hz
L
N
3WV
3 way valve
Field supply
X1, X2, X3, Relay (220-240V, 10A)
FCU 1 FCU 2
FCU 3
Note:
This is a proposed wiring connection. It may change subject to the chiller unit and must comply with the local and national
code and regulations.
Model Indoor FWC03C FWC04C FWC06C FWC07C
Voltage Range** Indoor
220V-240V/ ~ /50Hz + ! or 208V-230V/ ~ /60Hz + !
Power Supply Cable Size* mm
2
Number of Conductors
1.5
3
1.5
3
1.5
3
1.5
3
Recommended Time Delay Fuse* A 1112
Model Indoor FWC09C FWC11C FWC12C FWC14C FWC16C
Voltage Range** Indoor
220V-240V/ ~ /50Hz + ! or 208V-230V/ ~ /60Hz + !
Power Supply Cable Size* mm
2
Number of Conductors
1.5
3
1.5
3
1.5
3
1.5
3
1.5
3
Recommended Time Delay Fuse* A 35555
!
There must be an all pole
disconnection in the supply mains
with a contact separation of at
least 3mm.
All power line must be from the
same phase.
