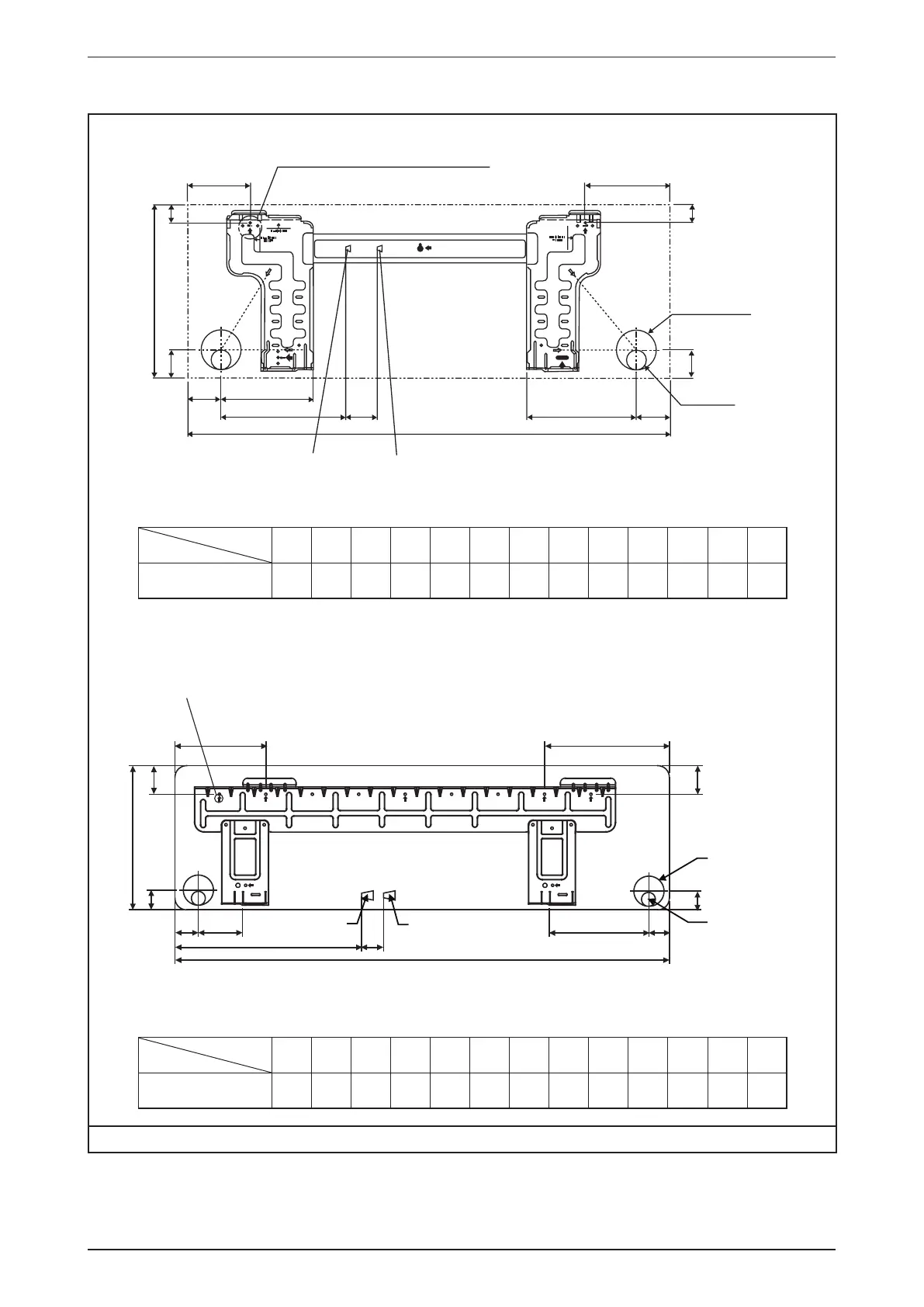

Outlines & Dimensions
129
Model: FWW02/03/04/05/06L
 stops noitneter etalp gnitnuom dednemmoceR
(5 spots in all)
Through the wall
hole Ø 65mm
Drain hose position
Gas pipe end
Liquid pipe end
E
F
G
IK
ML
JH
G
F
B
D
A
ALTERNATIVE INSTALLATION PLATE FWW02/03/04L
Dimension
Model
A B C D E F G H I J K L M
FWW02/03/04L 800 288 206 104 141 30 46 55 56 153 181 207 52
D
B
G
H
J
L
M
A
K
F
I
G
F
E
Through the wall
hole Ø 65mm
Drain hose position
Liquid pipe end Gas pipe end
INSTALLATION PLATE FWW05/06L
 stops noitneter etalp gnitnuom dednemmoceR
(7 spots in all)
Dimension
Model
A B C D E F G H I J K L M
FWW05/06L 1065 310 224 190 173 61 40 45 48 91 219 580 45
Note: Dimension in mm
