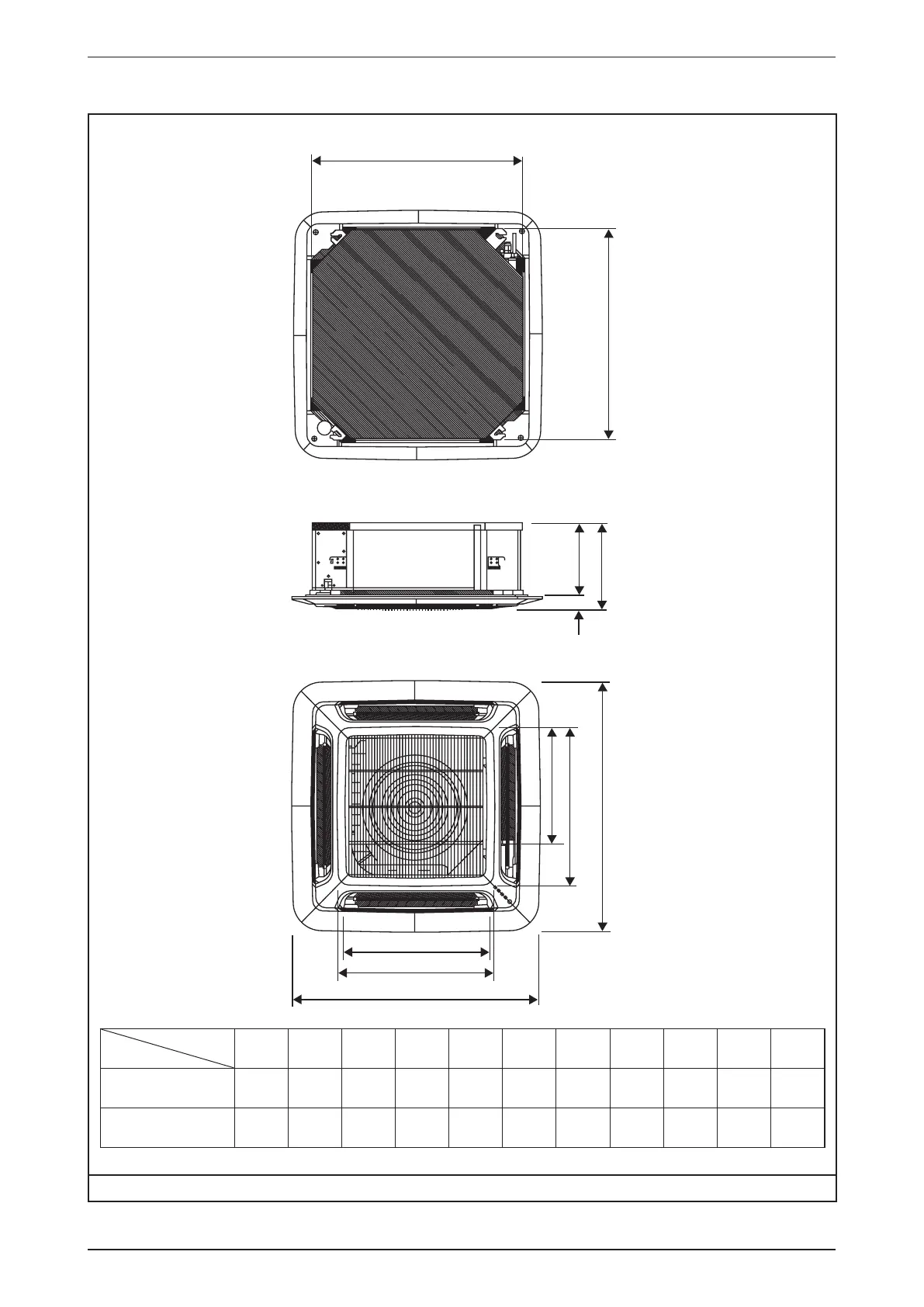

Outlines & Dimensions
131
Model: FWK06/08/09/11/13E(H)
A
B
C
D
E
F H
K
J
I
G
Dimension
Model
A B C D E F G H I J K
FWK06/08/09E(H) 820 820 340 300 40 990 990 627 627 607 430
FWK11/13E(H) 820 820 375 335 40 990 990 627 627 607 430
Note: Dimension in mm
