Daikin FWE07E - Page 154

150

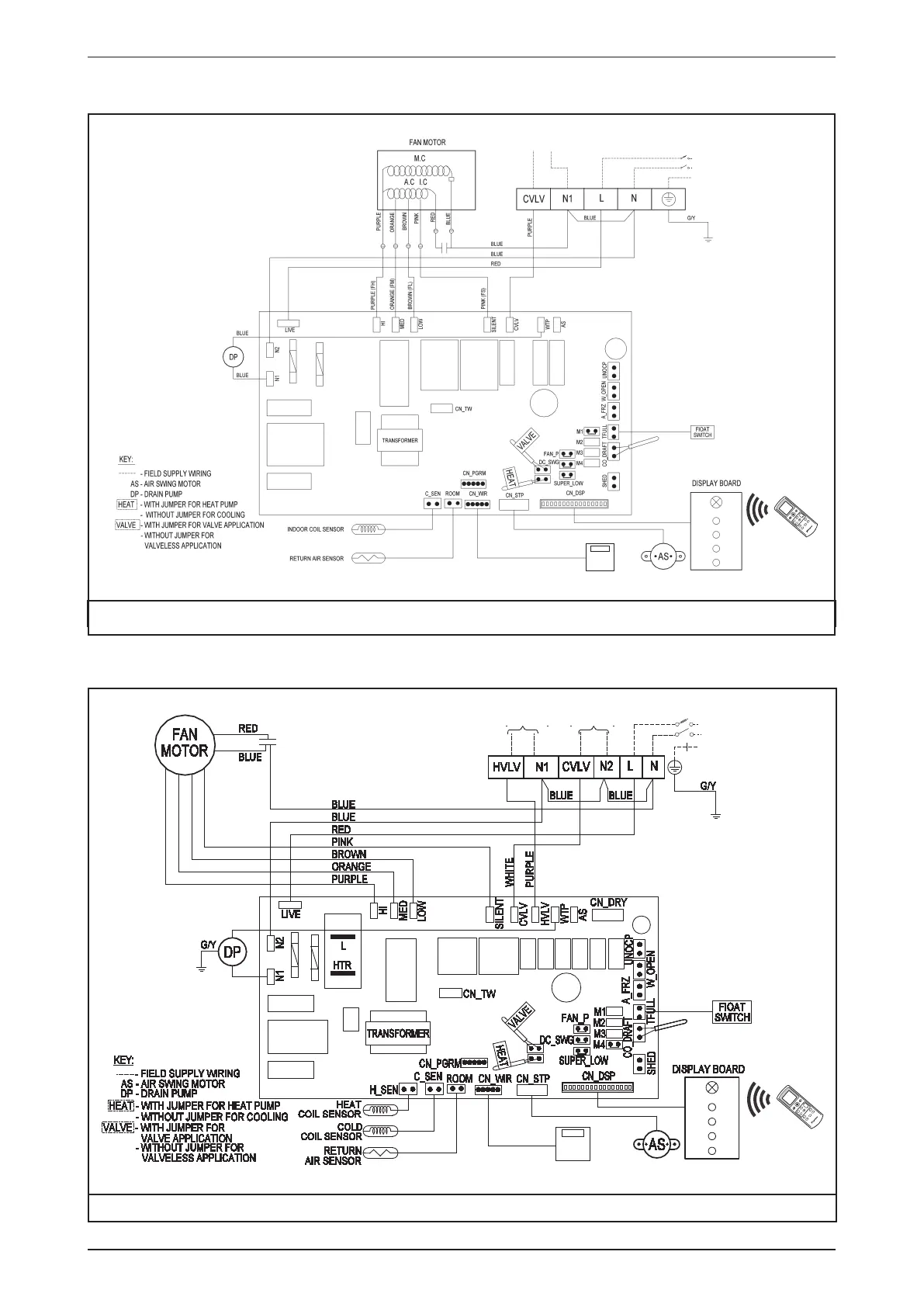

Wiring Diagrams
Model: FWK06/08/09/11/13E
WIRED
CONTROLLER
(OPTIONAL)
TURBO
QUIET SLEEP
MODE
TIMER
CANCEL
ON OFF
SWIN
G FAN
CANCEL
CLOCK
TO 2/3 WAY VALVE
POWER SUPPLY
220-240V/1Ph/50Hz
L
N
E
Note: Please do not install using third party controller as this will affect the functionality of unit feature
Model: FWK06/08/09/11/13EH
TURBO
QUIET SLEEP
MODE
TIMER
CANCEL
ON OFF
SWIN
G FAN
CANCEL
CLOCK
L
N
E
POWER SUPPLY
220-240V/1Ph/50Hz
WIRED
CONTROLLER
(OPTIONAL)
TO 2/3 WAY VALVE
(HEATING)
TO 2/3 WAY VALVE
(COOLING)
Note: Please do not install using third party controller as this will affect the functionality of unit feature
