16
Application Information
Model: FWE08/10/12E
Standard Mounting
Ensure that the overhead supports are strong enough to hold the weight of the unit. Position the hanger
rods (wall mounting bracket for oor standing), and check for its alignment with the unit. Also, check that
the hangers are secured and the base of the fan coil unit is leveled in both horizontal directions, taking into
account the gradient for drainage ow as recommended in Figure A.

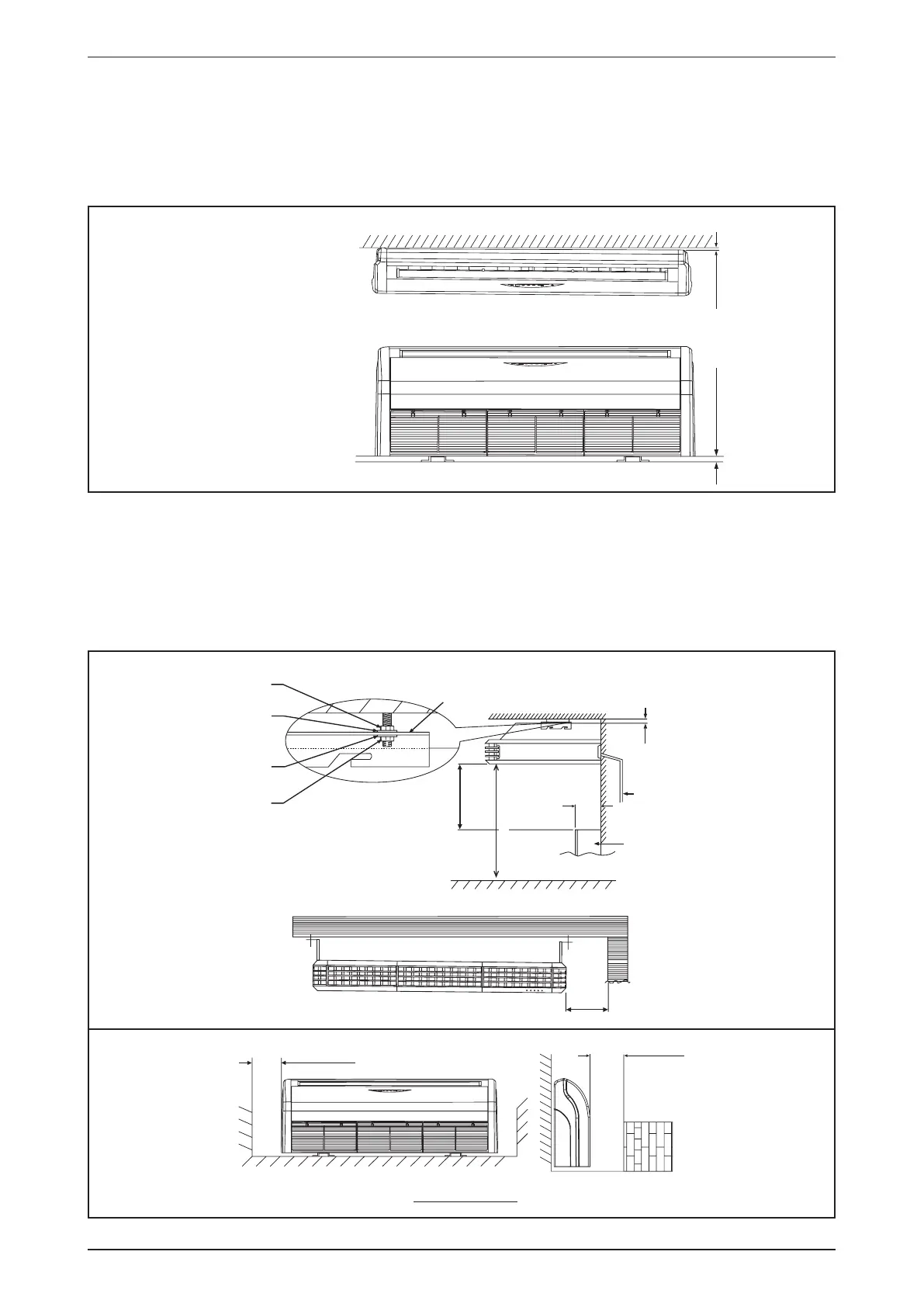

Figure A
10.0mm or less
10.0mm or more
Please ensure that the following steps are taken:
• Unit installation should be tilted at least 10mm as recommended in Figure A.
• The drain pipe slope shall be kept at least 1:100.
• Provide clearance for easy servicing and optimal air ow as shown in Figure B.
• The indoor unit must be installed such that there is no short circuit of the cool discharge air with the warm
return air.
• Do not install the indoor unit where there is direct sunlight shining on the unit. The location should be
suitable for piping and drainage installation. The unit must be a large distance away from the door.
Figure B
Utensils, furnitures or built-in
architectural features must not
protrude more than 250mm
Drainage Pipe
250mm or less
300mm
(Min.)
500mm or more
10mm
Indoor Unit
Hanger Bracket
Nut
Washer
Washer
Nut
Floor
2300mm or more
Ceiling
1m or more
400mm or more
Floor Standing Type
