Application Information
Model: FWC-G EC (MSP , LSP)
The indoor unit must be installed such that there is no short circuit of the cool discharge. Respect the
installation clearance. Do not put the indoor unit where there is direct sunlight on unit. The location is suitable
for piping and drainage and it must have a large distance between a door and unit.

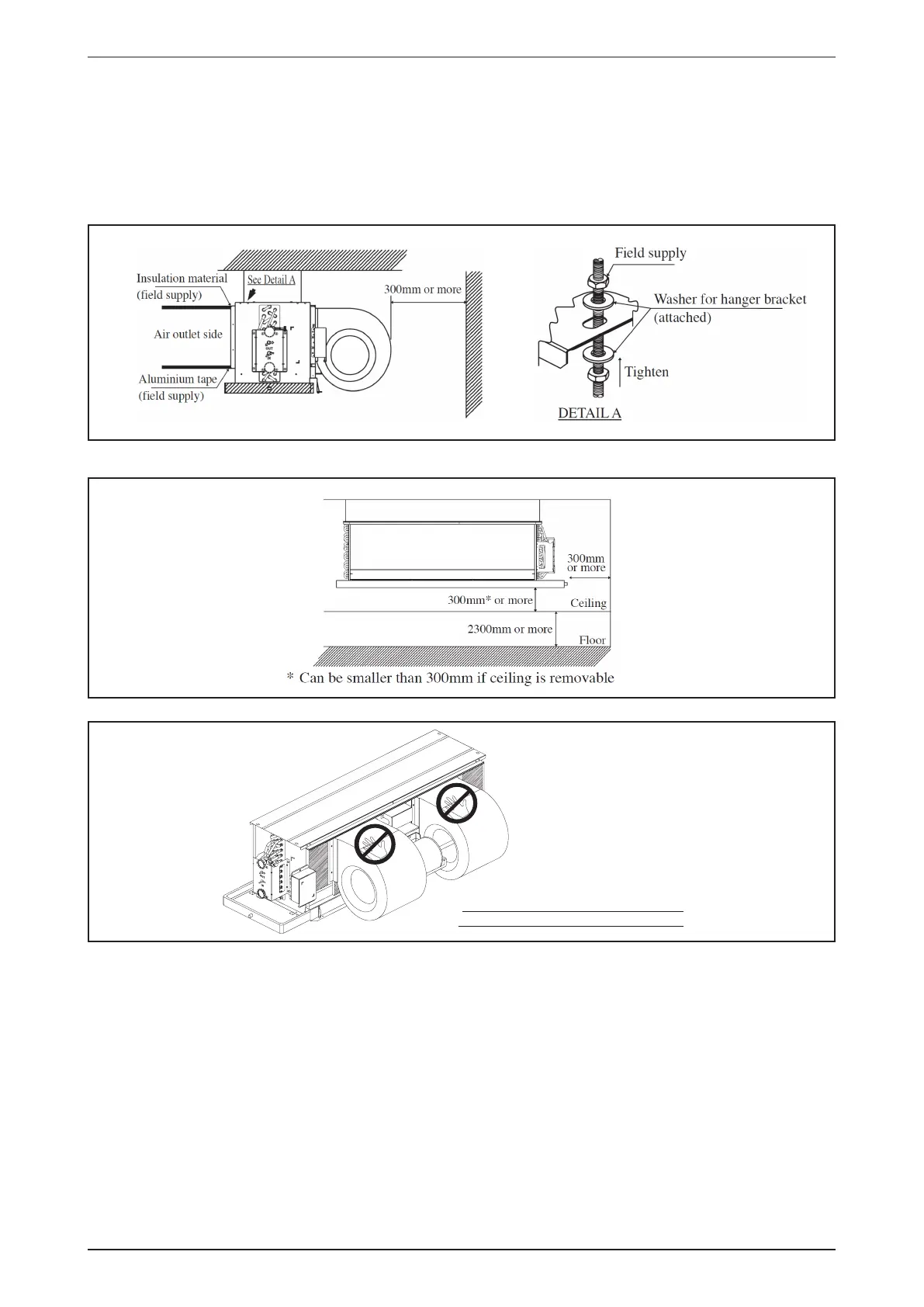

Ceiling Concealed Mounting
• Use the hanger supplied with the unit.
• Make sure that the ceiling is sufciently strong to withstand the weight.
Provide clearance for servicing ease and optimal air ow as shown in the diagram.
DO NOT HOLD THE BLOWER WHILE
LIFTING AND INSTALLING THE UNIT.
