16 | Unit installation
Installer and user reference guide
53
FXSA15~140A2VEB
VRV system air conditioner
4P599622-1 – 2020.05
800
800
(mm)
a
b:
≥
500
a
A B
C
≥500
≥
300

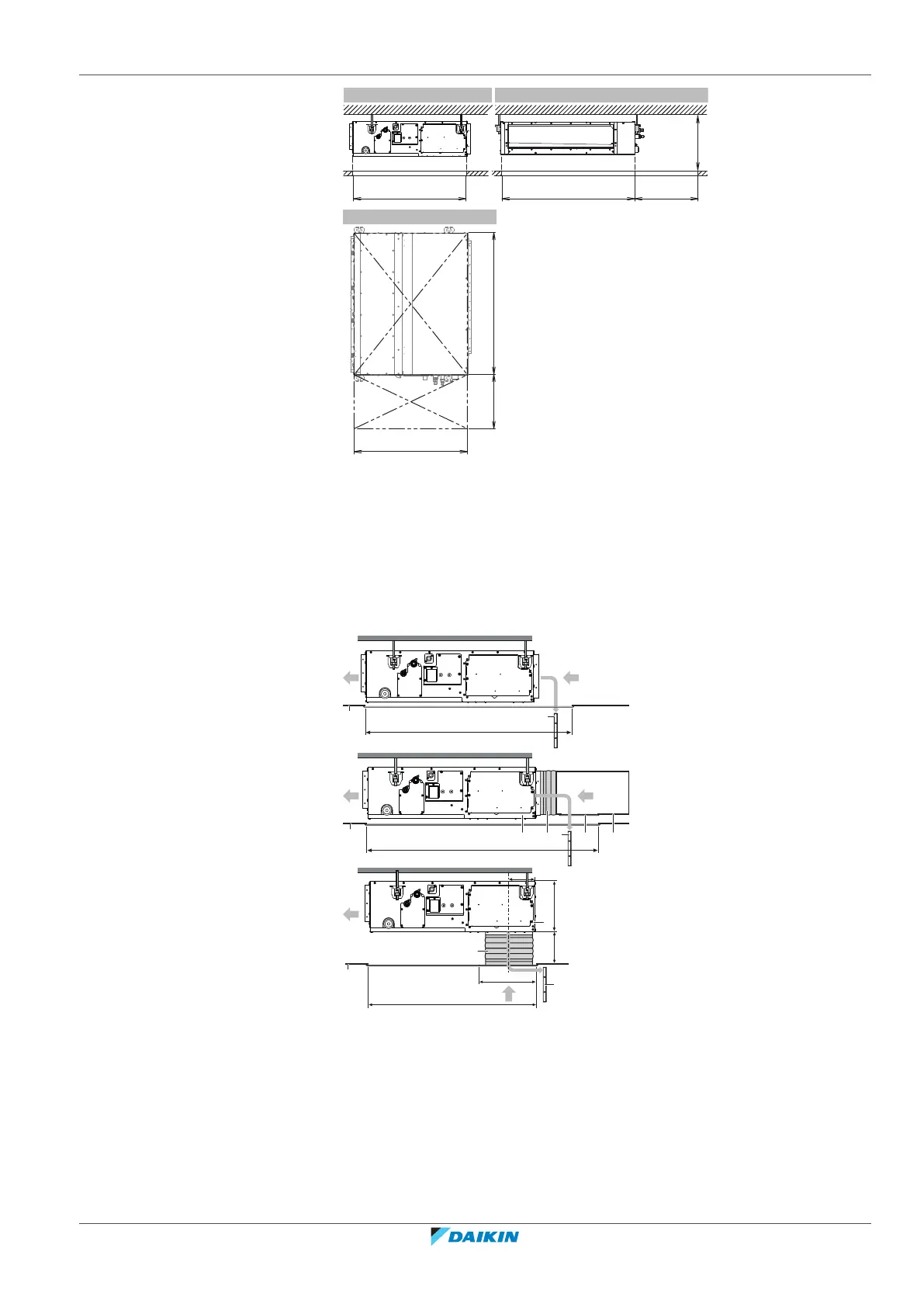

A Side view: refrigerant piping, drain piping, control box
B Side view: air inlet
C Top view
a Ceiling opening
Class 15~32: 550mm
Class 40~50: 700mm
Class 63~80: 1000mm
Class 100~125: 1400mm
Class 140: 1550mm
b Service space
Installation options
c
a
b ≥1100
b ≥1100
A
B
c
c
d
e
f
(mm)
g
125
b ≥800
160
(160~300)
245
h ≥460
C
f
g
a
a
A Standard rear suction
B Installation with rear canvas duct and duct service opening
C Installation with bottom canvas duct and air inlet grill
a Ceiling surface
b Ceiling opening
c Air filter
d Air inlet duct
e Duct service opening
f Interchangeable plate
g Canvas connection for air inlet panel (field supply)
h Air inlet panel (field supply) opening
