Removal of Electrical Components ASSY Si01-779
4 Removal Procedure
3

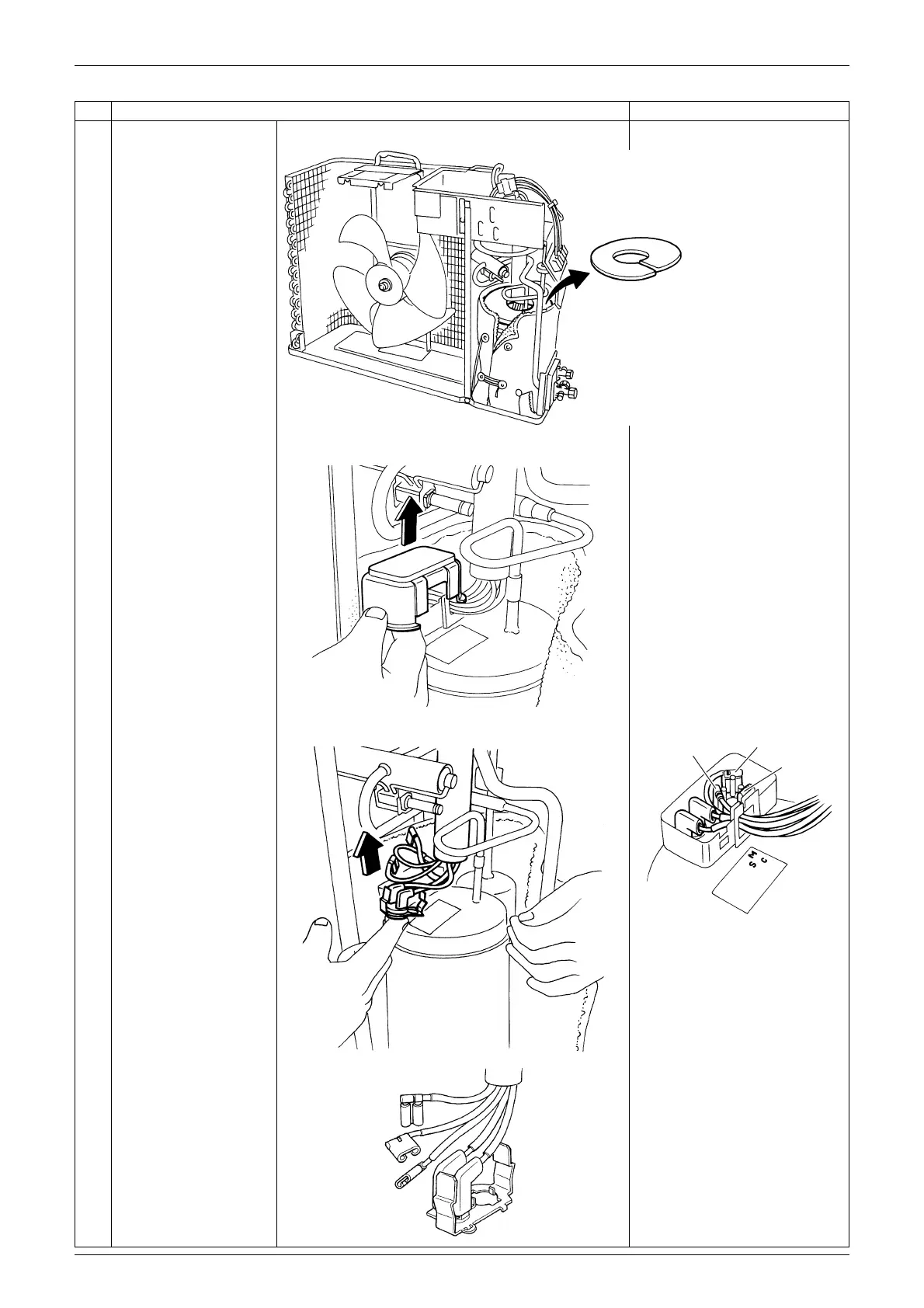

Remove the sound
blanket (top).
4
Remove the terminal
cover.

The designs of terminal
cover and compressor
terminal vary depending on
the model.
5
Remove the overload
protector and the 3 lead
wires for the
compressor together
with mounting plate.
Step Procedure Points
(R2355)
(R2356)
S: yellow
M: red
C: blue
(R12920)
(R2359)
(R12891)
