Removal of Outer Panels / Fan Motor Si001067
4 Removal Procedure
5

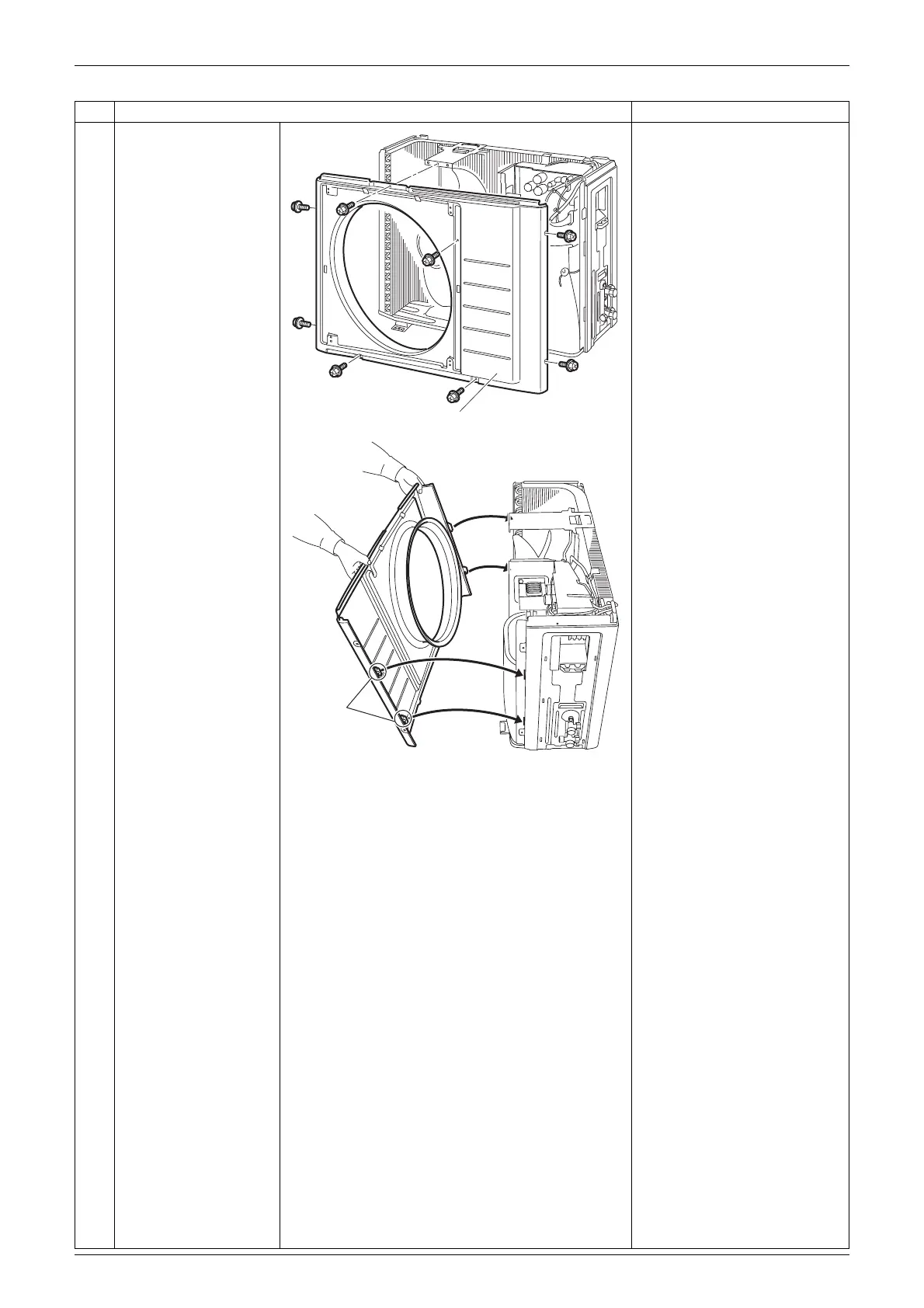

Remove the 8 screws
of the front panel.
6
Unfasten the hooks.
Pull and remove the
front panel.
The front panel has 4 hooks.
Step Procedure Points
(R11825)
Front panel
(R13505)
Hook
