1) ALL SPECIFICATIONS ARE SUBJECT TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE

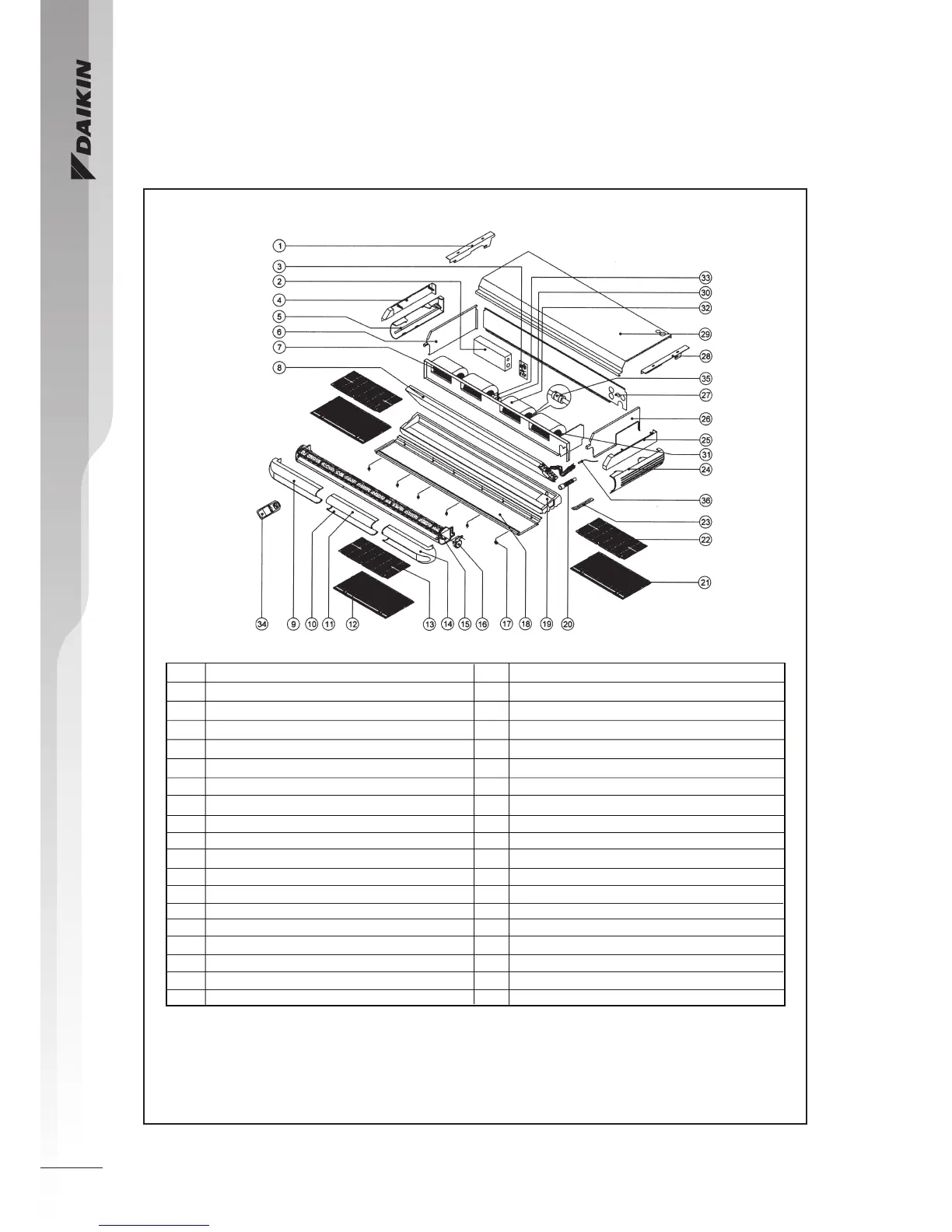

Model : FLN40/50DV1L, FLN40/50DV1M
NO. PARTS DESCRIPTION NO. PARTS DESCRIPTION
1 BRACKET HANGER, LEFT
2 CONTROL BOX COVER
3 L2 CONTROL MODULE
20 DRAIN HOSE ASSY.
4 CLOSE UP, LEFT
21 AIR INTAKE GRILLE ASSY.
5 FRAME, SIDE PANEL
22 AIR INTAKE GRILLE ASSY.
6 ASSY, COIL HOLDER LEFT
7 FAN DECK
8 COIL ASSY.
9 FRAME, FRONT LEFT
10
23 BRACKET, CENTRE SUPPORT
24 FRAME, SIDE RIGHT
25 CLOSE UP, RIGHT
26 ASSY, COIL HOLDER RIGHT
27 BACK PANEL
FRAME BOTTOM CENTRE
11 FRONT TOP CENTRE
19 DRAIN PAN ASSY.
28 BRACKET HANGER, RIGHT
12 AIR INTAKE GRILLE FRAME CENTER ASSY.
13 AIR INTAKE GRILLE FRAME CENTER ASSY.
14 FRAME, FRONT RIGHT
15 ASSY, LOUVER BOTTOM
16 AIR SWING MOTOR ASSY.
17 AIR INTAKE GRILLE FRAME HOLDER ASSY.
18 BOTTOM PANEL
29 TOP PANEL
30 FAN MOTOR
31 BLOWER WHEEL
32 HOUSING BLOWER, BOTTOM
33 HOUSING BLOWER, TOP
34 G7 HANDSET
35 RUBBER COUPLING
36 THERMISTER
