Outdoor Unit (RR/RQ)
MADE IN MALAYSIA
IJJ
D
M
B
G
O
NN
K
A
L
EF
H
C

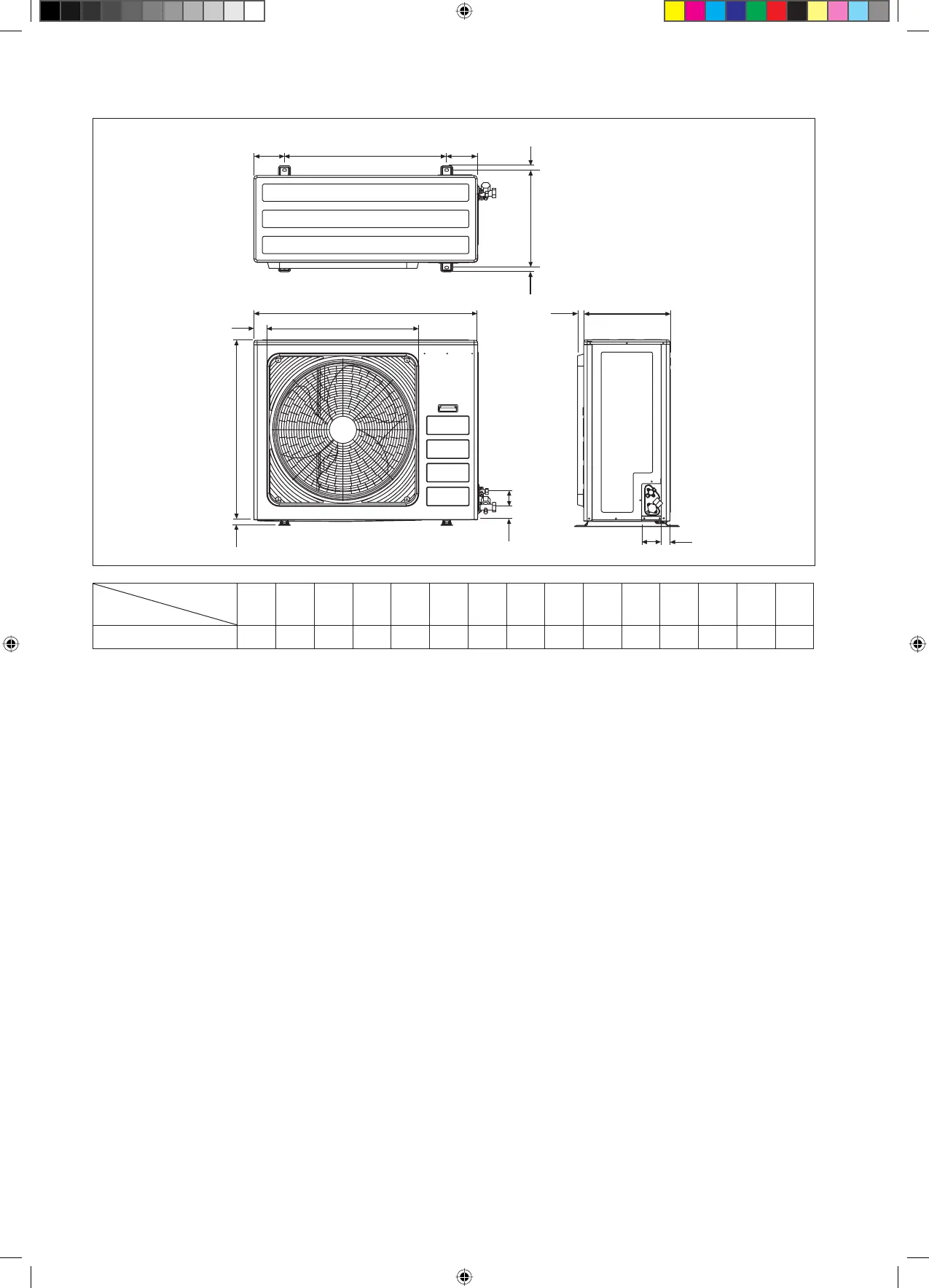

All dimensions are in mm
Dimension
Model
ABCDEFGHI JKLMNO
90/100/125/140D 1030 826 400 410 57 72 90 40 746 142 60 26 448 22 28
