Daikin Super Multi NX FFQ25B8V1B

SiBE121021_C Outdoor Unit - 80/90 Class
Removal Procedure 415
10

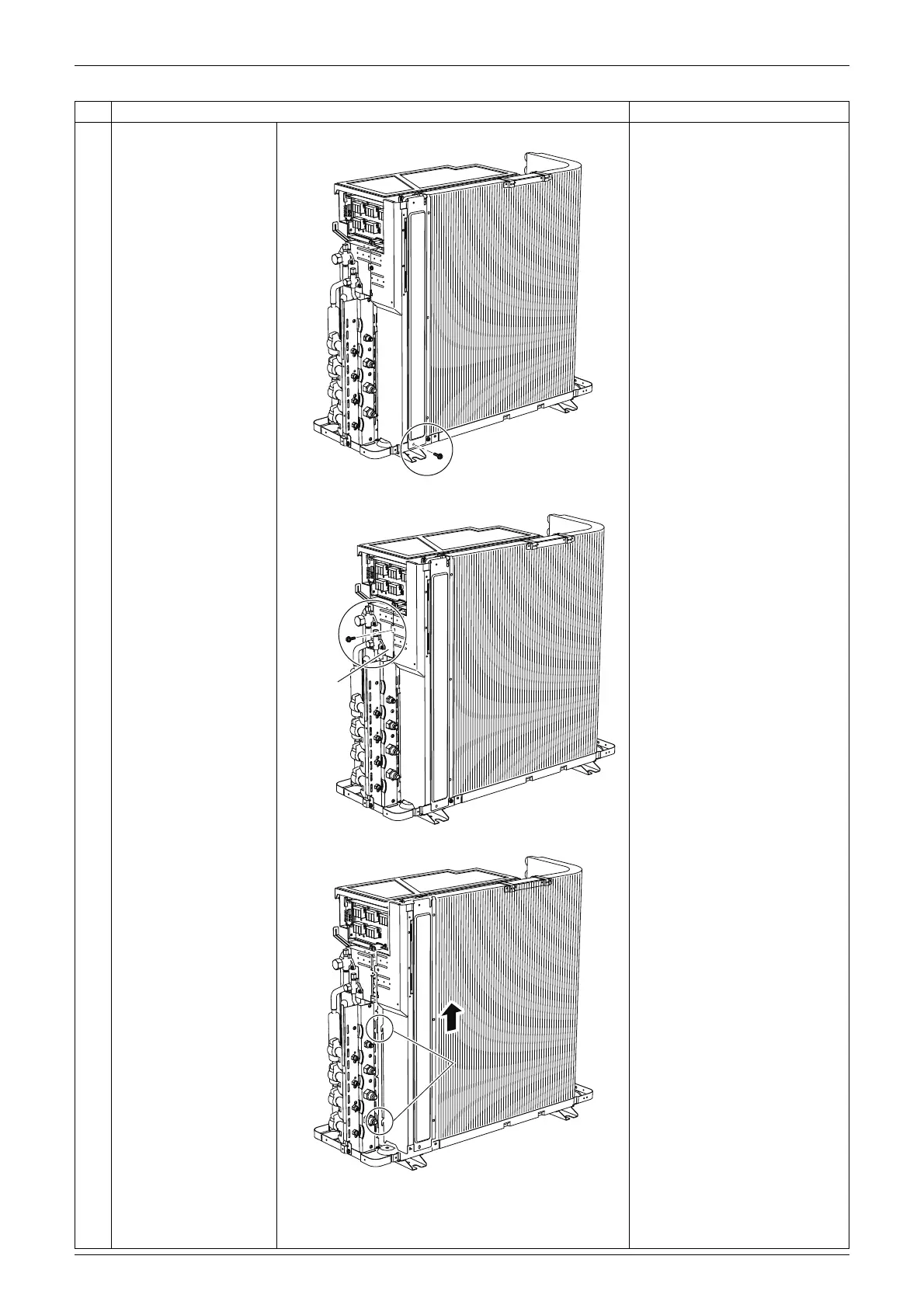

Remove the screw on
the bottom frame.
11
Remove the screw on
the stop valve mounting
plate.
12
Lift the rear panel
upward to unfasten the
2 hooks.
Step
Procedure Points
(R10391)
(R10392)
Stop valve
mounting
plate
Hook
Hook
Hook
(R12918)
