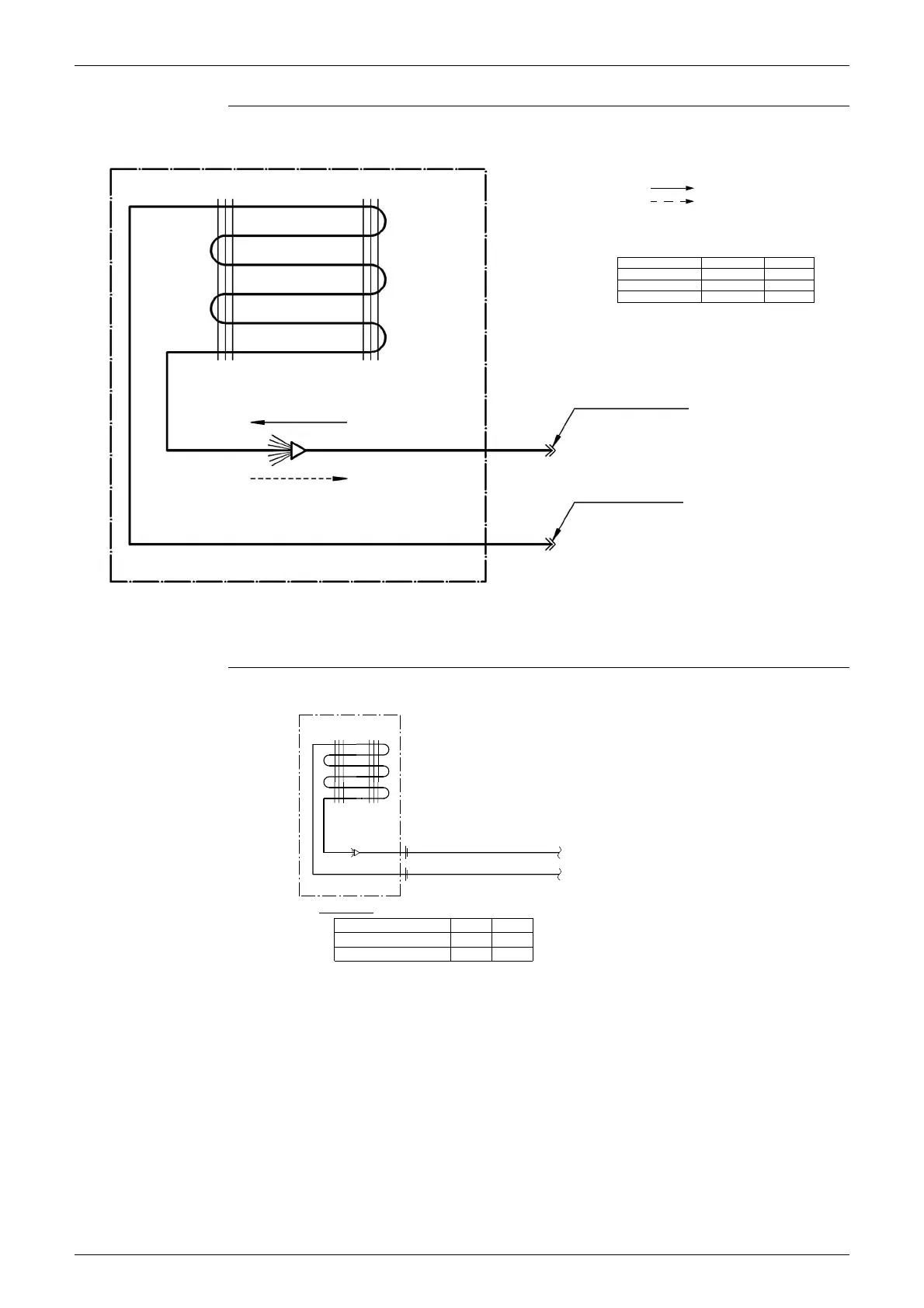

SiBE121021_C Piping Diagrams
Appendix 469
FBQ35/50/60C7VEB
1.1.7 Ceiling Suspended Type
FHQ35/50/60BVV1B
C: 3TW31275-1
FBQ35C
FBQ50C
FBQ60C
9.52
12.70
12.70
6.35
6.35
6.35
Refrigerant pipe connection port diameters
Model
Gas
Liquid
Liquid pipe connection port
Gas pipe connection port
Heat exchanger
Refrigerant flow
Cooling
Heating
To
Outdoor unit
FHQ35BVV1B
FHQ50/60BVV1B
6.4
6.4
9.5
12.7
AB
MODEL
Indoor unit
Field piping φ A C1220T-0
Field piping φ B C1220T-0
Indoor heat exchanger
C: 4D037995J
