Outdoor Unit: 2MXS18GVJU SiUS12-928_B
207 Removal Procedure

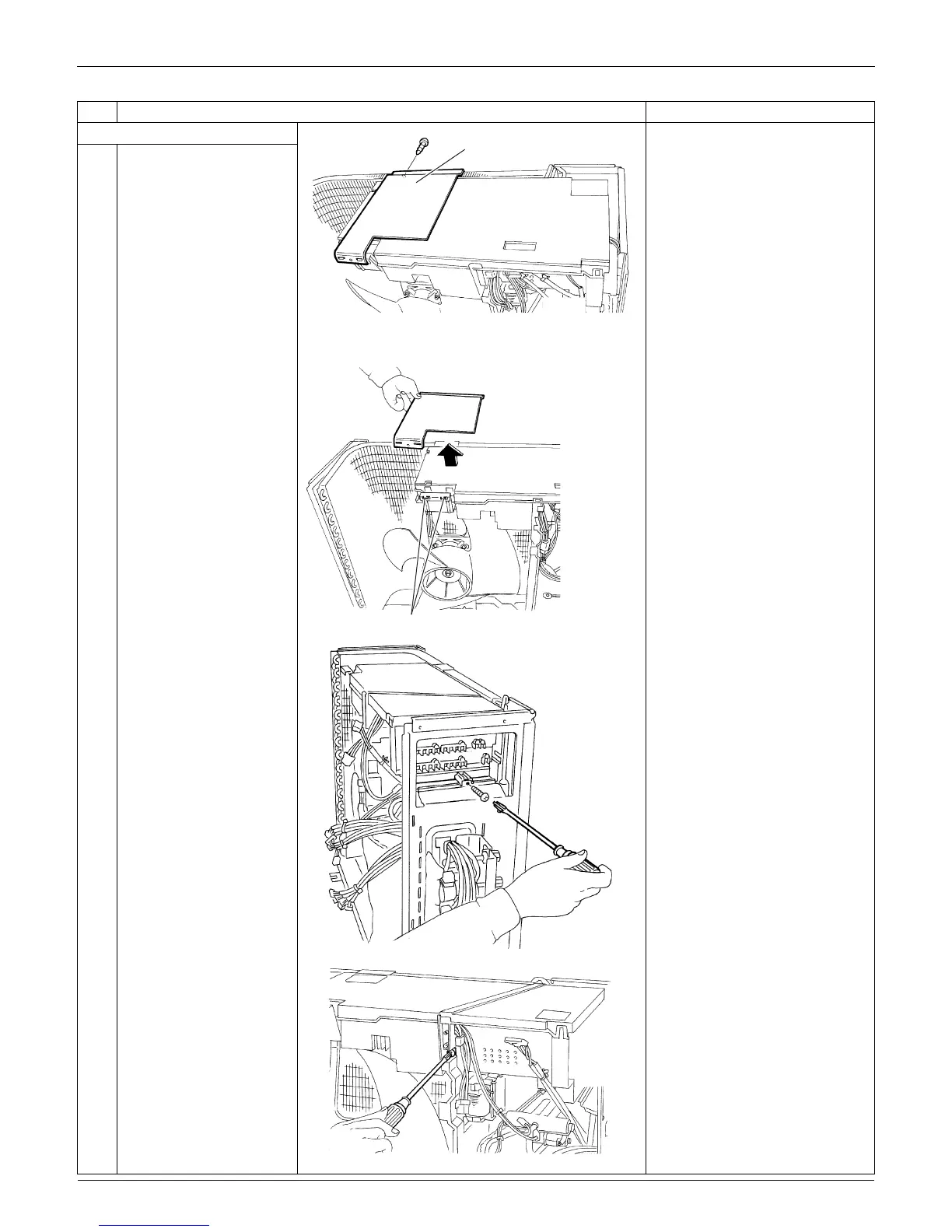

3. Remove the electrical box.
1
Remove the screw of the
shield plate.
2
Unfasten the 2 hooks and
remove the shield plate.
3
Remove the screw on the
right side of the electrical
box.
4
Remove the screw on the
front side of the electrical
box.
Step
Procedure Points
(R17345)
Shield plate
(R17346)
Hook
(R10361)
(R17402)
