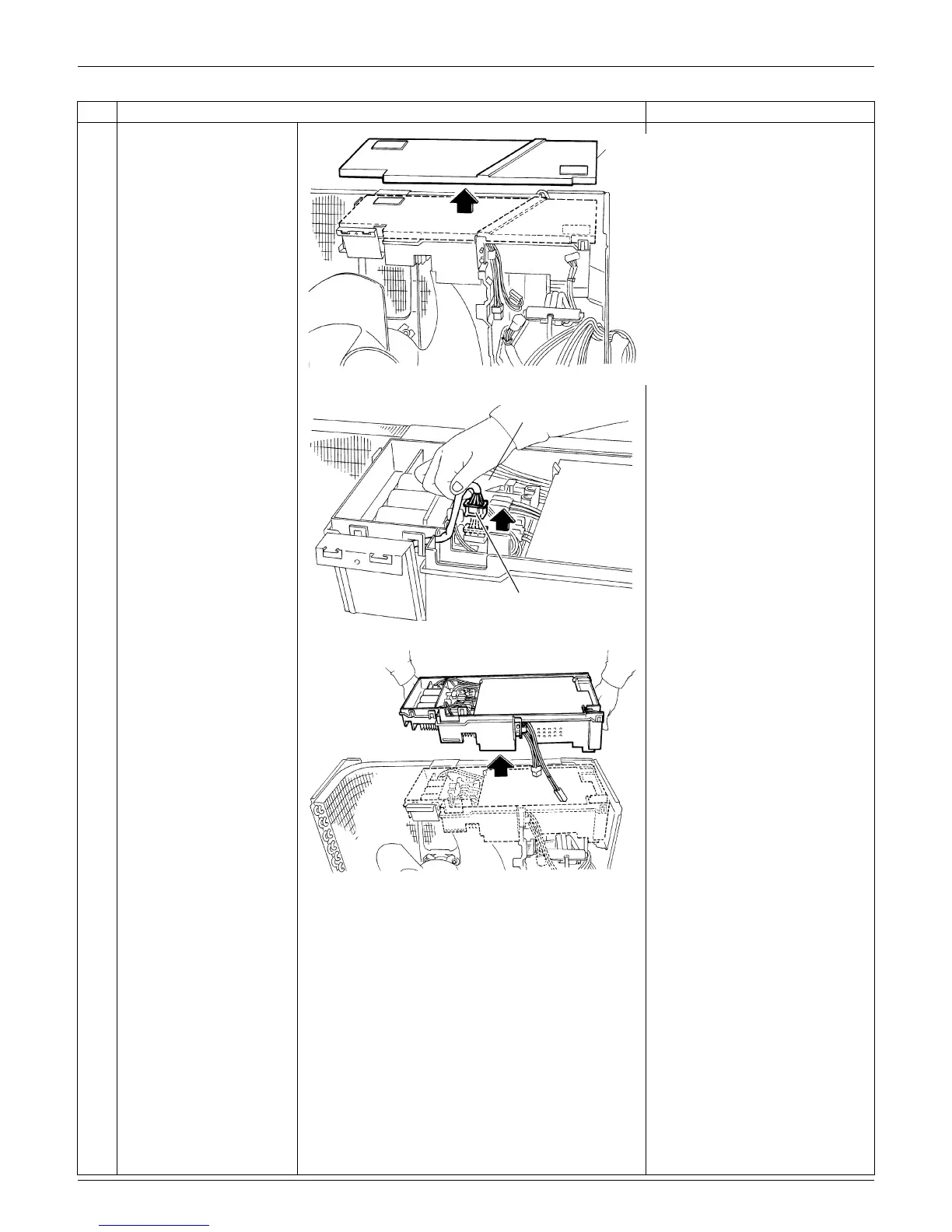

SiUS12-928_B Outdoor Unit: 2MXS18GVJU
Removal Procedure 208
5
Remove the drip proof
cover.
6
Disconnect the connector
for the fan motor [S70]
from the inverter PCB
(MID2).
Release the fan motor
lead wire from the hooks.
7
Remove the electrical
box.
Step
Procedure Points
(R2174)
Drip proof cover
Inverter PCB (MID2)
[S70]
(R2175)
(R2176)
