Daikin SUPER MULTI NX G Series Service Manual

Outdoor Unit: 3MXS24JVJU, 4MXS32GVJU SiUS12-928_B

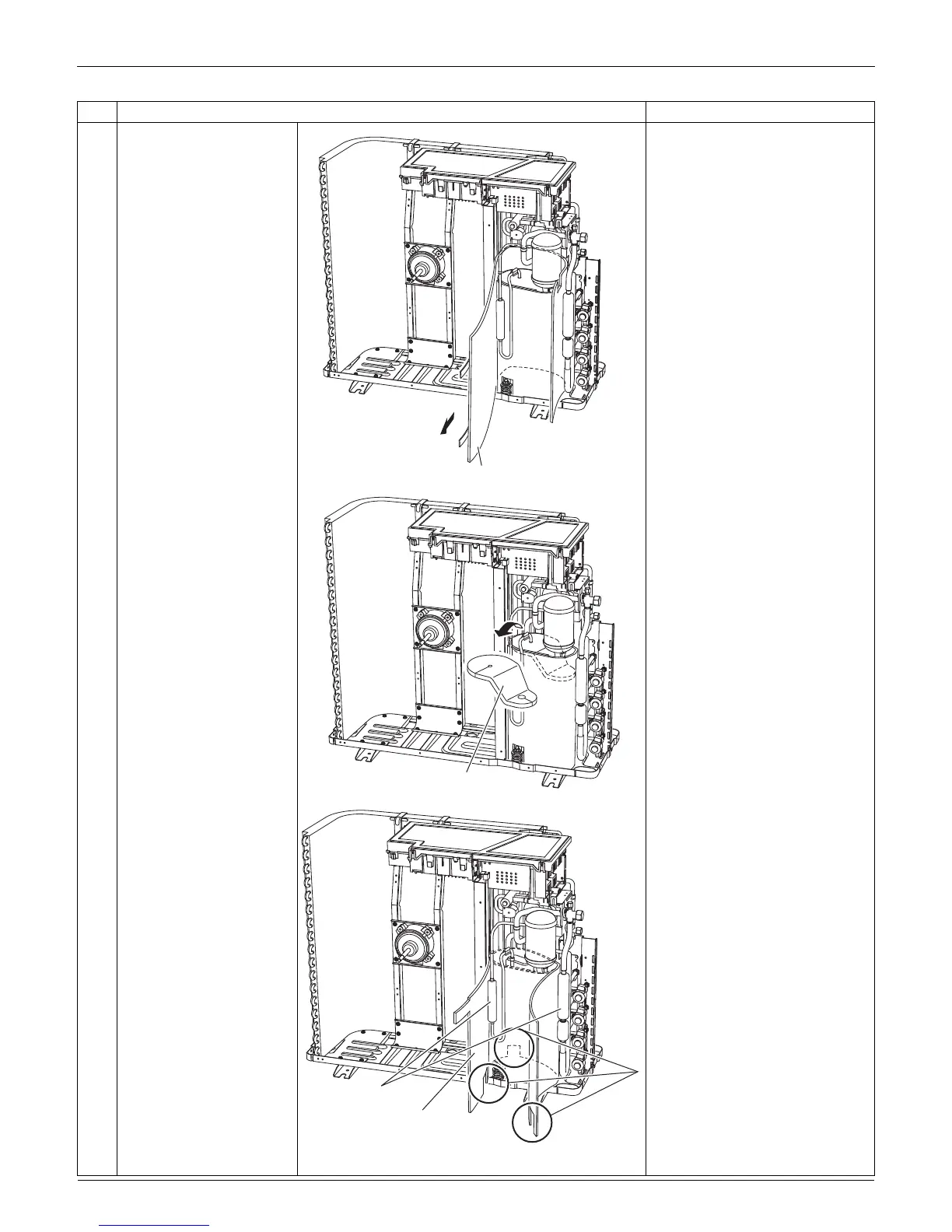

251 Removal Procedure
4
Remove the sound
blanket (outer).
 The sound blanket is fragile.
Carefully pass the discharge
pipe through it.
5
Remove the sound
blanket (top inner).
 The sound blanket is fragile.
Carefully pass the discharge
pipe through it.
6
Open the sound blanket
(inner) and pass it through
the part of the mufflers.
 The sound blanket is fragile.
Be careful of the notches of
the compressor mount (3
locations).
Step
Procedure Points
(R10436)
Sound blanket (outer)
(R10437)
Sound blanket (top inner)
(R10438)
Mufflers
Sound blanket
(inner)
