DANA BREVINI K Series User Manual

STANDARD TYPE GEARBOX PARTS LISTS
23Dana IncorporatedIMM-0018EN - Installation and Maintenance Manual
4.2.5 TYPE: 04
NOTE:

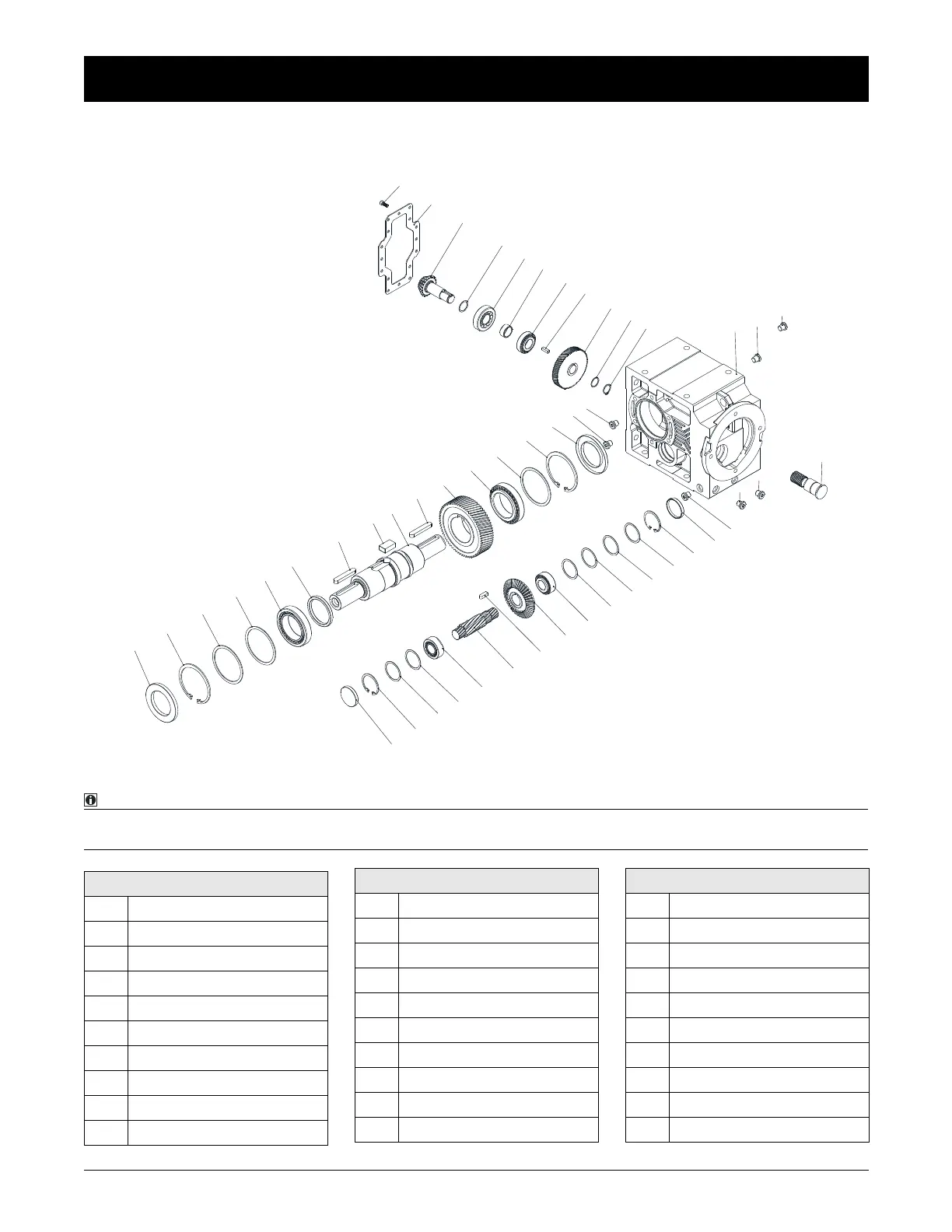

Standard types basic part diagram.
Parts may differ for special applications.
15
16
17
17
18
23
22
21
20
19
18
17
16
15
2
2
14
13
12
11
10
9
8
7
6
5
4
2
2
3
2
2
1
22
24
25
26
26
27
28
29
30
27
26
26
26
26
25
24
2
Standard Part List
1Pinion
2Plug
3Housing
4Circlip
5 Shim Ring
6 Gear
7Key
8Bearing
9Spacer
10 Bearing
11 Shim Ring
12 Pinion Shaft
13 Cover Plate
14 Bolt
15 Oil Seal
16 Circlip
17 Shim Ring
18 Bearing
19 Gear
20 Output Shaft
Standard Part List
21 Key
22 Key
23 Shim Ring
24 Closing Cap
25 Circlip
26 Shim Ring
27 Bearing
28 Pinion Shaft
29 Key
30 Gear
Standard Part List
