Installation Instructions
NOTE:
• Unplug the power cord.
• To reduce the risk of injury, this is a two-person job.
• After caster installation, the unit must stand upright for 6 hours before being plugged in. This will allow the internal
fl uids to settle back into place. Failure to do this may result in system malfunction.
1. Lay the unit down on a towel or cloth, this is to protect the back of the unit.
2. Unscrew the levelling leg / feet to remove them. A hand tool may be needed to unscrew the levelling leg / feet. See
fi gure one.
3. Match the screw holes on the bottom of the unit with the pre-drilled holes on the casters. Use a screwdriver to screw
the casters in place. Note: The two casters with brakes should be installed at the front of the unit for easy
access. See fi gure 2.
4. Once the casters are secured in place, carefully put the unit upright.
5. After six hours of the unit sitting upright, plug the unit in.

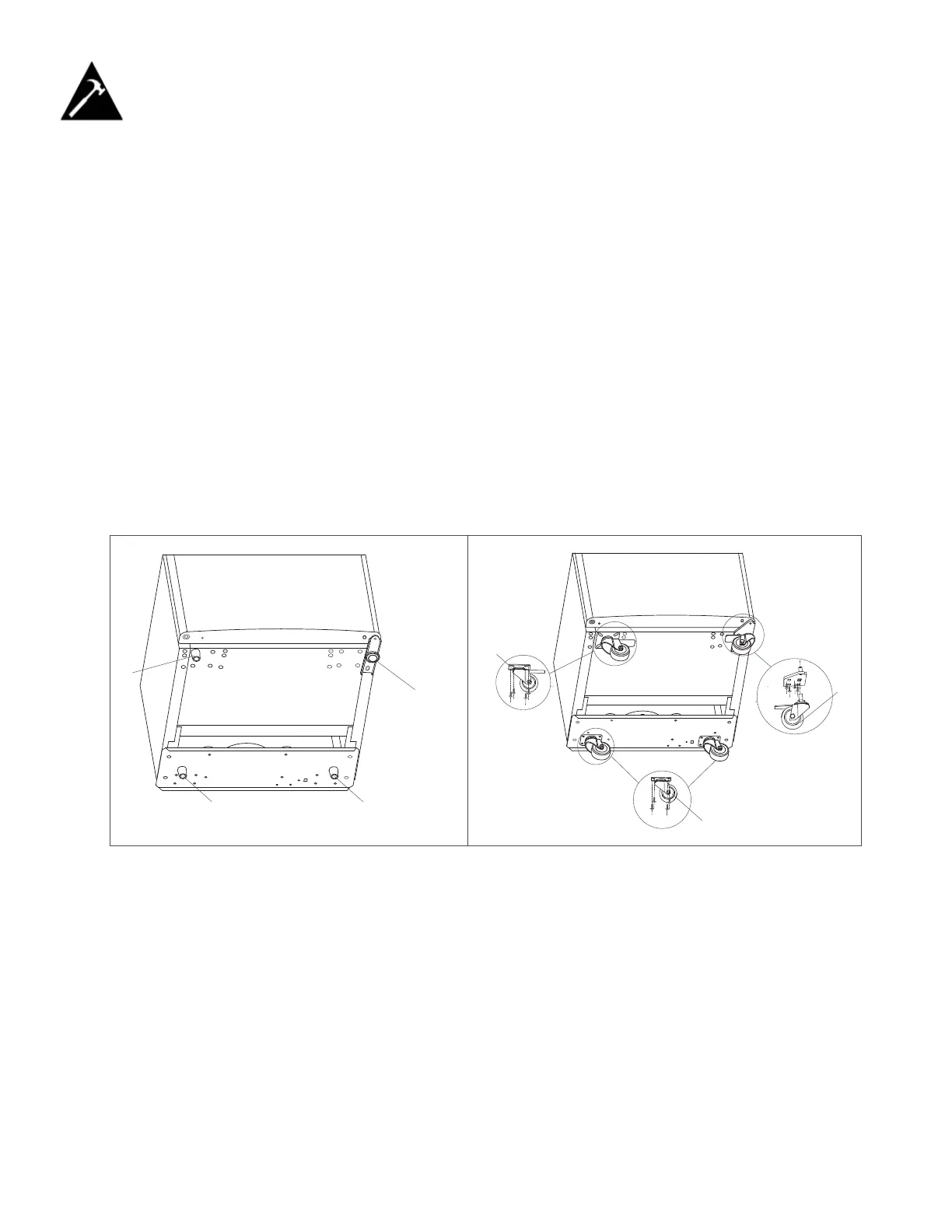

CASTER INSTALLATION
1
3
2
1
Fig. 1
4
4
4
Fig. 2
Bottom
1. Front Caster with Brake (2)
2. Back Casters (2)
3. Levelling Leg in Hinge Assembly
4. Unit Feet (3)
To Next Page
