Danby DFF100C1BSLDB User Manual

Installation Instructions

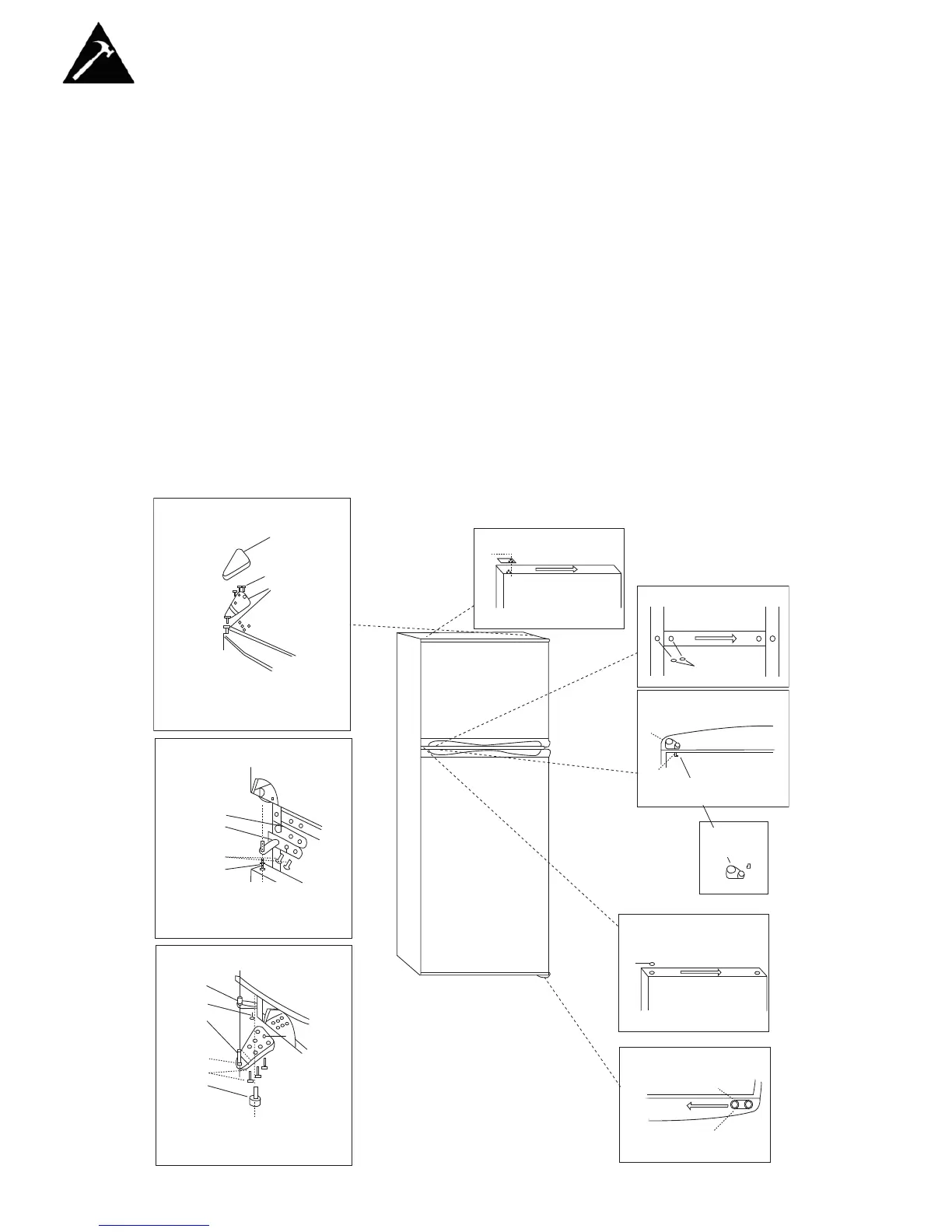

DOOR REVERSAL INSTRUCTIONS
NOTE: The left door and the right door stop of the freezer door are different. They can’t replace each other.
DOOR AND HINGE REPLACEMENT
1. Replace the parts for the bottom hinge as shown (see Bottom Hinge graphic). Tighten screws. Replace the refriger-
ator door.
NOTE: Provide additional support for the doors while the hinges are being moved. Do not depend on the door mag-
nets to hold the doors in place while you are working.
2. Assemble the parts for the center hinge as shown and tighten all screws (see Center Hinge graphic). Replace the
freezer door.
3. Assemble the parts for the top hinge as shown (see Top Hinge graphic). Do not tighten screws completely.
4. Line up the doors so that the bottom of the freezer door aligns evenly with the top of the refrigerator door. Tighten
all screws.
FINAL STEPS
1. Check all holes to make sure that hole plugs and screws are in place.
2. Plug in refrigerator or reconnect power.
3. Reset the controls (see “ temperature control” section).
4. Return all removable door parts to doors and food to product.
3
Top Hinge
1. Top hinge Cover
2. Top Hinge Spindle
3. Top Hinge
1
2
3
1
1.Cover Of Upper Hinge Hole
2
1.Hole Plugs
3
1
1
1
2
1.Left Door Stop
2.Door Stop Screw
Accessory
Bag
4
1
1.Door Hinge Hole Plug
5
1
2
1.Door Stop
2.Door Stop Screw
Bottom Hinge
1.Door Stop
2.Door Stop Screw
3.Door Stop Pole
4.Bottom Hinge
5.Bottom Hinge Screws
6.Adjustable Foot
1
2
3
4
5
6
Center Hinge
1.Center Hinge Spacer
2.Center Hinge
3.Screws
4.Bush
1
2
3
4
