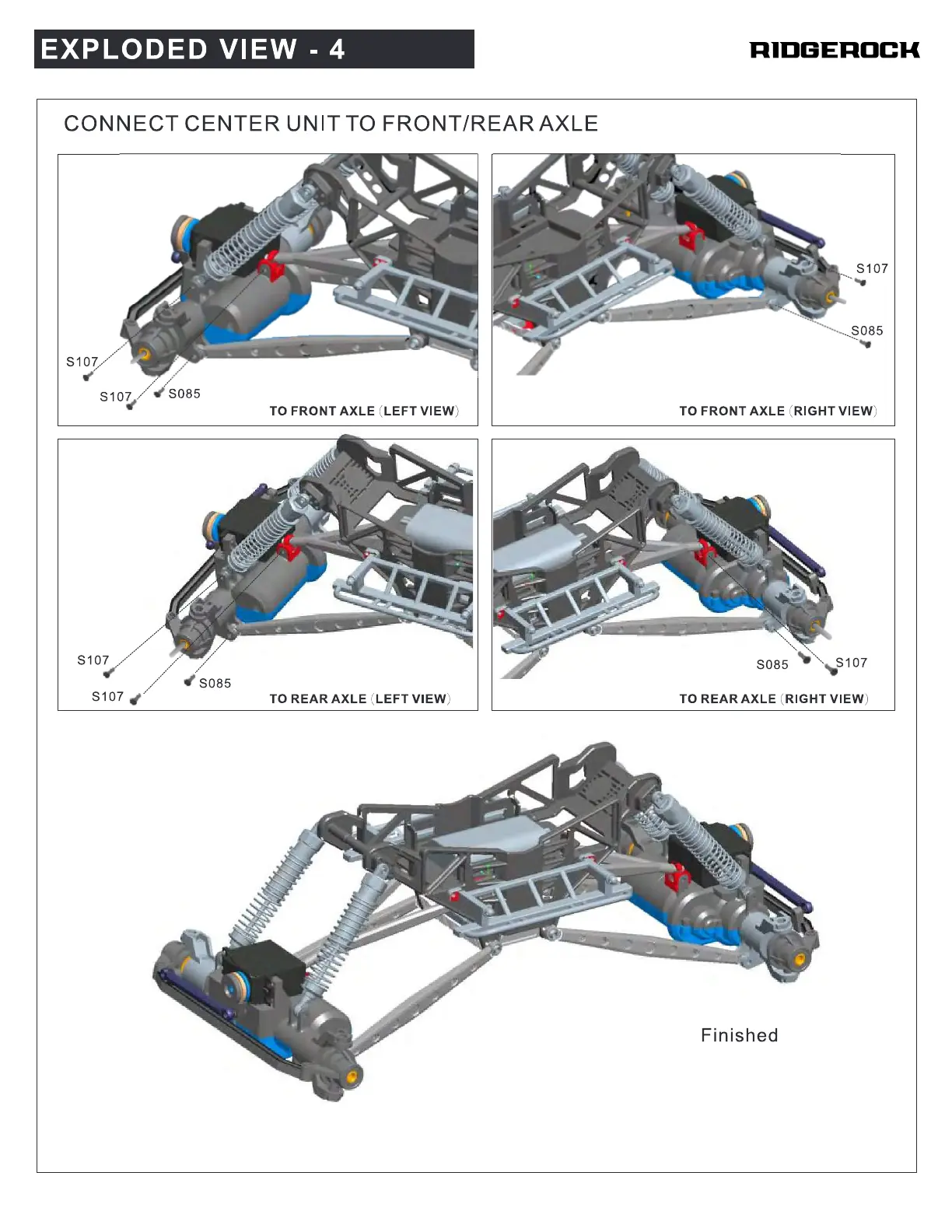

EXPLODED VIEW • 4
CONNECT CENTER UNIT TO FRONT/REARAXLE
S107
S107
S107
"085
TO FRONT AXLE LEFT VIEW
S085
TO REAR AXLE LEFT VIEW
RIDGEAOCK
S107
S085
TO FRONT AXLE RIGHT VIEW
S107
S085
TO REAR AXLE RIGHT VIEW
Finished
