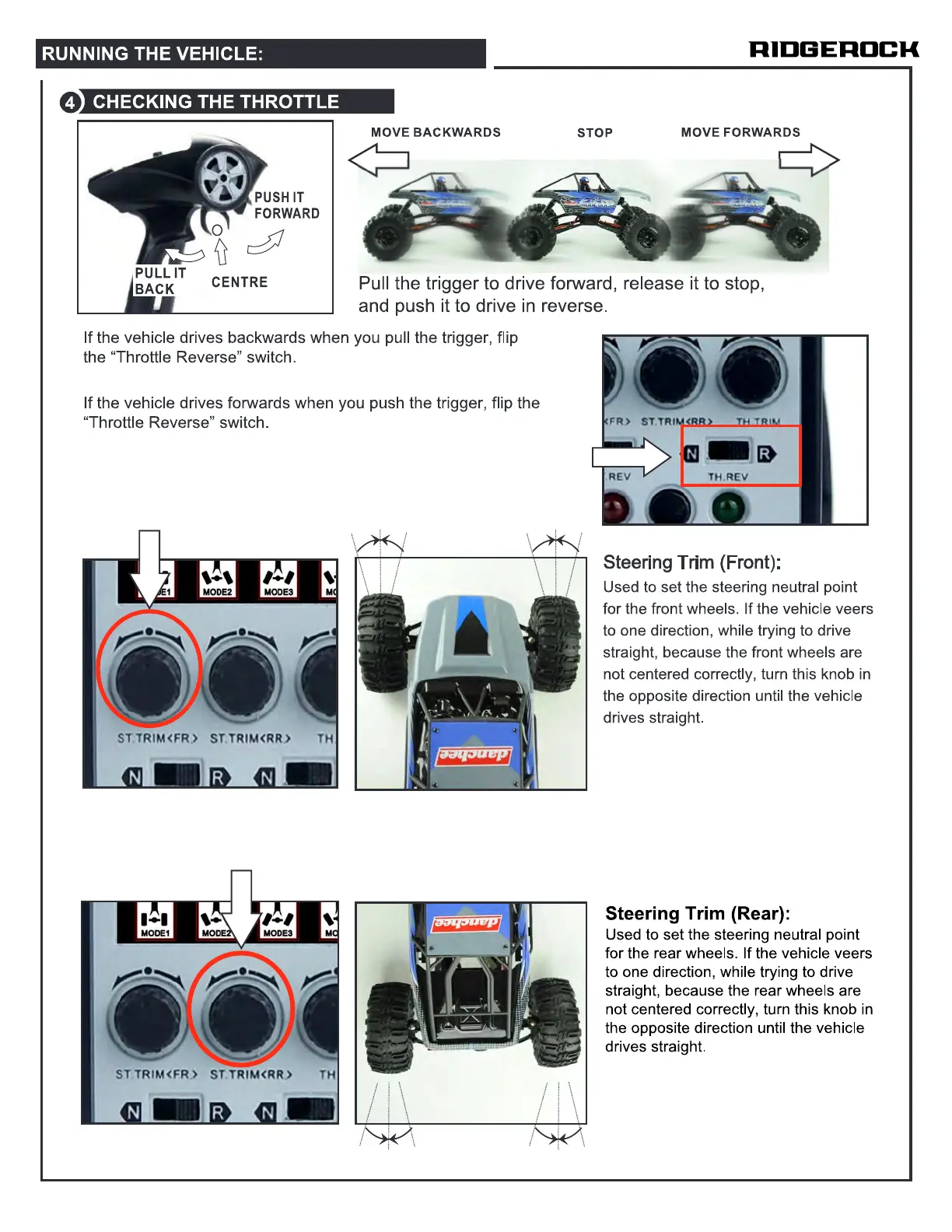

RUNNING THE VEHICLE:
4 CHECKING THE THROTTLE
PULL IT
CENTRE
BACK
MOVE BACKWARDS
RIDGEAOCK
STOP
MOVE FORWARDS
Pull the trigger to drive forward, release it to stop,
and push it to drive in reverse.
If the vehicle drives backwards when you pull the trigger, flip
the "Throttle Reverse" switch.
If the vehicle drives forwards when you push the trigger, flip the
"Throttle Reverse" switch
STYR'
.REV TH REV
MODEI MODE3
Steering Trim (Front):
Used to set the steering neutral point
for the front wheels. If the vehicle veers
to one direction, while trying to drive
straight, because the front wheels are
not centered correctly, turn this knob in
the opposite direction until the vehicle
drives straight.
Steering Trim (Rear):
Used to set the steering neutral point
for the rear wheels. If the vehicle veers
to one direction, while trying to drive
straight, because the rear wheels are
not centered correctly, turn this knob in
the opposite direction until the vehicle
drives straight.
