Danfoss PVE 7 Series User Manual

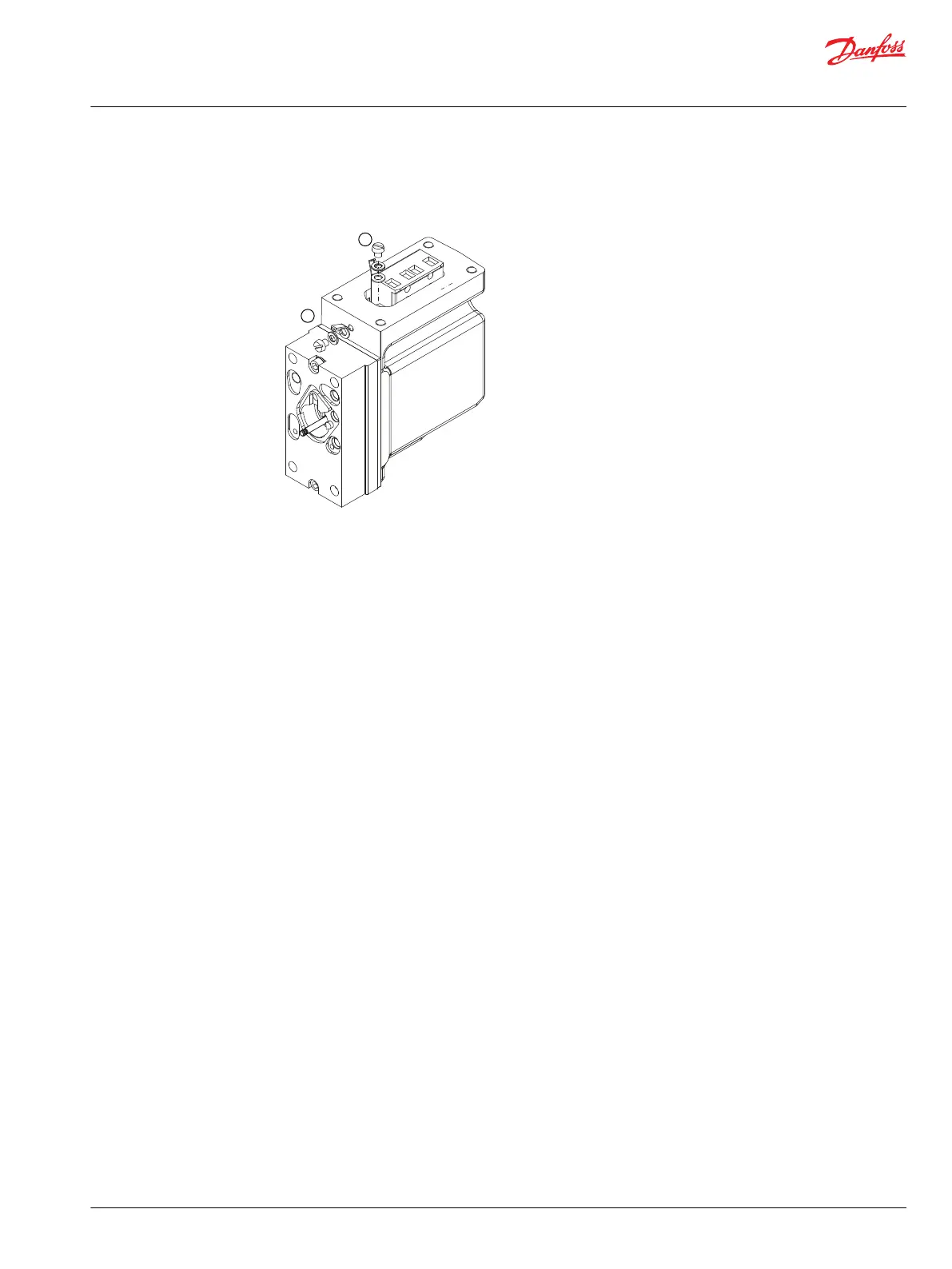

Earthing terminals
4-pin earthing terminal
1
2
1. Internal earthing terminals
2. External earthing terminals
Internal earth-connection
Internal earthing terminal enables a shield to be connected to chassis.
1. Remove the jacket from the shield at a length that allows mounting the cable shoe into the threaded
hole next to the connector.
2. Crimp or solder the shield into the cable shoe.
3. Attach the cable shoe to the chassis via the M4 screw and the self-locking ring.
4. Tighten the screws to the specified torque 5 ± 2 N•m.
Technical Information
Electrohydraulic Actuators PVE-EX
Internal and external earth-connection
©
Danfoss | October 2017 BC00000393en-US0102 | 25

Danfoss PVE 7 Series Specifications

General

Series	PVE 7
Protection Class	IP67
Housing Material	Aluminum
Supply Voltage	24 V DC
Input Signal	0-10 V, 4-20 mA
Output Signal	PWM
Communication Interface	CAN bus
Storage Temperature	-40°C to +85°C
Weight	200 g
Operating Temperature	-40 to +70°C (-40 to +158°F)
