SPECIAL WARNINGS FOR 12-24 V DC REFRIGERATORS
INSTALLATION
When installing the refrigerator in caravans, campers, motor homes etc., fit air vents
communicating directly with the outside (see Fig. 6).
For installation purposes, some portable refrigerator models have a bracket to fix the
refrigerator in place (see Fig. 7).
ELECTRICAL CONNECTION
For refrigerators powered at 12 or 24 V DC, we recommend connecting the systems
directly to the battery, following the corresponding instructions for the Danfoss
compressor supplied (see p.32 and p. 33).
Connecting power to the internal light on 12/24V DC refrigerators with remote
motor:

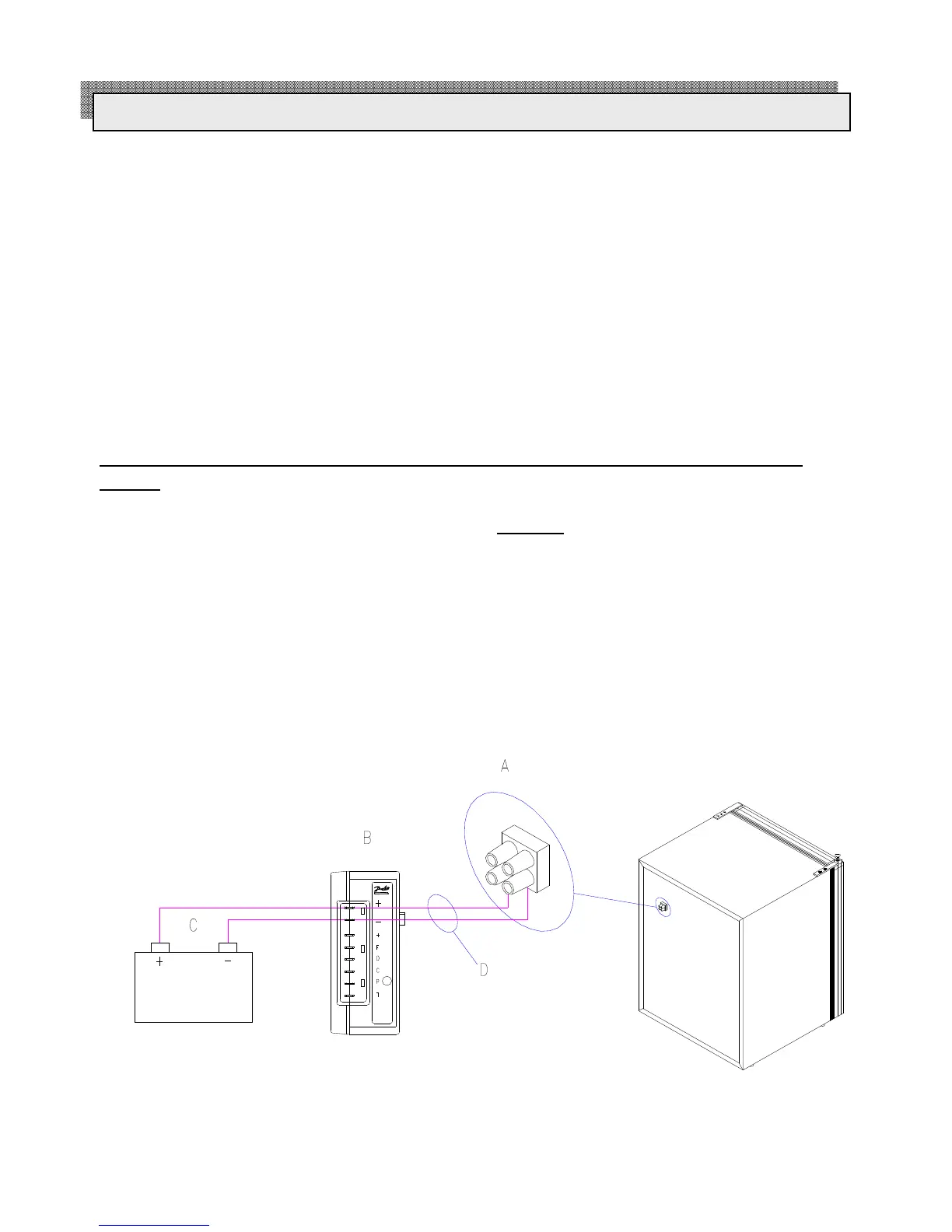

 Connect the optional cable “D” (Code R10777) to the terminal board on the back
of the refrigerator and to the compressor control unit. (The terminal board “A” is
not polarised and therefore, the connection can be made without distinction).
 Connect the battery to the compressor control unit, taking care to respect
polarity!
 Terminal board for internal light connection.
 Compressor control unit.
 Battery.
 Internal light power cable (supplied).
