Wiring
• Digital Inputs
– Multiple Starts from One command
– Common connected, terminal 20, on each unit
– Maximum of 200mV

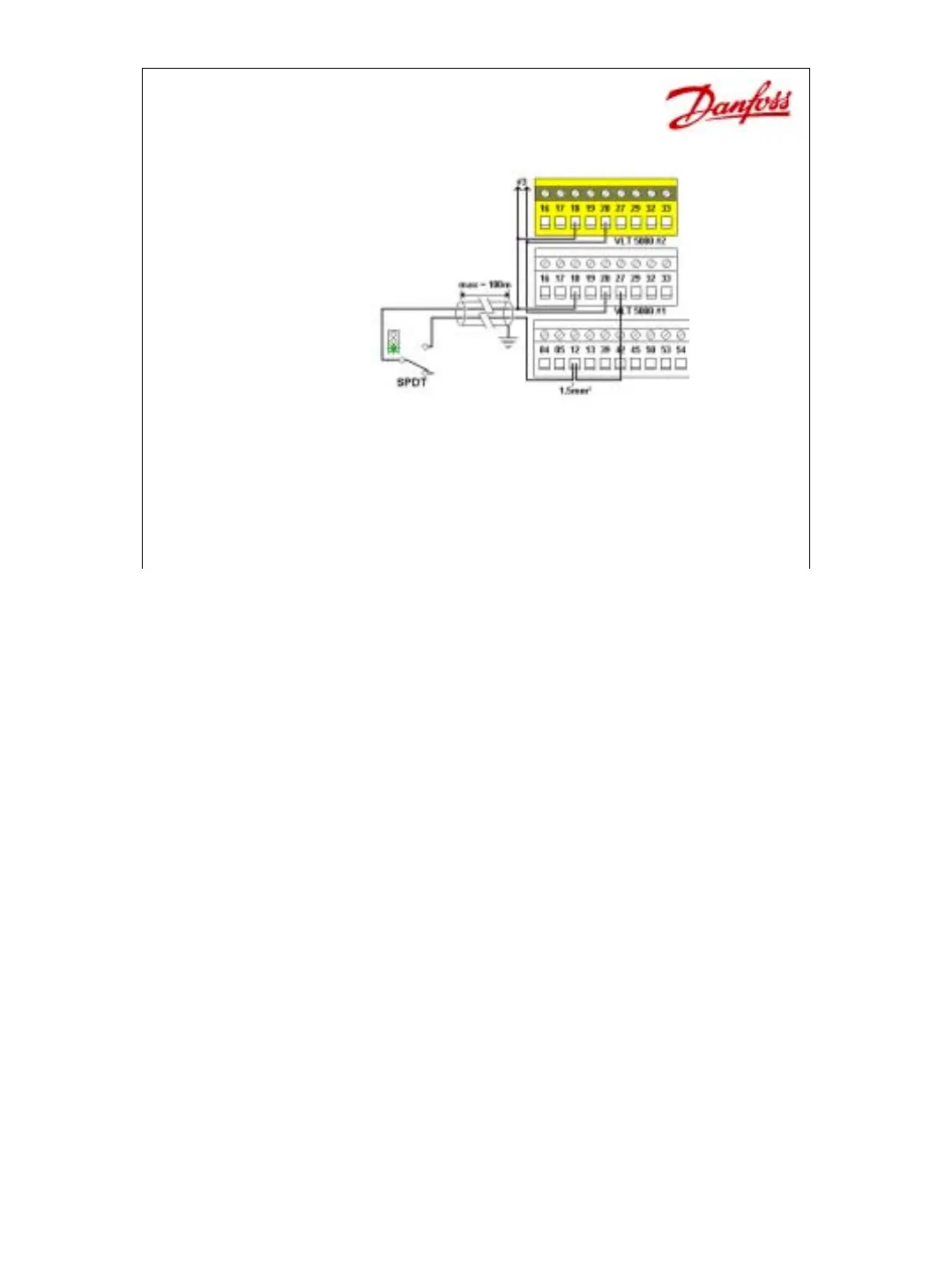

In the example above, one switch is used to start multiple drives. The +24Vdc from the first
drive is being sent to the other drives. Notice that a wire most be connected between all the
Digital Input commons, terminal 20. There is a maximum of 200mV coming from the power
supply of the first drive, which limits the number of drives that may be started.
