Pre-Installation Check
• Record motor data information
– Motor Power
– Motor Voltage
– Motor Frequency
– Motor Current (FLA)
– Motor Speed (RPM)

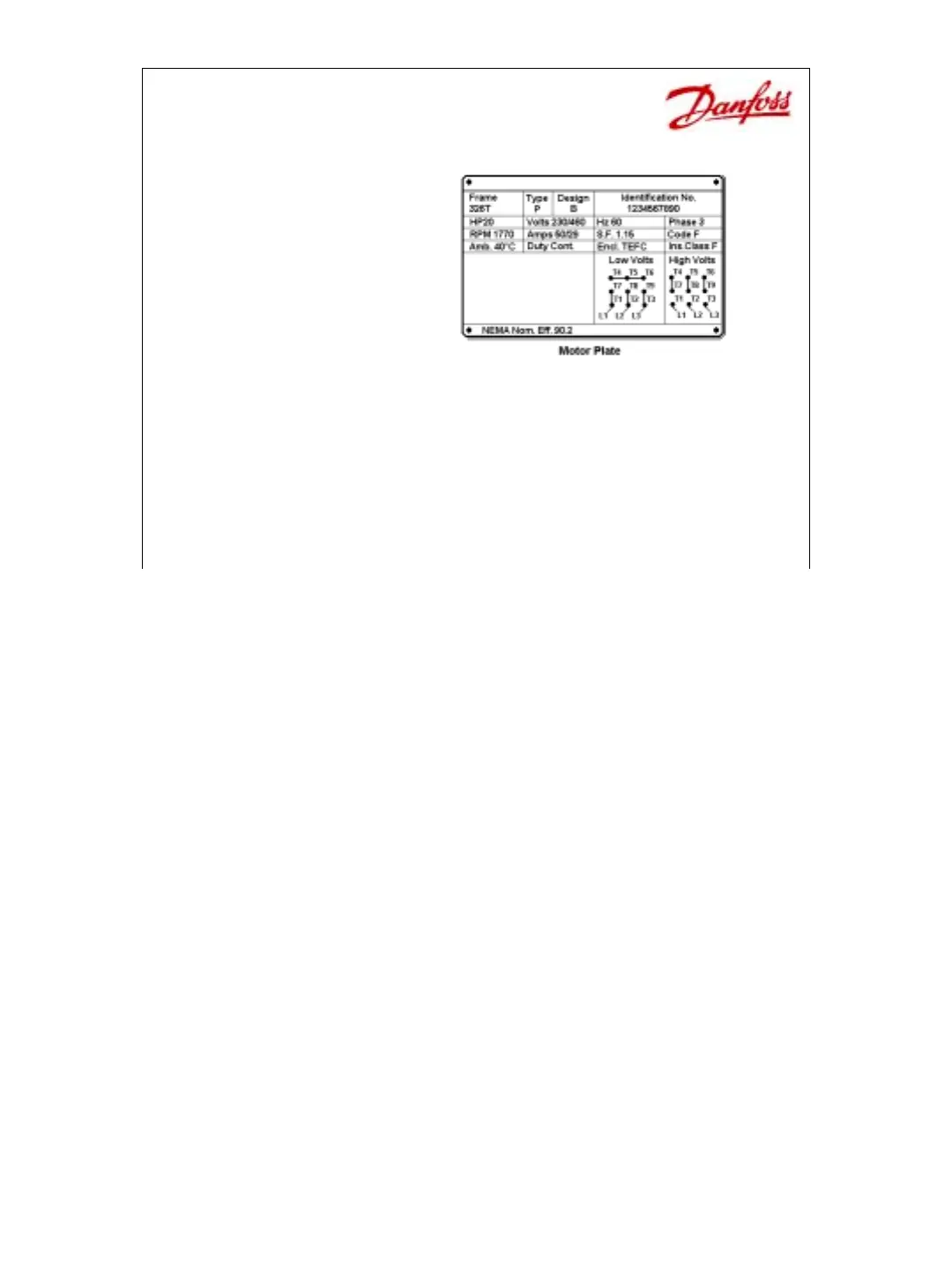

Write down the motor nameplate information. This will be important later during
programming. A conversion between HP and kW must be calculated 1Hp = 0.75kW.
In the example 20Hp = 15kW.
Motor Power = ___________________ kW
Motor Voltage = __________________ Vac
Motor Frequency = 50Hz 60Hz
Motor Current = __________________ Amps
Motor Speed = ___________________RPM
