Danfoss VLT FC 100 Design Guide

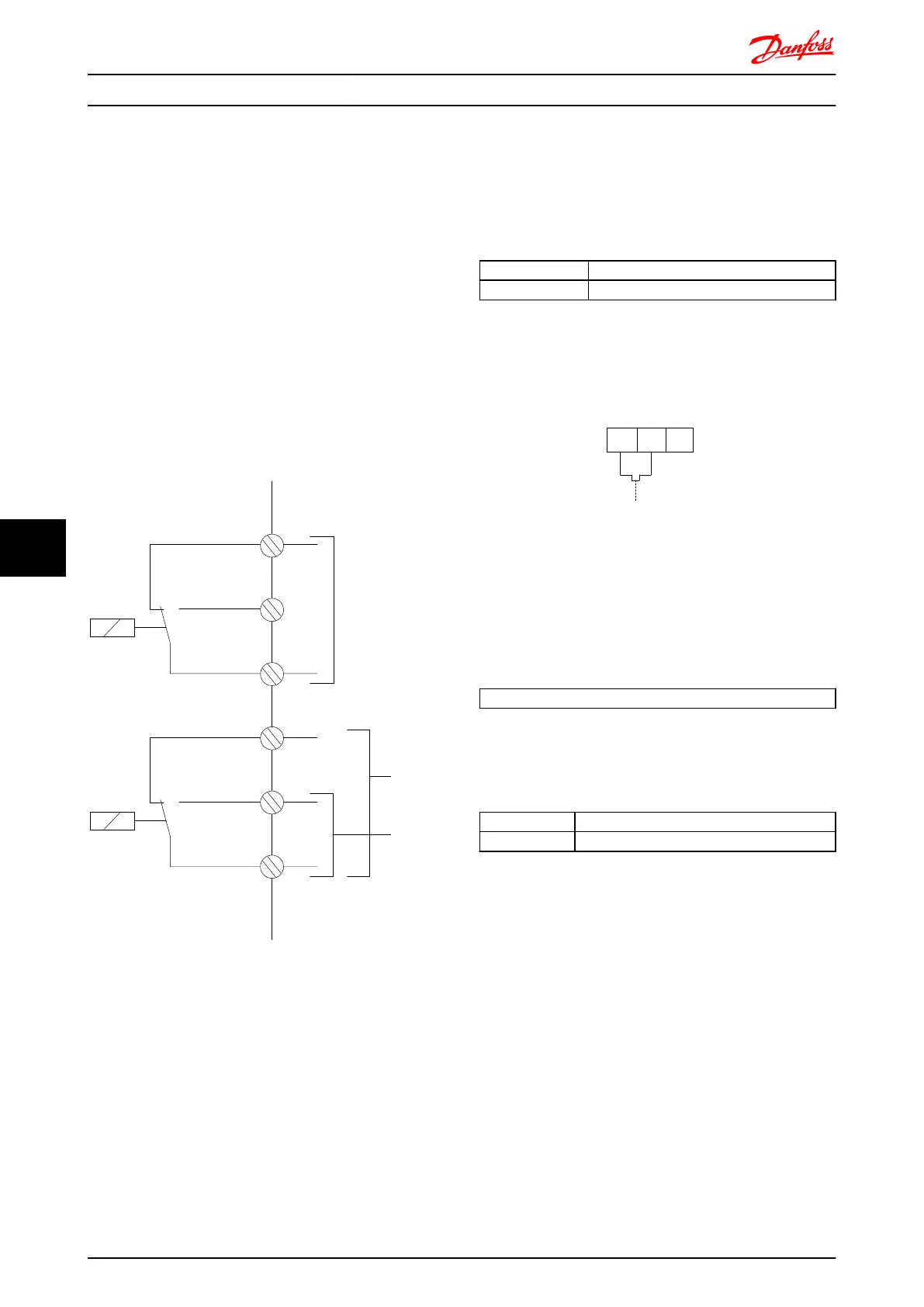

8.6.9 Relay Output
Relay 1
•
Terminal 01: common
•
Terminal 02: normal open 240V AC
•
Terminal 03: normal closed 240V AC
Relay 2 (Not FC 301)
•
Terminal 04: common
•
Terminal 05: normal open 400V AC
•
Terminal 06: normal closed 240V AC
Relay 1 and relay 2 are programmed in 5-40 Function Relay,
5-41 On Delay, Relay, and 5-42 Off Delay, Relay.
Additional relay outputs by using option module MCB 105.
relay1
relay2
03
02
240Vac, 2A
240Vac, 2A
400Vac, 2A
01
06
05
04
130BA047.10
8.6.10
Brake Resistor Temperature Switch
Frame size D-E-F
Torque: 0.5-0.6 Nm (5 in-lbs)
Screw size: M3
This input can be used to monitor the temperature of an
externally connected brake resistor. If the input between
104 and 106 is established, the frequency converter will
trip on warning / alarm 27, “Brake IGBT”. If the connection
is closed between 104 and 105, the frequency converter
will trip on warning / alarm 27, “Brake IGBT”.
A KLIXON switch must be installed that is `normally
closed'. If this function is not used, 106 and 104 must be
short-circuited together.
Normally closed: 104-106 (factory installed jumper)
Normally open: 104-105
Terminal No. Function
106, 104, 105 Brake resistor temperature switch.
NOTE
If the temperature of the brake resistor gets too high and
the thermal switch drops out, the frequency converter will
stop braking. The motor will start coasting.
175ZA877.10
106
NC
104
C
105
NO
8.7 Additional Connections
8.7.1 DC Bus Connection
The DC bus terminal is used for DC back-up, with the
intermediate circuit being supplied from an external
source.
Terminal numbers used:
88, 89
Please contact Danfoss if you require further information.
8.7.2
Load Sharing
Terminal No. Function
88, 89 Loadsharing
The connection cable must be screened and the max.
length from the frequency converter to the DC bar is
limited to 25 metres (82 feet).
Load sharing enables linking of the DC intermediate
circuits of several frequency converters.
Electrical Installation FC 300 Design Guide
218 MG.33.BD.02 - VLT
®
is a registered Danfoss trademark
88
