PORTABLE COLL-O-CRIMP® Model T-400-1 Set up and operating instructions
11 | PORTABLE COLL-O-CRIMP® Model T-400-1 Set up and operating instructions | 2022.10.
AQ430855066686en-000101

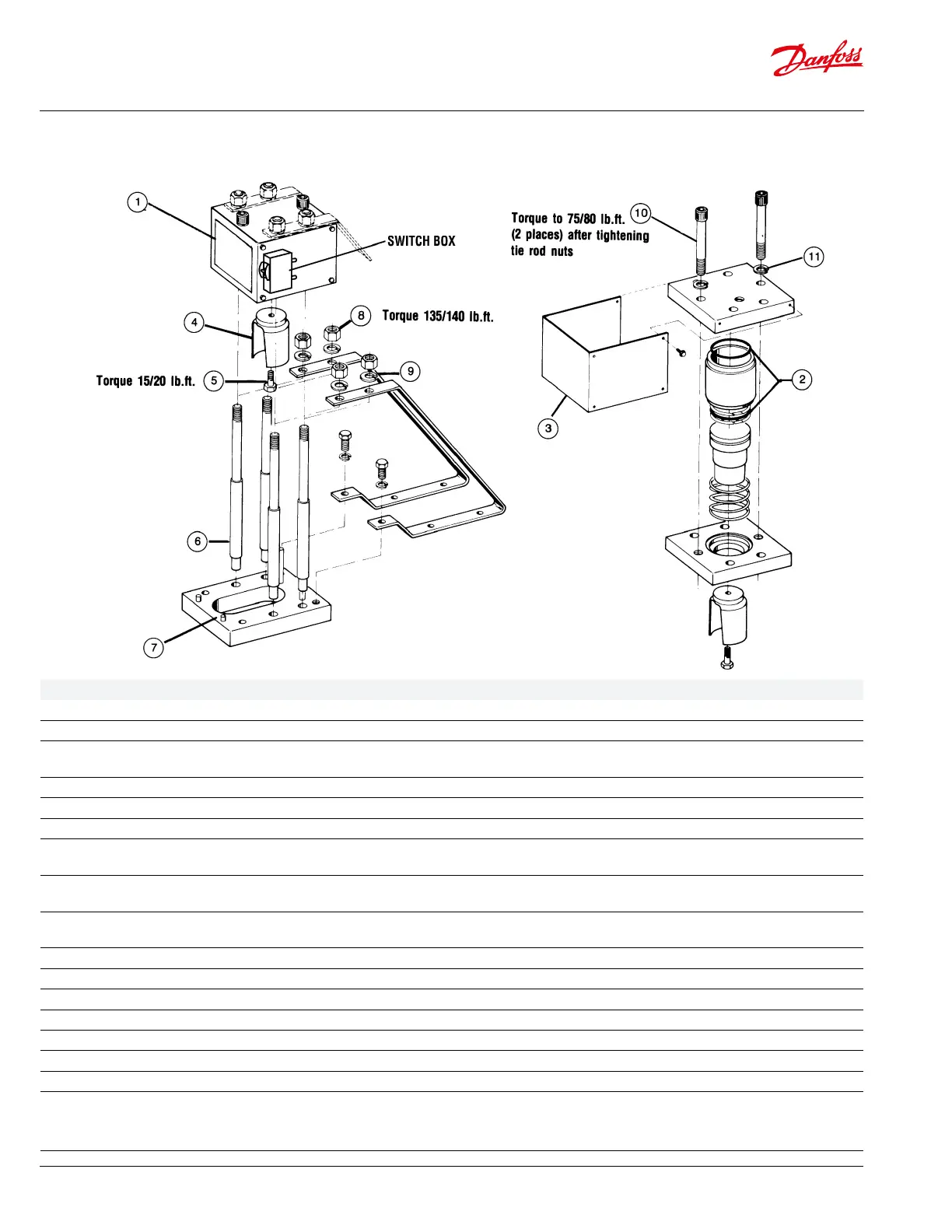

Repair and Replacement Items
Item # Part Number Description
Not Shown T-400-CG Collet Feeler Gauge
1 T-400-D Spacer Ring Selector Decal
2 T-400-K1 Seal replacement kit for T-400-1 presses where the serial number ends with "04" or the
"C"
2 T-400-K* Seal replacement kit for T-400-1 presses other than above
3 T-400-S Replacement press shroud with decals
4 T-432-15 Pusher
Not Shown T- 40 0 -13 Replacement collet cage for 1-400 'U' series collet with a 'C' suffix. (1/4" & 3/8" sizes
only), (2 required for each collet).
Not Shown T-400 -14 Replacement collet cage for T-400 'U' series collet with a 'C' suffix (1/2"-1" sizes only), (2
required for each collet).
Not Shown T-400-90 Replacement collet cage for T-400 'E', and 757 'A' & 'E' series collet with a 'C' suffix (2
required for each collet).
5 120- 00428# Cap screw-Hex head
6 140-04705# Tie Rod
7 140-04704# Base Plate
8 120-10273# Nut
9 120-72274-13# Lockwasher
10 120-00424-10# Cap screw - socket head
11 120-72275-13# Lockwasher
*Contents -
0-ring upper cylinder (1 req’d) #Special order item
T-Ring (1 req’d)
Back-up rings (2 req’d)
