FLS 3D Manual Version 1 Daniamant A/S 12
The visual processor will require four mounting screws or bolts which will go through the mounting
brackets. We advise the use of stainless-steel fixings.

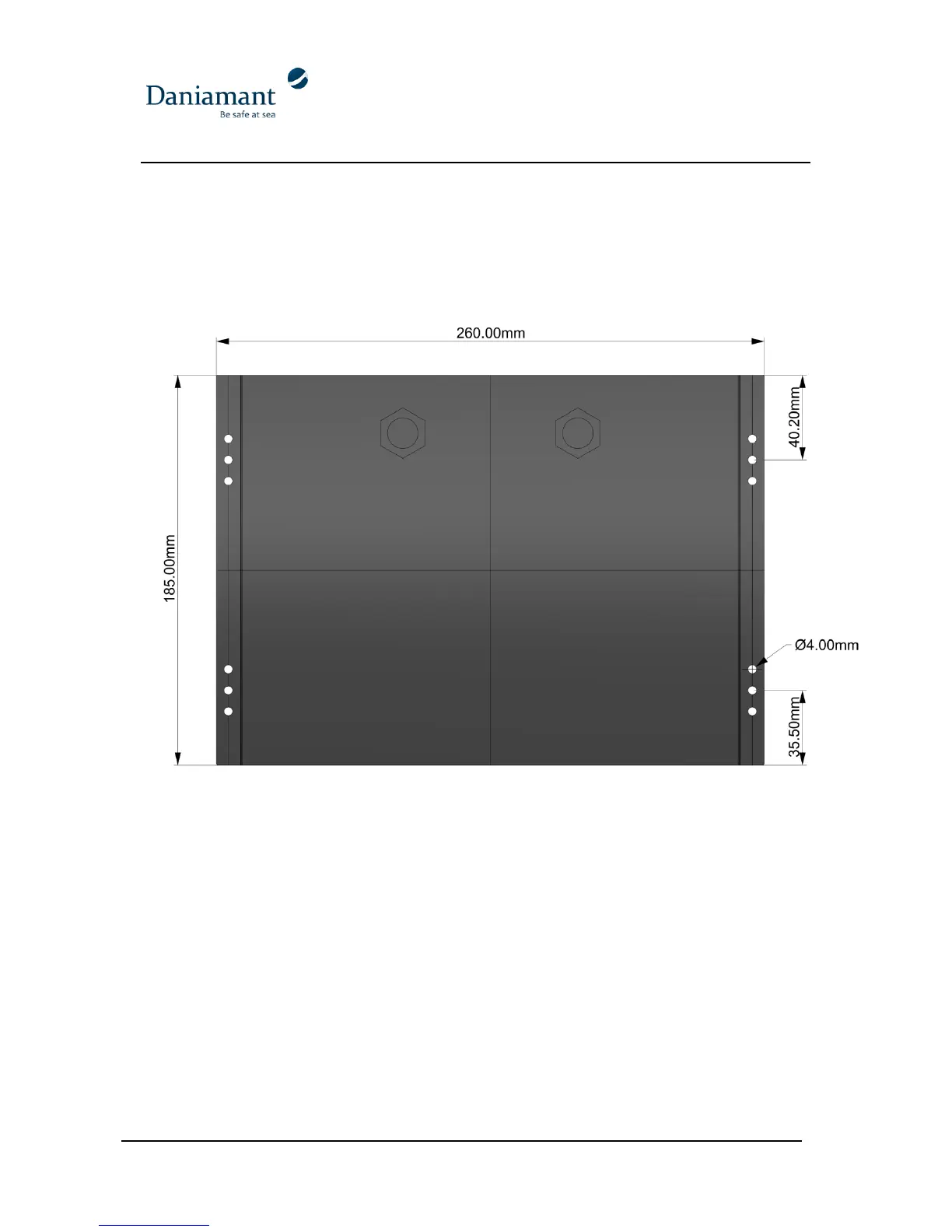

As shown on the diagram below the spacing for the fixings is 260 mm x 185mm.
