A. Built-in furniture
The built-in cabinet shall not have a rear wall behind the appliance.
Minimum installation height is 85cm.
Do not cover ventilation slots and air intake points.
600
560
+8
(45)
(45)
min
380
5 0
+3
5
10

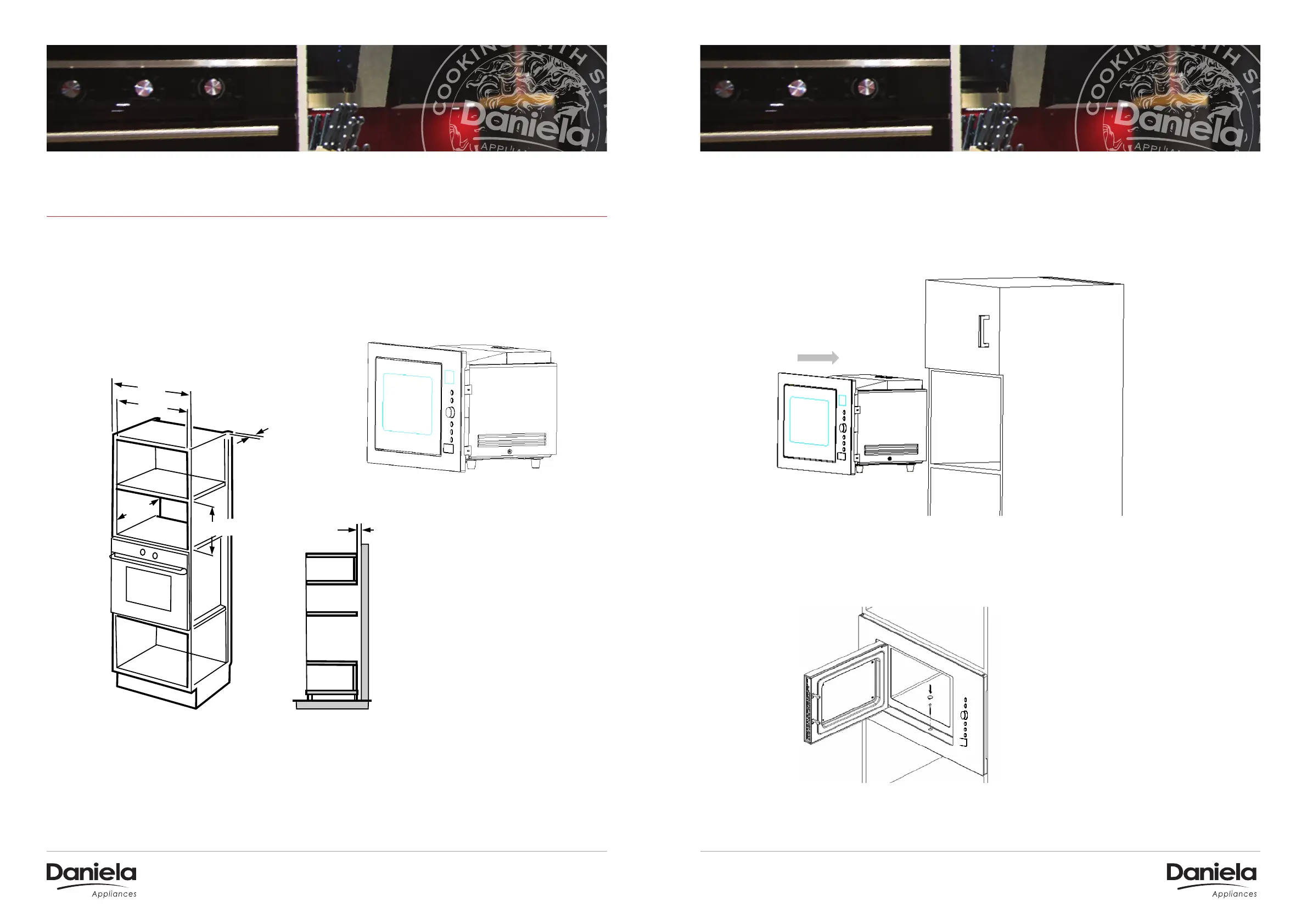

INSTALLATION INSTRUCTIONS
A. BUILT-IN FURNITURE
• The built-in cabinet shall not have a rear wall behind the appliance.
Minimum installation height is 85cm.
• Do not cover ventilation slots and air intake points.
B. INSTALL THE OVEN
• Do not trap or kink the power cord.
• Make sure that the oven is installed in the center of the cabinet.
• Open the door; fix the oven to the cabinet with SCREW at the INSTALLATION HOLE
of TRIM KIT. Then fix the TRIM-KIT PLASTIC COVER to the INSTALLATION HOLE.
B. Install the Oven
1.
Do not trap or kink the power cord.
Make sure that the oven is installed in the center of the cabinet.
2. Open the door; fix the oven to the cabinet with SCREW at the
INSTALLATION HOLE of TRIM KIT. Then fix the TRIM-KIT PLASTIC COVER
to the INSTALLATION HOLE.
Installation Hole
Screw
Trim-kit plastic cover
