SDI-202 Stereo Active DI Box
Warning
Every person involved with the installation, operation and maintenance of this system has to:
be qualified
follow the instructions of this manual
Description
The SDI-202 provides two independent high quality active interfaces, that lets you connect instrument,
line, or speaker level signals to a mixer or other balanced inputs. The instrument mode has a high
impedance input, which makes it possible to connect an instrument with a high output impedance, like
an electric guitar or acoustical guitars with a piezo-ceramic pick-up element. This mode also allows you
to connect electric devices with an unbalanced output like a keyboard or Dj mixer. The RCA inputs are
ideal for this kind of setup. It also has a speaker mode, which allows you to connect guitar amplifiers
direct with the SDI-202. The SDI-202 has a very clean and neutral sound with a wide variety of signal
sources and over long signal runs in high noise environments. The SDI-202 will provide an even frequency
response on any input signal connected, with the benefit of cancellation of interference, hum and buzz.
Jack & RCA inputs
9V power supply ore 18-48V phantom power
Ground lift
Instrument & speaker inputs

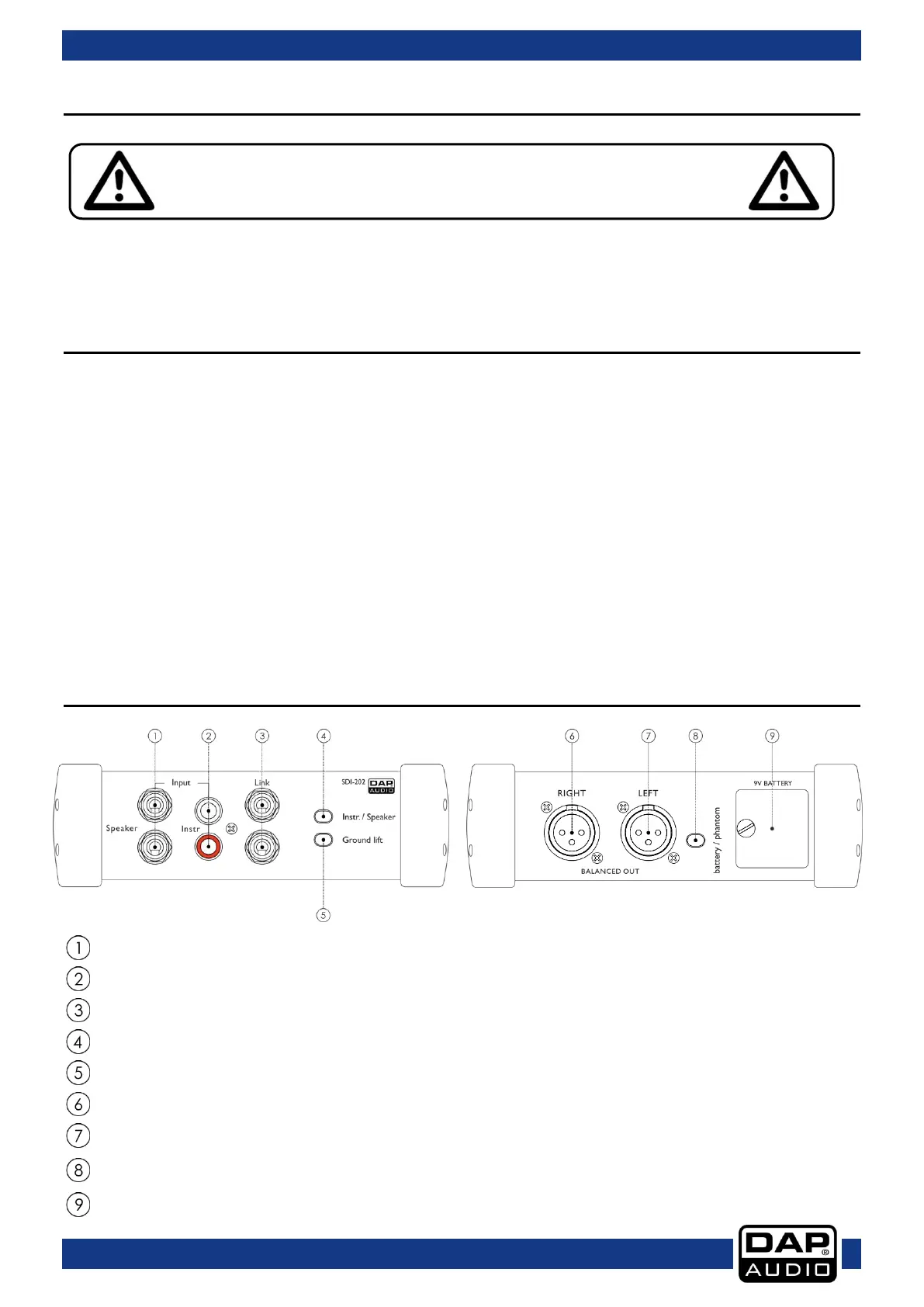

Overview
Unbalanced input 1/4" TRS sockets.
Unbalanced stereo RCA pin jacks.
Switch between speaker or unbalanced instrument input.
Balanced XLR output connector (R).
Balanced XLR output connector (L).
Switch between battery or phantom power.
(9V battery – LED blinks, +48V phantom power – LED is lit continuously)
CAUTION!
Keep this device away from rain and moisture!
