DAPC at30 - EXPLODED PARTS VIEW

September, 1999
Air Tools Manual 2 TAB:
Air Tool Breakdowns

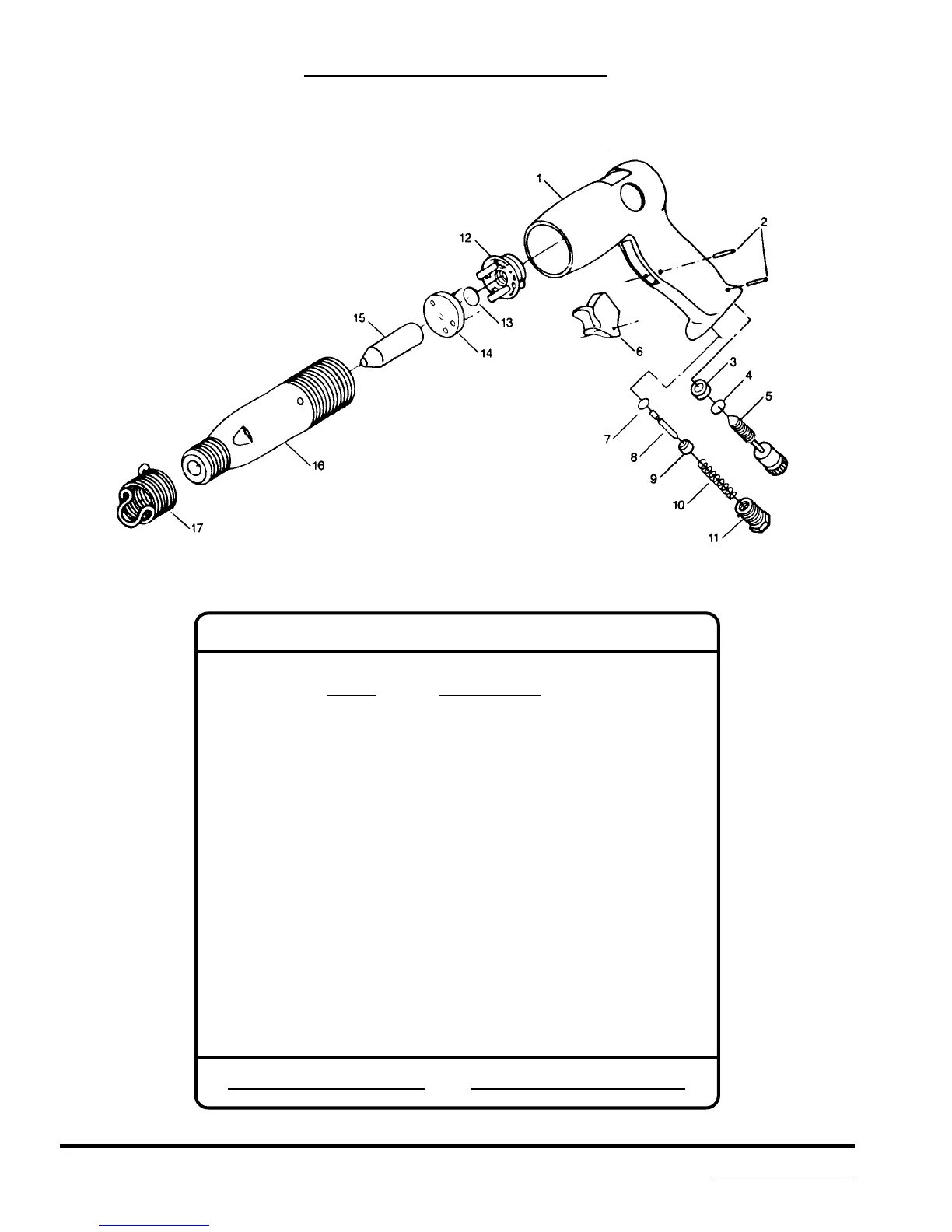

EXPLODED PARTS VIEW
Key # Description
1 Handle
2 Pin
3 Ball Seat
4 O-Ring
5 Regulator
6 Trigger
7 O-Ring
8 Pin
9 Pin Seat
10 Throttle Spring
11 Hose Adapter
12 Upper Valve Case
13 Valve Disc
14 Lower Valve Case
15 Piston
16 Cylinder
17 Quick Change Retainer
SERVICE PARTS ARE NOT AVAILABLE FOR THIS ITEM
ACP130 - 5pc. Chisel Set ACP120 - Chisel Springs (2)
