PASSAGE

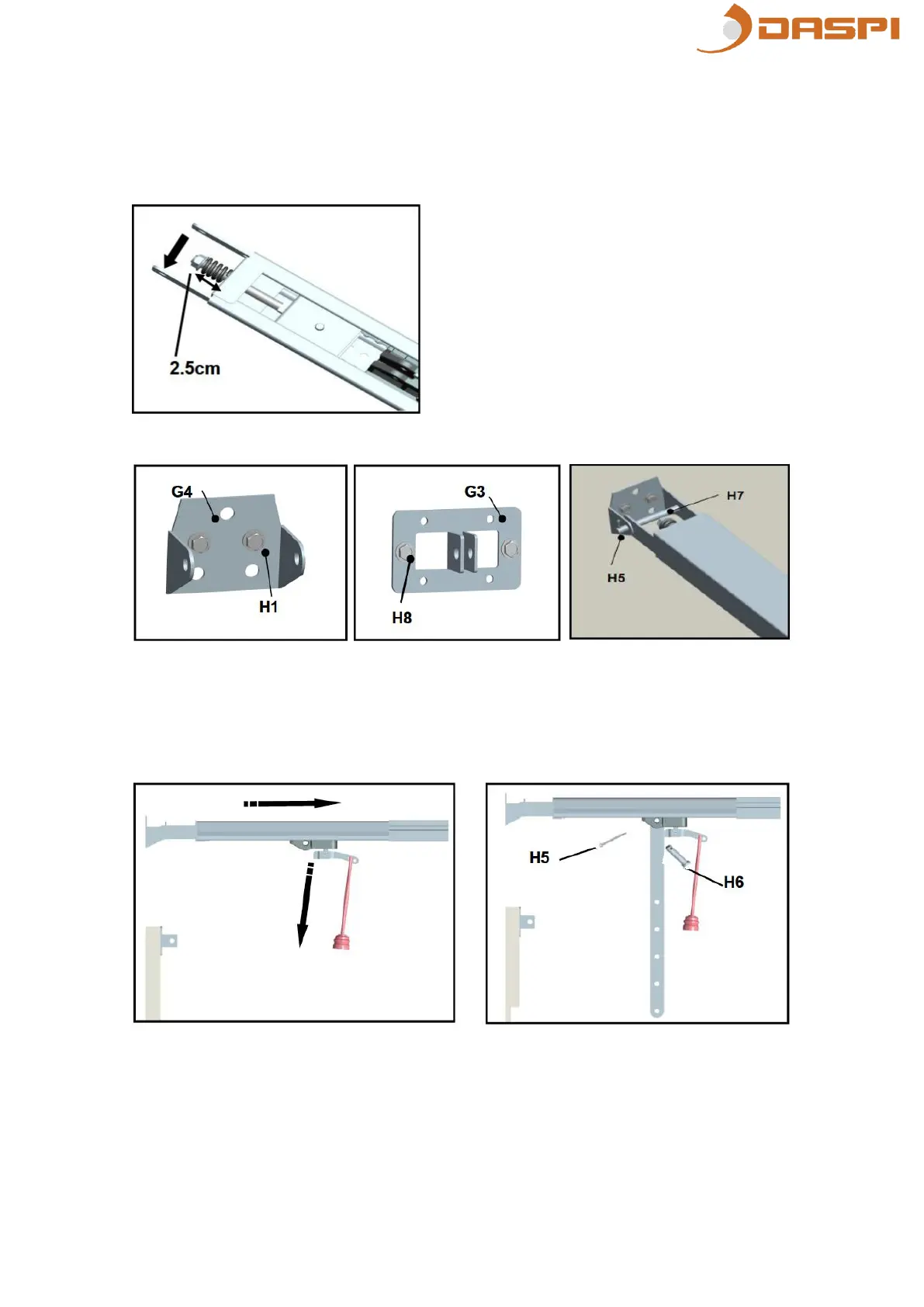

CHAIN ADJUSTMENT

INSTALLATION OF THE HEAD AND THE BRACKET OF THE DOOR

CONNECTION OF THE ARM OF THE DOOR TO THE RAIL

1. Close the door. Disconnect the rail by pulling the unlocking handle.

2. Fix the straight arm to the outside of the rail using the short pin (H6). Secure it with

(H5)

3. Fix the arm to the bracket of the door using a small barrette (H6). Tighten

it (H5).

4. Put together both arms. Seek for two aligned holes between the two arms

and one of the sections. Choose the holes that are the furthest between
