DATA PRECISION 5740 User Manual

72-1002
Model S740 COUNTER

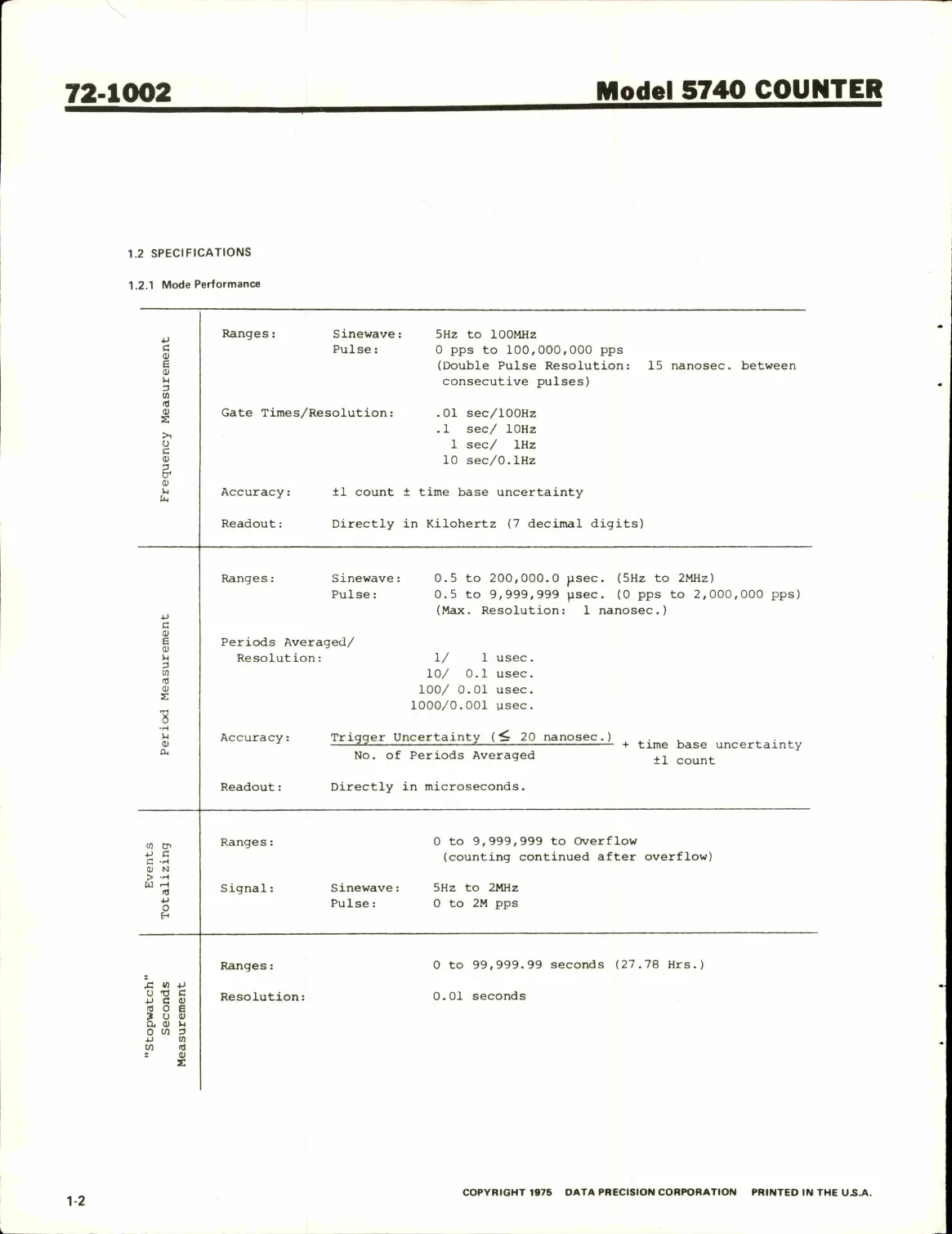

1.2 SPECIFICATIONS
1.2.1 Mode Performance
jj
c
o
B
0)
u
3
cn
>1
o
c
<D
0)
U
Ranges: Sinewave:
Pulse:
Gate Times/Resolution:
5Hz to lOOMHz
0 pps to 100,000,000 pps
(Double Pulse Resolution: 15 nanosec. between
consecutive pulses)
.01 sec/lOOHz
.1 sec/ lOHz
1 sec/ iHz
10 sec/0.iHz
Accuracy: ±1 count ± time base uncertainty
Readout: Directly in Kilohertz (7 decimal digits)
c
(1)
B
C
u
3
W
c
s
•H
<u
0.
Ranges: Sinewave: 0.5 to 200,000.0 ^sec. (5Hz to 2MH2)
Pulse: 0.5 to 9,999,999 psec. (0 pps to 2,000,000 pps)
(Max. Resolution: 1 nanosec.)
Periods Averaged/
Resolution:
Accuracy:
Readout:
1/ 1 usec.
10/ 0.1 usec.
100/ 0.01 usec.
1000/0.001 usec.
Trigger Uncertainty ('^ 20 nanosec.)
No. of Periods Averaged
Directly in microseconds.
+ time base uncertainty
±1 count
.j c
c -H
0) N
>
W
IB
■P
o
Eh
Ranges:
Signal:
Sinewave:
Pulse:
0 to 9,999,999 to Overflow
(counting continued after overflow)
5Hz to 2MHz
0 to 2M pps
x: B p
o "O c
P B u
g o e
S u 0)
a o El
o W 3
P U)
cn Id
Ranges:
Resolution:
0 to 99,999.99 seconds (27.78 Hrs.)
0.01 seconds
1-2
