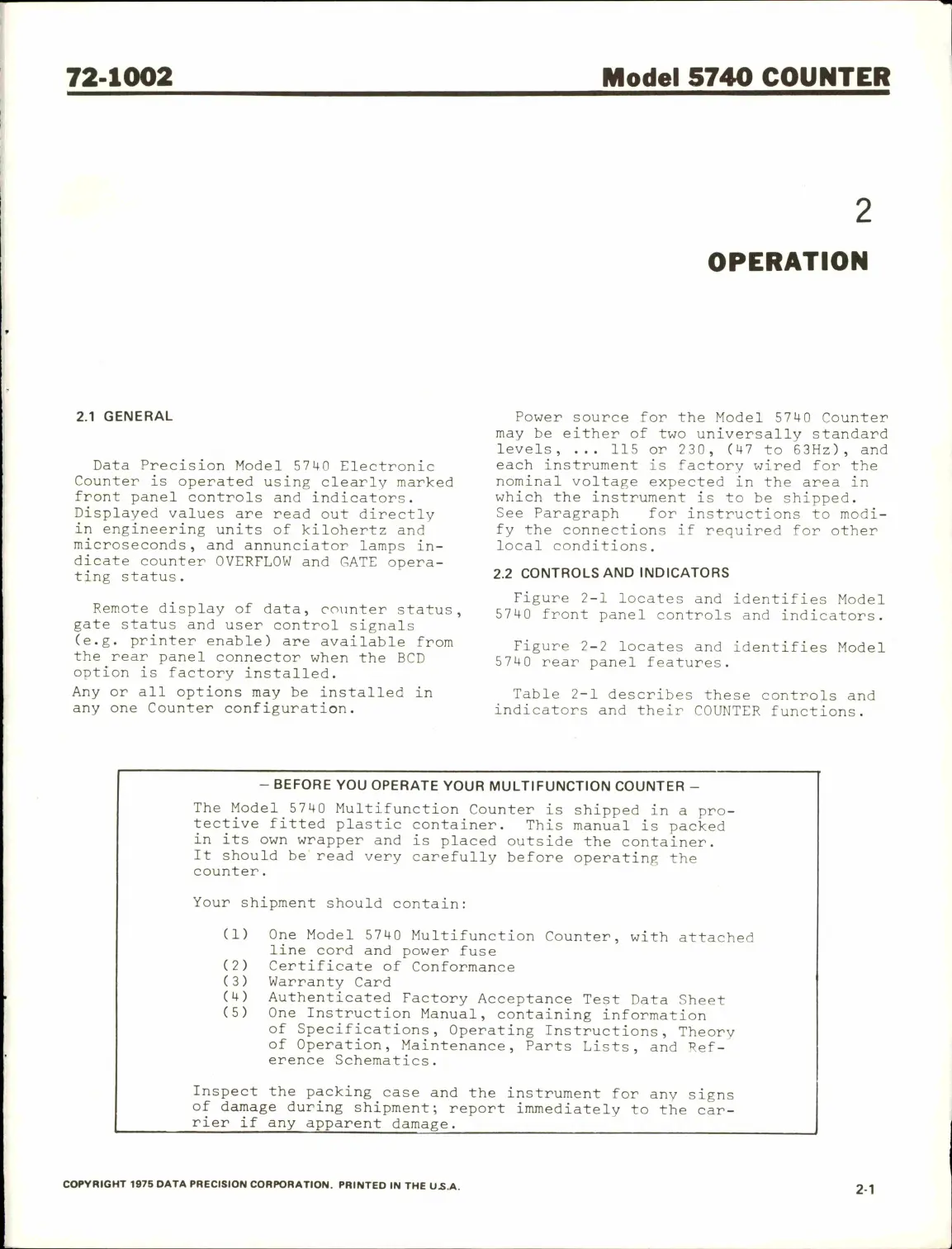

72-1002
Model 5740 COUNTER
OPERATION
2.1 GENERAL
Data Precision Model 5740 Electronic
Counter is operated using clearly marked
front panel controls and indicators.
Displayed values are read out directly
in engineering units of kilohertz and
microseconds, and annunciator lamps in
dicate counter OVERFLOW and GATE opera
ting status.
Remote display of data, counter status,
gate status and user control signals
(e.g. printer enable) are available from
the rear panel connector when the BCD
option is factory installed.
Any or all options may be installed in
any one Counter configuration.
Power source for the Model 5740 Counter
may be either of two universally standard
levels, ... 115 or 230, (47 to 63Hz), and
each instrument is factory wired for the
nominal voltage expected in the area in
which the instrument is to be shipped.
See Paragraph for instructions to modi
fy the connections if required for other
local conditions.
2.2 CONTROLS AND INDICATORS
Figure 2-1 locates and identifies Model
5740 front panel controls and indicators.
Figure 2-2 locates and identifies Model
5740 rear panel features.
Table 2-1 describes these controls and
indicators and their COUNTER functions.
- BEFORE YOU OPERATE YOUR MULTIFUNCTION COUNTER -
The Model 5740 Multifunction Counter is shipped in a pro
tective fitted plastic container. This manual is packed
in its own wrapper and is placed outside the container.
It should be read very carefully before operating the
counter.
Your shipment should contain:
(1) One Model 5740 Multifunction Counter, with attached
line cord and power fuse
(2) Certificate of Conformance
(3) Warranty Card
(4) Authenticated Factory Acceptance Test Data Sheet
(5) One Instruction Manual, containing information
of Specifications, Operating Instructions, Theory
of Operation, Maintenance, Parts Lists, and Ref
erence Schematics.
Inspect the packing case and the instrument for any signs
of damage during shipment; report immediately to the car-
rier if any apparent damage.
COPYRIGHT 1975 DATA PRECISION CORPORATION. PRINTED IN THE US.A.
2-1
