RAPID CONFIGURATION
1

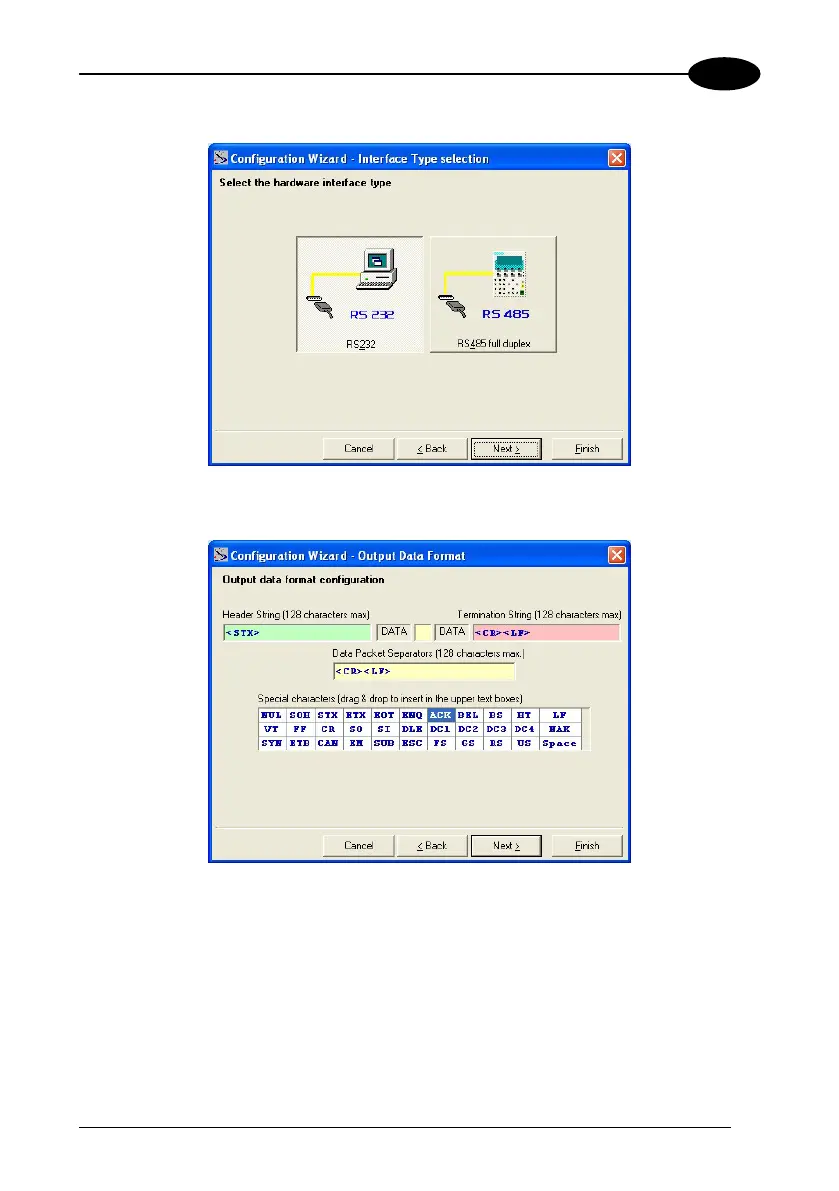

d. Hardware interface selection
e. Output data format configuration
The On Line operating Mode requires the reader to be connected to an
external Presence Sensor using EXT TRIG/PS A and EXT TRIG/PS B inputs.
The Automatic operating mode does not require connection to an external
Presence Sensor. When working in this mode the reader is continuously
scanning, while the reading phase is activated each time a barcode enters the
reader reading zone. The reader stops reading after an N number of scans
without a code. Barcode characters are transmitted on the serial interface. In
case of a failed reading phase no message is sent to the host computer.
11

Datalogic DS2400N Specifications

General

Type	-
Sensor type	Laser
Read rate (max)	1000 reads/s
Linear (1D) barcodes supported	Codabar, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), Pharmacode, U.P.C.
2D (matrix & stacked) barcodes supported	Not supported
Standard interfaces	RS-232, RS-485
Connectivity technology	Wired
Input voltage	10 - 30 V
Power source type	DC
Power consumption (typical)	5 W
Certification	IEC
Product color	Blue, Yellow
Housing material	Aluminum
International Protection (IP) code	IP65
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Depth	34 mm
Width	84 mm
Height	68 mm
Weight	330 g
