158

Gryphon™ I GFS4400

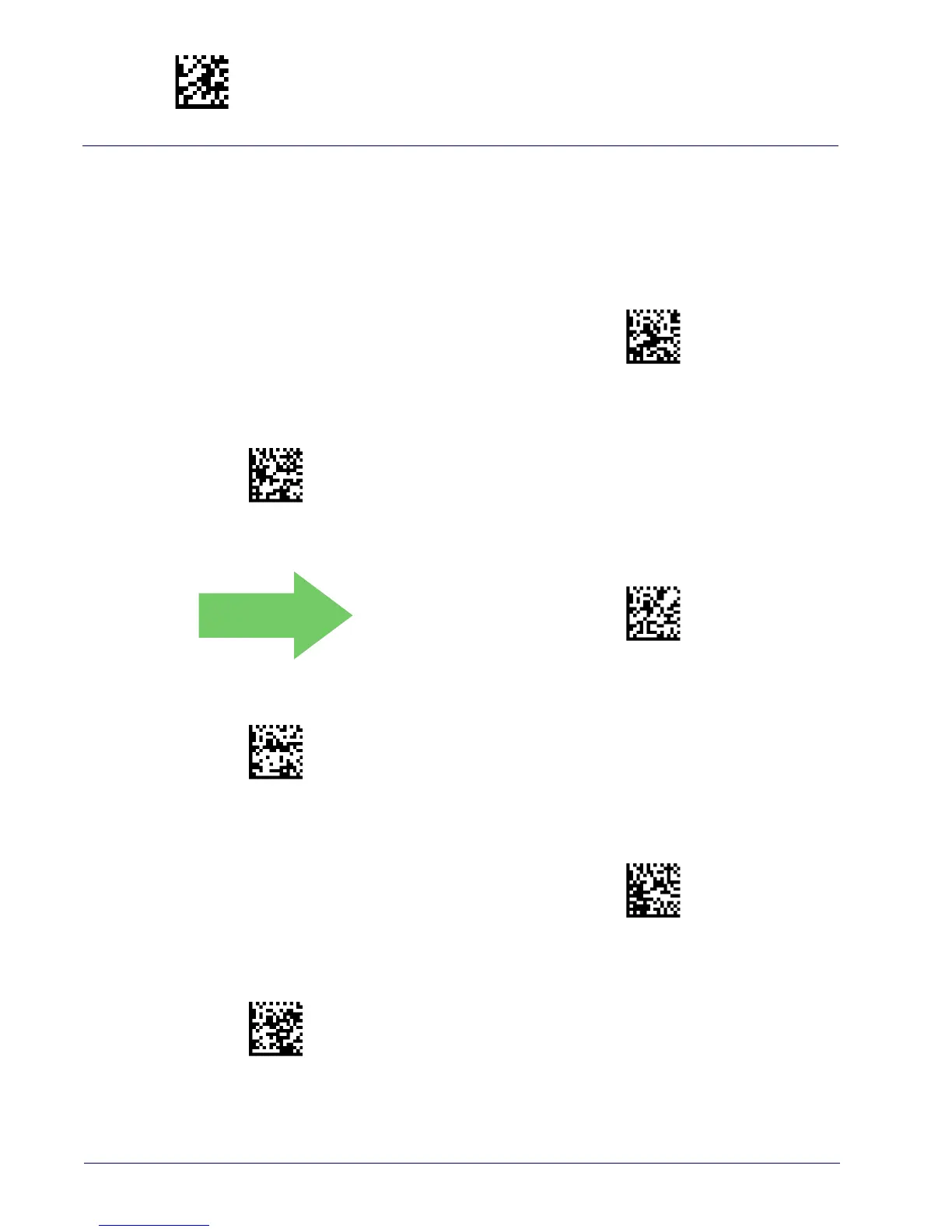

ABC Codabar Dynamic Concatenation Timeout

Specifies the timeout in 10-millisecond ticks used by the ABC Codabar Dynamic

Concatenation Mode.

$CCBDT05(CR)

ABC Codabar Dynamic Concatenation Timeout = 50

msec

$CCBDT0A(CR)

ABC Codabar Dynamic Concatenation Timeout = 100

msec

DEFAULT

$CCBDT14(CR)

ABC Codabar Dynamic Concatenation Timeout = 200

msec

$CCBDT32(CR)

ABC Codabar Dynamic Concatenation Timeout = 500

msec

$CCBDT4B(CR)

ABC Codabar Dynamic Concatenation Timeout = 750

msec

$CCBDT64(CR)

ABC Codabar Dynamic Concatenation Timeout = 1 Sec-

ond
