To Next Page

To Previous Page

Enter/Exit Programming Mode Code EAN/UPC

90 QuickScan™ I QD24XX/QBT24XX/QM24XX

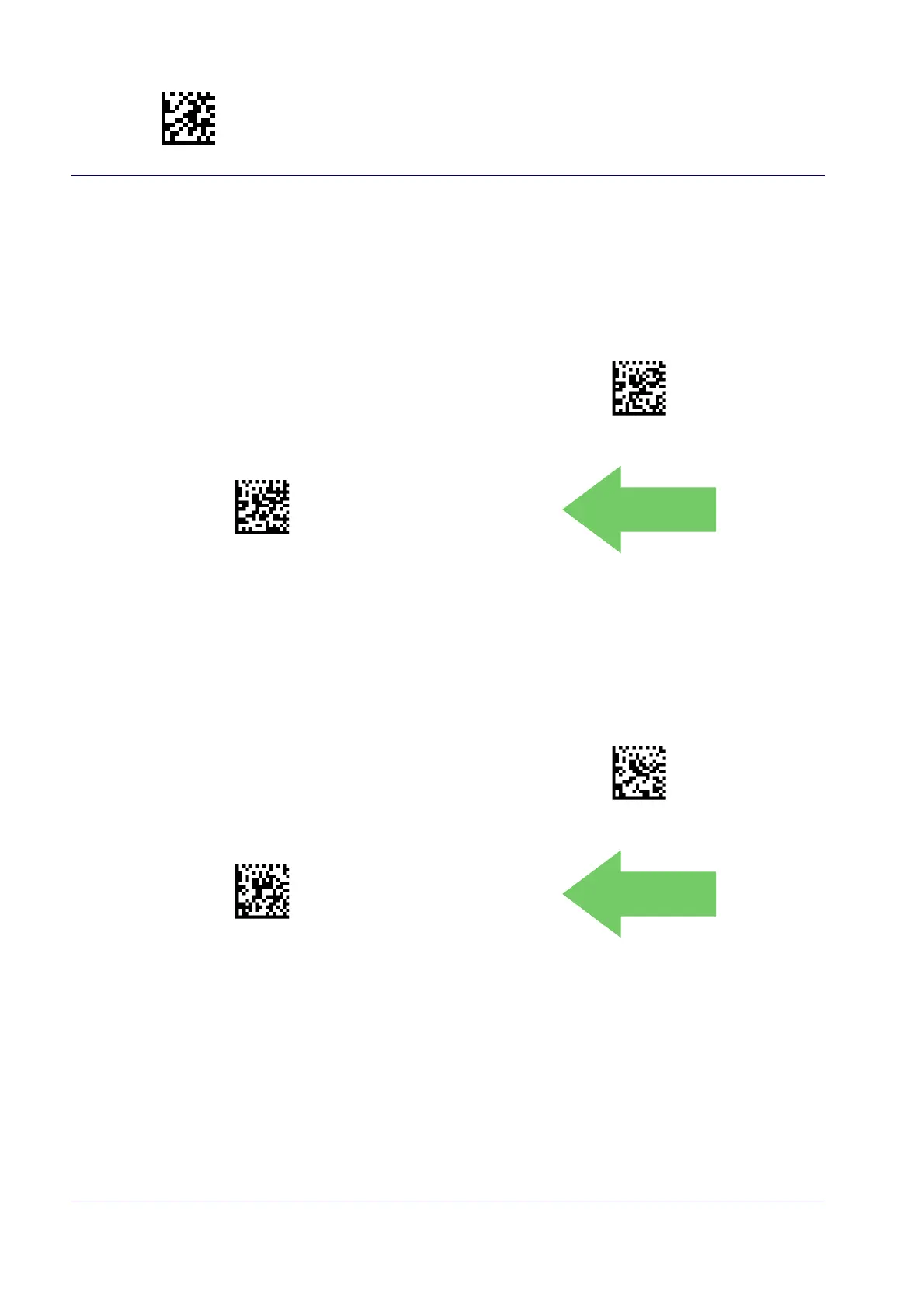

UPC-A

The following options apply to the UPC-A symbology.

UPC-A Enable/Disable

When disabled, the reader will not read UPC-A bar codes.

$CABEN00(CR)

UPC-A = Disable

$CABEN01(CR)

UPC-A = Enable

DEFAULT

UPC-A Check Character Transmission

Enable this option to transmit the check character along with UPC-A bar code data.

$CABCT00(CR)

UPC-A Check Character Transmission = Don’t Send

$CABCT01(CR)

UPC-A Check Character Transmission = Send

DEFAULT

Default Chapter3
- Table of Contents3
