21
88%
85%
80%

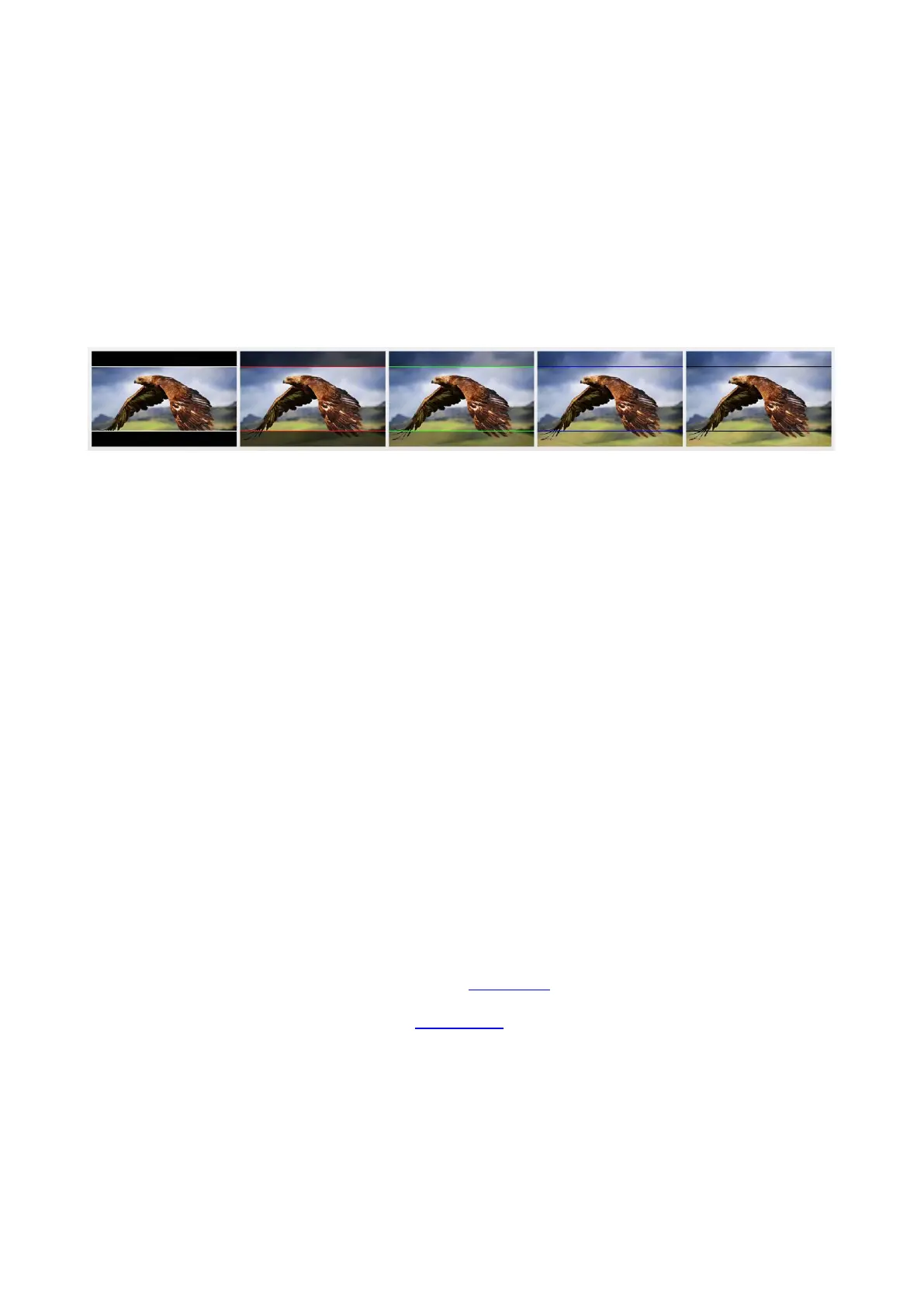

Marker Color
The user is also allowed to apply different colors to the aspect marker. The five available marker
colors are Red, Green, Blue, White and Black.
Aspect MAT
This sets the transparency of the mat placed over the cutoff at the select aspect ratio. Select from
0 to 7 with 7 being an opaque mat and 0 offering the highest transparency.
Thickness
This sets the aspect marker thickness ranging from 1 to 15.
User Marker H1/H2
This adjusts the marker’s horizontal position.
Increasing the value moves the marker to the right and decreasing the value moves the marker to
the left.
User Marker V1/V2
This adjusts the marker’s vertical position.
Increasing the value moves the marker up and decreasing the value moves the marker down.
Function
This allows the user to set advanced settings for the TLM-170F, such as the scan mode, the aspect
ratio, underscan mode, H/V delay, check field, zoom, and etc. Details of how these functions can be
configured are described as follows:
Scan
This sets the Scan mode of the TLM-170F.
Zoom: Enlarge the original image according to the zoom ratio of the TLM-170F.
Aspect: Display the image according to the aspect ratio of the TLM-170F.
Pixel to Pixel: Display the original image resolution without scaling to match a certain resolution or
an aspect ratio. For example, when the resolution of the input video is 1920x1080 but the
monitor’s resolution is only 1280x800, only area equivalent to 1280x800 out of 1920x1080 will be
displayed.
Aspect
The aspect control allows you to manually set the aspect ratio of the monitor. You should choose
the aspect ratio of your screen to match that of the input video in order to achieve the best
