30
Color

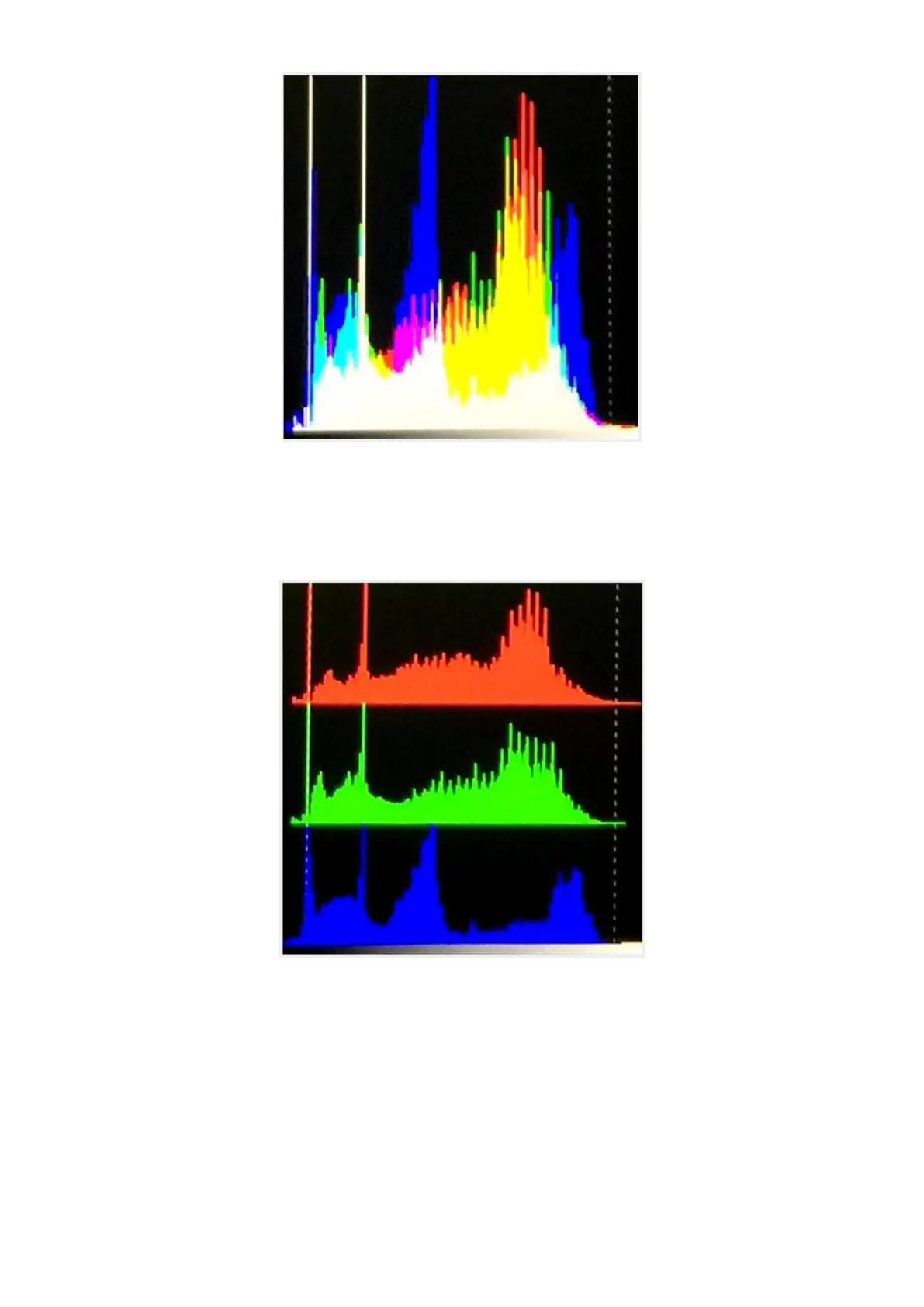

By setting the histogram to color, you will see one red histogram, one green histogram and one
blue histogram. Each color histogram is basically a representation of how that color’s intensity is
distributed throughout an image, allowing you to evaluate the brightness and exposure of that
individual color channel. See the diagram below for an example of the color histogram.
Time Code
The TLM-170F is able to decode the following SMPTE timecode formats:
LTC: Linear timecode.
VITC: Vertical interval timecode.
The decoded time code will be shown at the top of the screen.
Note: Time code is only available with the SDI input.
