Installation
SPL2(TS) and SPL3(TS) user manual
EN

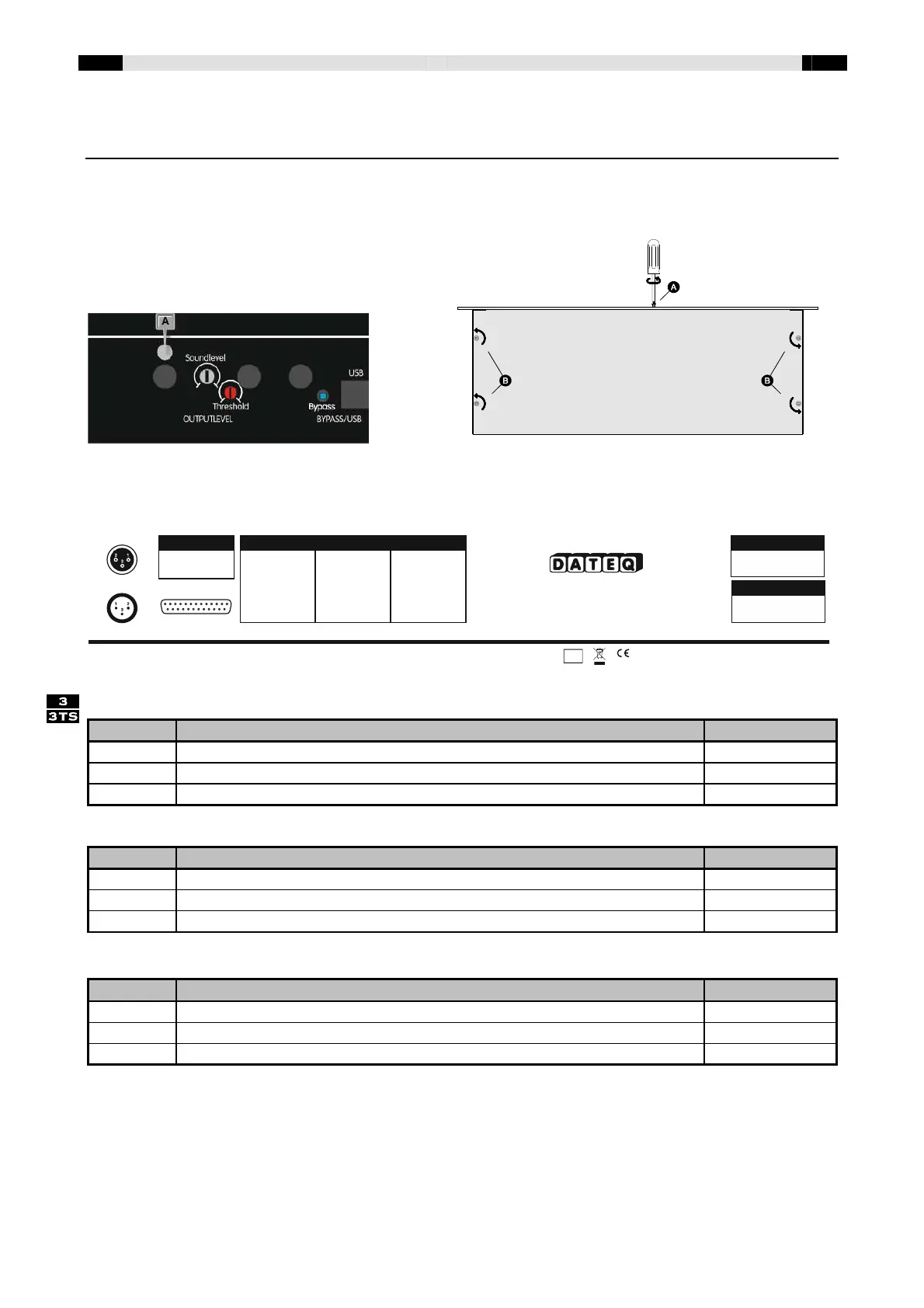

Connectors
To prevent modification of the connections after calibration and sealing, the connectors of the
limiter are inaccessible after sealing of the cover plates at the front. To access the connector
board, remove the right cover plate at the front panel.
Unfasten screw (A) with a torx-screwdriver (see illustration). Now remove the 4 torx-screws (B)
from the top lid. The top cover can be removed now. Gently lift the front side a little, and slowly
shift the lop lid to the rear. The connector board will become visible.
CHECK US ER MANUAL O R
WWW.DATEQ.NL
FOR OPE RATION AND MAINTE NANCE DETAILS
SERIAL INTERFACEAUDIO OUT PUTSAUDIO INPUTSMIC INPUT
113
1425
SPL3(TS) only L - R L - R
IN
OUT
100-240VAC
POWER
2011
RoHS
CO MPLI A NT
2 800
/ /
59 EC
MADE IN THE NETHERLANDS
LIMITER
Stereo Program Audio Limiter
AUDIO XLR
1 Ground
2 Audio +
3 Audio -
SERIA L INTER FACE
1 Ext Attenuation In
2 Reduction
3 Overload
4 *Warning
5 *Live Mode OK
6-8 Ground
9 *Mic In +
10 Left In +
11 Right In +
12 Left Out +
13 Right Out+
18 I/O TXD
19 I/O RXD
14-17, 20 Ground
21 *Mic In -
22 Left In -
23 Right In -
24 Left Out -
25 Right Out -
*SPL3(TS) only
SERIAL NUMBER
CAUTION
DISCONNECT POWER CABLE
BEFORE OPENING.
RISK OF ELECTRIC SHOCK.
Mike Input (only use the original DATEQ-microphone) (XLR 3-pins female)
Pin Function Type
1 Ground A-GND
2 Audio + In
3 Audio - In
Audio in Left / Right (balanced XLR 3-pins female)
Pin Function Type
1 Ground A-GND
2 Audio + In
3 Audio - In
Audio out Left / Right (balanced XLR 3-pins male)
Pin Function Type
1 Ground A-GND
2 Audio + Out
3 Audio - Out
