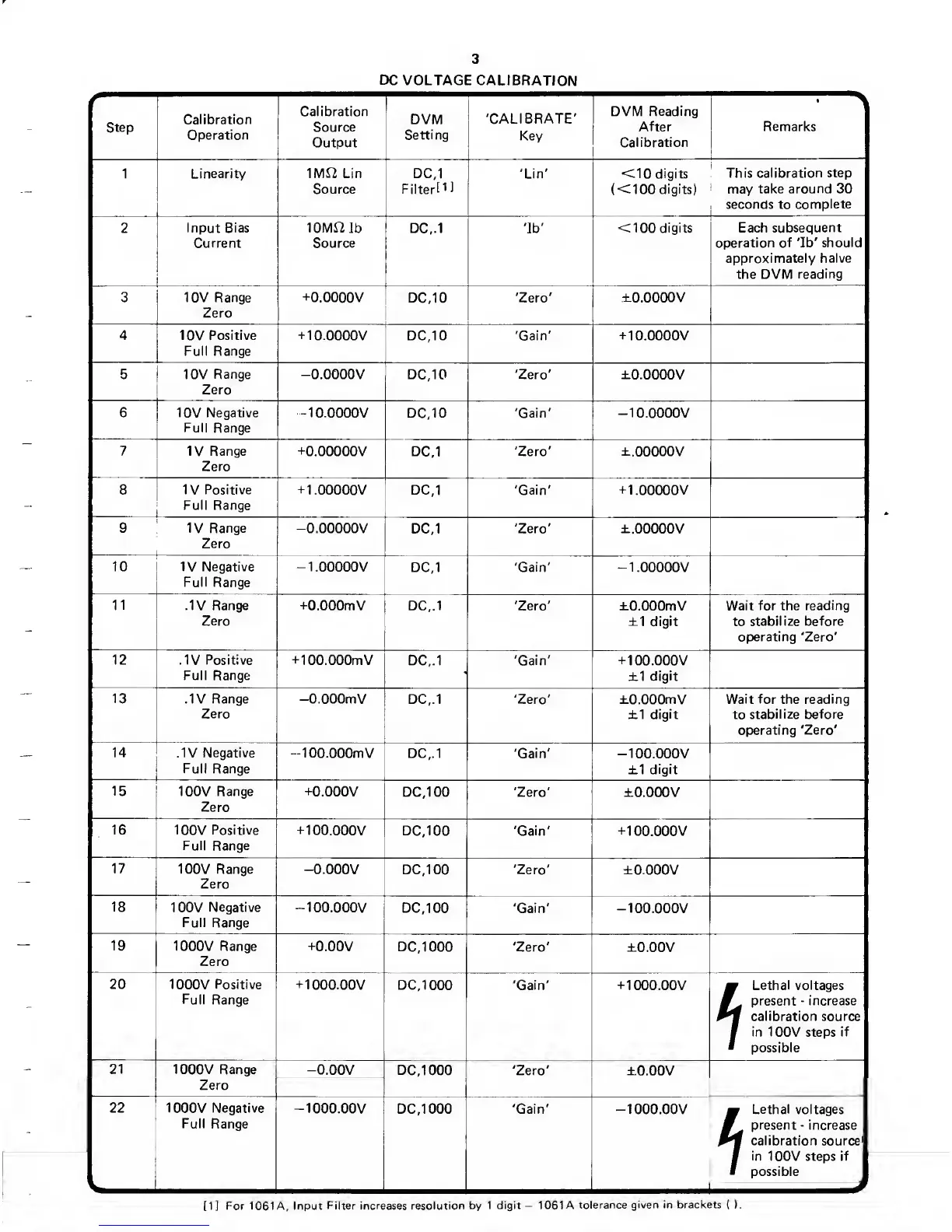

3
DC
VOLTAGE CALIBRATION
-
Step
Calibration
Operation
Calibration
Source
Output
DVM
Setting
'CALIBRATE'
Key
DVM
Reading
After
Calibration
Remarks
—
1
Linearity 1M12 Lin
Source
DC,1
FilterMI
'Lin' <10 digits
(<100
digits)
This
calibration step
may
take around 30
seconds to
complete
2
Input Bias
Current
10Mi2
Ib
Source
DC,.1 'Ib'
<100 digits Each
subsequent
operation of 'Ib'
should
approximately halve
the DVM
reading
3 10V Range
Zero
+0.0000V DC,
10
'Zero' tO.OOOOV
4
10V
Positive
Full Range
+
10.0000V DC, 10 'Gain'
+
10.0000V
5 10V
Range
Zero
-O.OOOOV DC,
10
'Zero'
±0.0000V
6
10V
Negative
Full
Range
-10.0000V DC,10 'Gain' -10.0000V
7 IV Range
Zero
+0.00000V DC,1 'Zero' ±.00000
V
8
IV Positive
Full Range
+
1.00000V DC,1 'Gain'
+
1.00000V
g IV Range
Zero
-O.OOOOOV
DC,1
'Zero'
±.00000
V
10 IV Negative
Full
Range
-1.00000V
DC,1
'Gain'
-1.00000V
-
11
IV Range
Zero
+0.000mV DC,.1 'Zero'
±0.000mV
±1 digit
Wait for the
reading
to
stabilize before
operating 'Zero'
12 • IV Positive
Full Range
+
1 00.000mV
DC,.1 'Gain'
+
100.000V
±1
digit
13
IV Range
Zero
-O.OOOmV
DC,.1 'Zero' ±0.000mV
±1 digit
Wait for
the
reading
to
stabilize before
operating 'Zero'
—
14
,1V
Negative
Full Range
-1
00.000mV DC,.1 'Gain'
-100.000V
±1
digit
15
100V
Range
Zero
+O.OOOV
DC,100 'Zero' iO.OOOV
16
100V
Positive
Full Range
+
100.000V DC,100 'Gain'
+100.000V
—
17
100V
Range
Zero
-o.ooov
DC, 100 'Zero'
±0.000V
18
100V
Negative
Full Range
-100.000V DC, 100 'Gain'
-100.000V
—
19
1000V Range
Zero
+0.00V DC,
1000 'Zero'
±0.00V
-
20
1000V
Positive
Full
Range
+
1000.00V DC, 1000 'Gain'
+1000.00V m
Lethal voltages
m present
-
increase
calibration source
f
in
100V steps
if
possible
—
21
1000V Range
Zero
-0,00V DC,
1000 'Zero'
±o.oov
-
22
1000V
Negative
Full
Range
-1000.00V DC, 1000 'Gain'
-1000.00V m
Lethal
voltages
M
present
-
increase
calibration
source'
f
in
100V steps if
f
possible
[1]
For 1061 A,
Input
Filter
increases resolution
by 1 digit
—
1061 A
tolerance
given in brackets
(
).
