David Clark X11 - Audio Performance in Various Operation Modes; X11 P Panel Mount Adapter Cords; Standard Adapter Cord; Optional Aviation Adapter Cord

10 11
Aircraft Intercom
• Sidetone provided by
aircraft intercom.
• Intercom squelch and
receive volume control
function normally.
• Receive volume
controlled by dome
volume controls.
• Fail-safe
communication
independent of ENC
and/or battery status.
• Auto-shutoff
functional (if enabled).
Cell Phone
• Sidetone provided
by aircraft intercom.
• Headset Mic audio
to cell phone heard
on aircraft intercom.
• Cell phone receive
audio is isolated
from aircraft
intercom.
• No audio mute
function.
Aux Audio
• This audio is
muted upon
receipt of any
communication
audio.
• Mute delay is
approximately
1.5 seconds after
communication
channel is quiet.
AUDIO PERFORMANCE IN VARIOUS OPERATION MODES
X11P
(
Panel Mount
)
ADAPTER CORDS

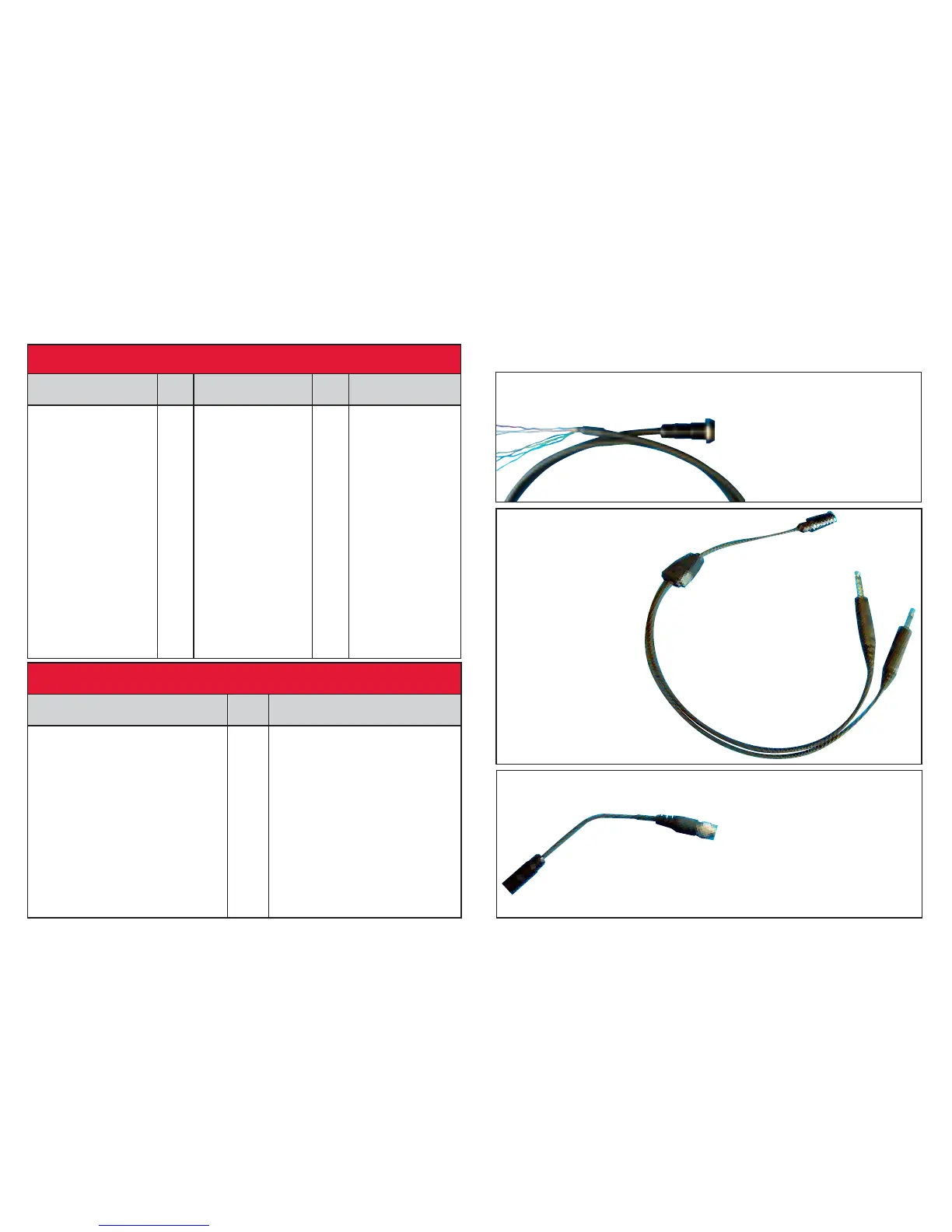

Adapter Cord P/N 40998G-05
Adapter Cord P/N 40998G-02
Adapter Cord P/N 40998G-03
Standard adapter cord
supplied with Model X11P
(Permanent Panel Mount)
headsets. Designed for wiring
into existing avionics – built-in
intercoms, radios, etc.
Optional adapter cord
with standard aviation
plugs that allows use
of X11P (Permanent
Panel Mount) head-
sets when flying in
other than primary
aircraft.
Optional adapter cord that
allows use of X11P (Permanent
Panel Mount) headsets in
aircraft already equipped with
David Clark Company ENC
“XP” Series panel mount
modules with snap-lock,
quick-release connectors.
AND OR
Cell Phone
• Batteries required for operation.
• Auto-shutoff functional (if enabled).
• Receive audio heard in both ears,
independent of comm. audio
mono/stereo select.
• No sidetone but some cell phones
provide sidetone.
• Performs identical to any cell
phone headset.
Aux Audio
• Batteries required for operation.
• Auto-shutoff must be disabled
intercom.
• True stereo audio.
OR
Connected to aircraft intercom:
Not connected to aircraft intercom:
