6

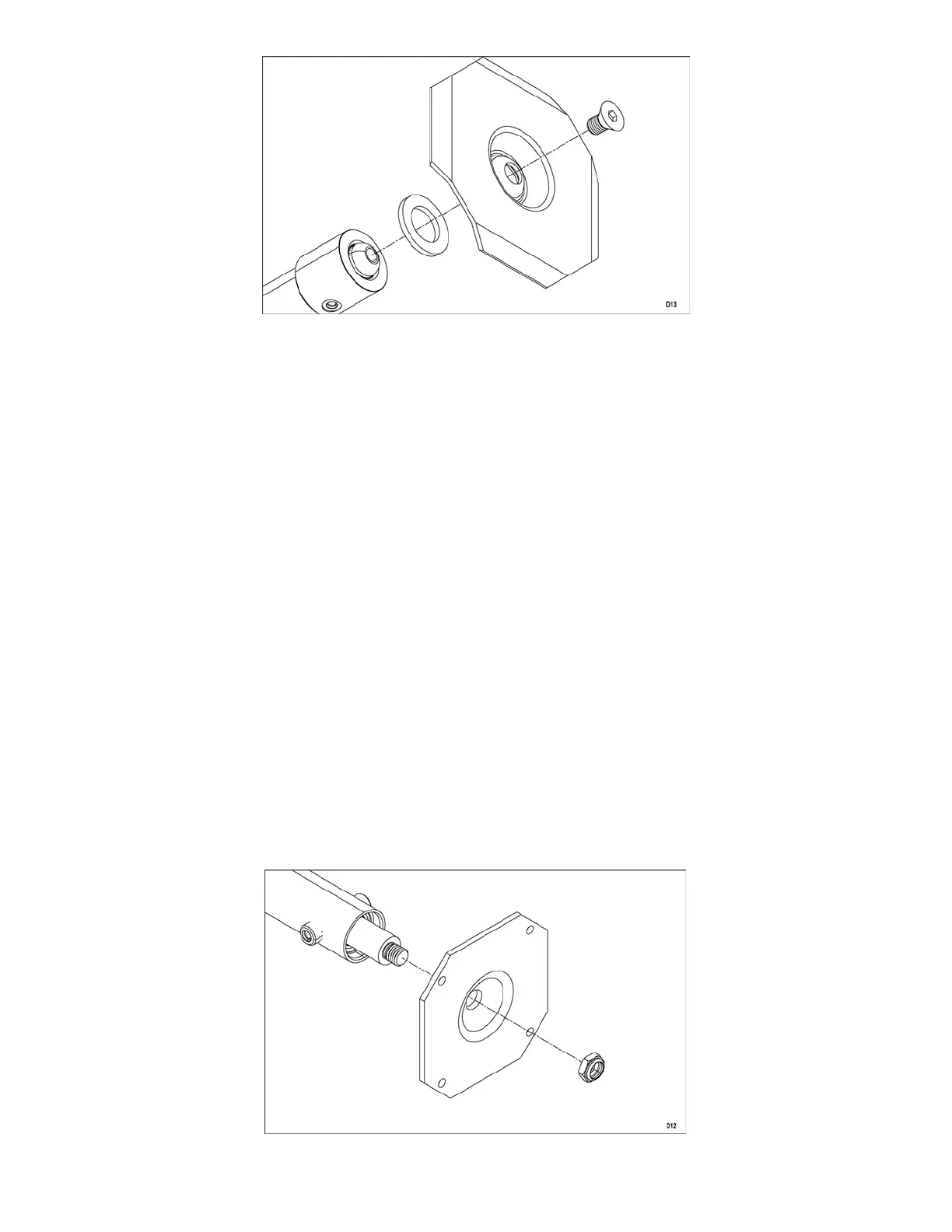

SL 13 Leg Assembly
This assembly uses the 3/4”-16 nylock jam nut.
Required for installation:
• 1/2” drive Impact wrench/gun
• 1/2” drive X 1 1/16” socket (6 point preferred)
Process
1. Check/verify that the threads on the end of the cylinder rod are clean and not damaged. Use the
nylock nut to check that it will thread (start) on the end of the rod. Do not fully install or tighten at this
time. Remove the nut.
2. Position the hole in the middle of the foot pad over the threaded end of the rod. Start the nylock nut
onto the threads by hand.
3. Using the impact wrench/gun and the 1 1/16” socket, tighten the nut onto the rod. Note that the rod
may rotate as you are doing this. Tighten the nut until between 1 and 3 threads are visible past the
end of the nylock nut.
Notes
• When properly installed, if the cylinder is extended slightly, the foot should pivot slightly and will be
free to rotate.
SL 13
SL 18, SL 16 & SL 15
