INSTRUCTION MANUAL
3200/3300 SERIES DIGITAL INDICATOR
1. DESCRIPTION
The 3000 Instrument Series is a family of premium signal conditioning instru-
ments that includes models to
accomodate virtually all types of transducers and
signal sources commonly encountered in electro-mechanical testing and control
operations. The 3000
Instruments are available in three forms: Form 1 contains the
Signal Conditioner only; Form 2 is the Signal Conditioner with Digital Indicator;
Form 3 is the Signal Conditioner with Digital Indicator and Hi-Lo Limits. The
Model numbering system used with the 3000 Series identifies the form and the type
of signal source. This numbering system is further explained in Table 1. From Table
1, it can be seen that all models having a Digital Indicator are identified by a 32XX or
33XX number, with the last two digits identifying the type of signal source (ther-
mocouple, LVDT, etc).

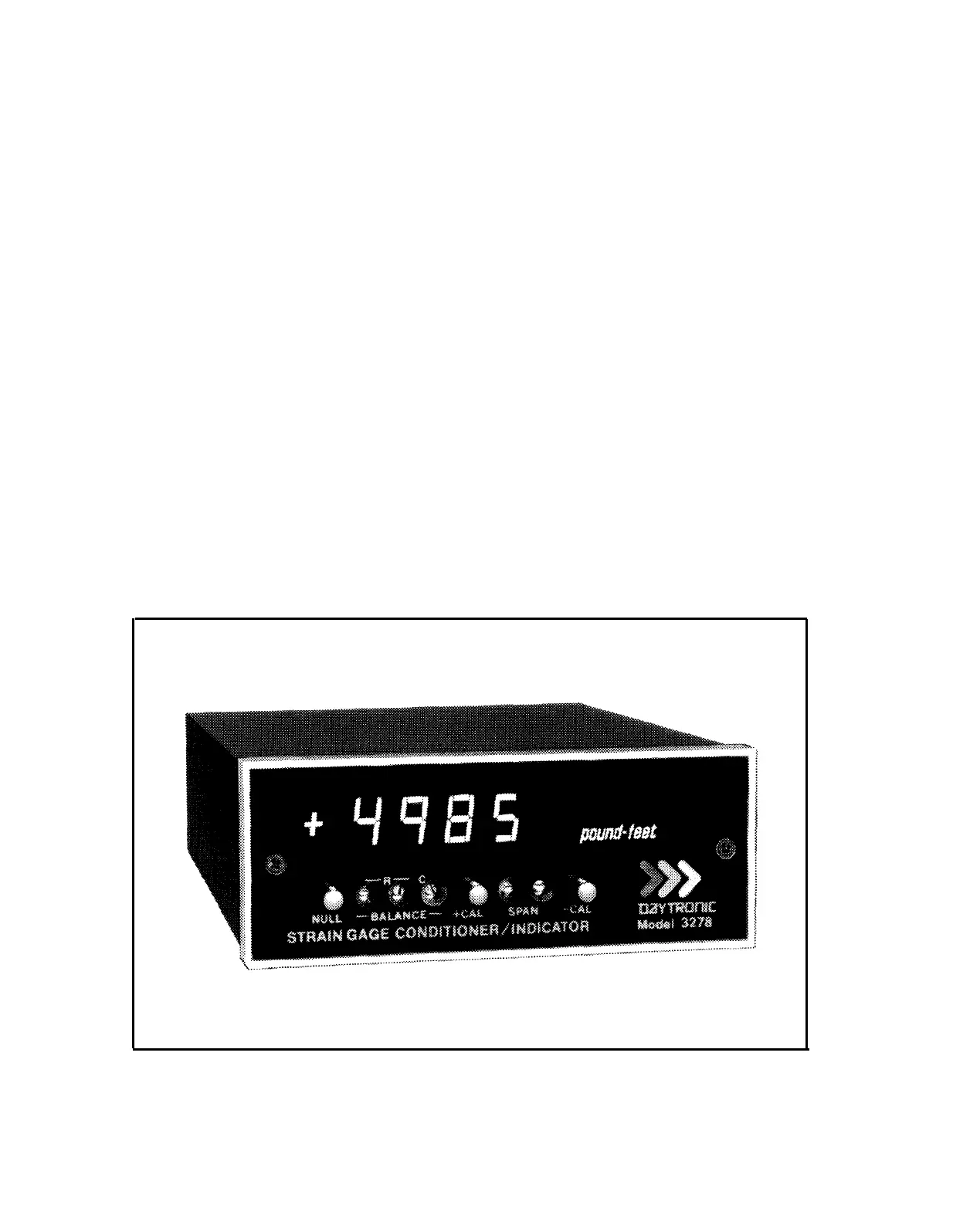

Figure 1. 3000 Series Instrument with Digital Indicator
1
