dB Technologies MUP 4120 - Technical Specification

Model / Modello MUP 4120
Output Rated Power / 120 W RMS
Potenza erogata
Max power 10% THD / 150 W RMS
Pot. erogata a 10% THD
Output Regulation / < 2dB
Regolazione d’uscita no load to full load
Speaker Output / 4ohms (22V)
Uscita altoparlanti 70V (40.8ohm),100V (83.3ohms)
Line output (RCA) / 1V
Uscita LINE
Slave output (RCA) / 1V
Uscita SLAVE
Input Sensitivity / Mic 1 :1.5mV (-56 dB V), Balance /bilanciato
Sensibilità d’ingresso Mic 2: 1.5mV (-56dB V), Unbalance / sbilanciato
Line1,2,3 : 300mV (-10dB V), Unbalance / sbilanciato
Input Impedance / Mic 1 : 1,1 Kohms
Impedenza d’ingresso Mic 2 : 1,1 Kohms
Aux, Line: 10Kohms
Input Connectors / Mic 1: XLR (1 = Ground, 2 = + IN, 3 = -IN)
Connettori d’ingresso Mic 2 Line 2,1: ¼ “ Phono Jack
Aux : RCA Jack
Frequency Response / 50Hz 15 KHz (± 3dB)
Risposta in frequenza
Distortion / < 2% (120W)
Distorsione
Signal Noise Ratio / Mic 1 : <-60dBr
Rapporto segnale di disturbo Mic 2 : <-60dBr
( 0dBr = 120W ) Line1 : <-75dBr
( 22Hz 22KHz ) Line2 : <-60dBr
Aux : <-75dBr
Tone Control / Bass:-10dB (min),+10dB (max) @ 100Hz
Volume toni Treble: -10dB (min),+10dB (max) @ 10KHz
Protection circuits / Short cicuit protection, DC protection
Protezione sui circuiti Power Supply protection;
Overload protection (fuse)
VOX Function / Mic 1 Overrides other inputs when
Funzione di VOX VOX switch is ON (-40dB attenuation)
Phantom Supply / 24V for Mic 1 Input only when phantom
Tensione phantom switch is ON
Power requirement / AC 230V, 50Hz
Tensione richiesta
Power Consumption / 350VA max
Potenza assorbita
Colour / black / nero
Colore
Dimensions / 256X425X82mm
Dimensioni
Weight / 9,2 Kg
Peso
SPECIFICHE TECNICHE - TECHNICAL SPECIFICATION
18
17
7
8
2
1
5
4
3
3
7
6
8
9
4
5
10
11
2
1
6
SERIAL N°
SENSITIVITY
BB
dd
TECHNOLOGIESTECHNOLOGIES
OFF ON
VOX
MIC 1
LINE 1
LINE
MIC
LINE 2 / MIC 2
LINE 3
PHANTOM
INPUTS
OUTPUTS
OFF
ON
PRE
POST
LINE
SLAVE
POWER OUTPUTS
COM
70V
100V
4Ù
Manufactured in India under
dB Technologies control
Designed in Italy
POWER CONSUMPTION
350VA MAX
220-240V~ 50-60Hz
FUSE T1.6A 250V~
L
R
L
R
PA - AMPLIFIER MUP 4120PA - AMPLIFIER MUP 4120
OUTPUT POWER 120W RMS
B
d
TECHNOLOGIES
INPUTS
TONE
LINE 2 / MIC 2
BASS
VOLUME
TREBLE
ON
-13 dB
-8 dB
-3 dB
0 dB
+3 dB
LINE 3
LINE 1
MIC 1
-10dB -10dB
0
10
+10dB+10dB
0000 10101010
0
0
POWER
PA - AMPLIFIER MUP 4120PA - AMPLIFIER MUP 4120
ON
OFF
5555
12

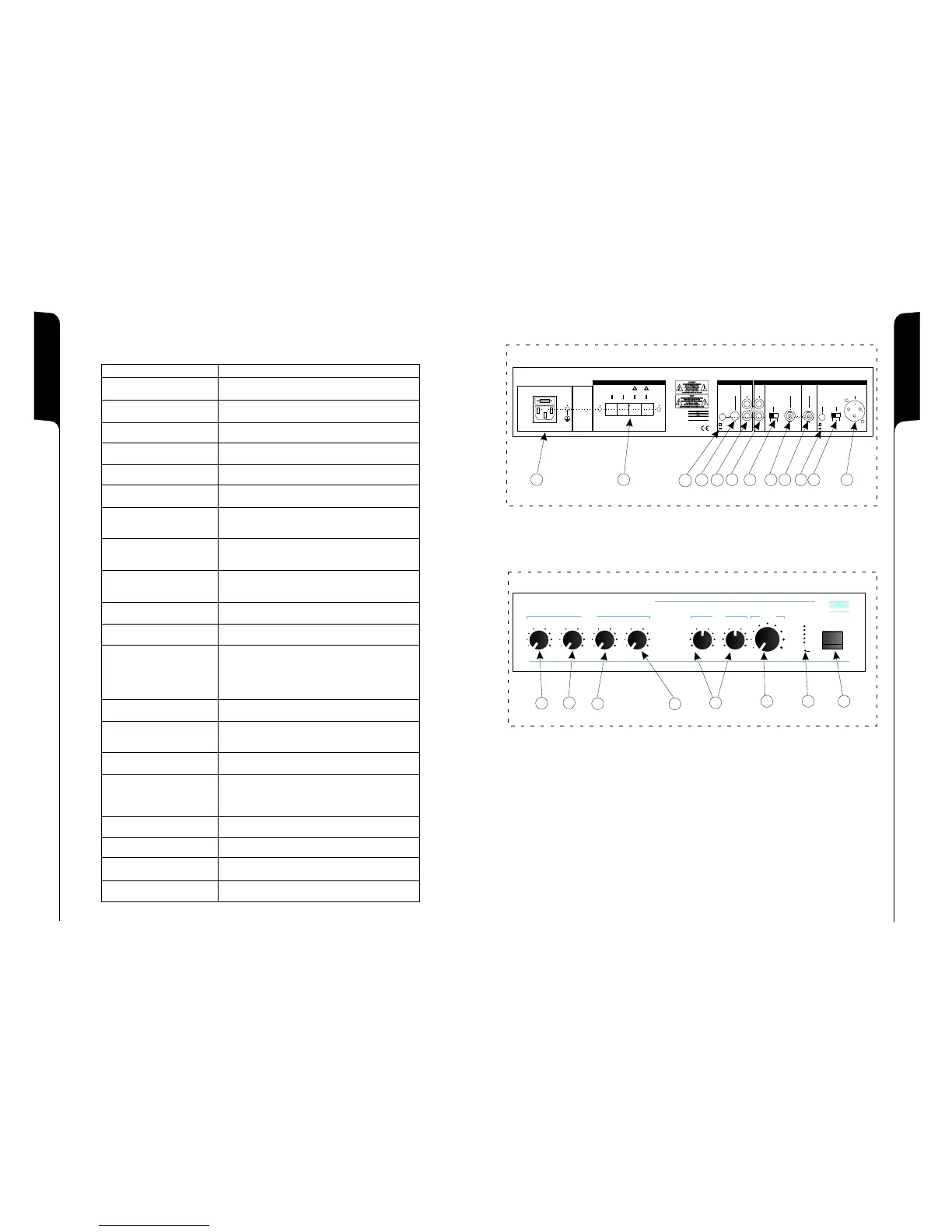

Fig.1 rear panel controls / controllo pannello posteriore
Fig.2 front panel controls / controllo pannello frontale
