Cobalt D Box - the smartest booster available:
Cobalt D Box is an intelligent 5-amp power booster with
excllent connection versatility and inter-brand operation.
Conceived to provide DC modellers with a digital accessory
power bus & give DCC users the ability to create a separated
accessory bus with its own power and independent overload
protection, Cobalt
D Box evolved to become an incredibly
versatile “Intelligent booster”, usable with any DCC system.
Cobalt
D Box also offers users of entry-level or even very
EDVLF³7UDLQVHW6WDUWHUVHWV´UHDOEHQH¿WV/LNHWKHDELOLW\WR
upgrade system power to 5 amps with high quality overload
protection and, if used with Cobalt
Dor Cobalt DCentral,
LWJLYHVWKHPWKHEHQH¿WRIIXOOGLJLWDO$FHVVRU\FRQWUROWRR
Cobalt
D Box has the following features.
• Sophisticated Aluminium case
• Blue “Power connected” indication within Logo
• Green illuminated “Power on” switch
• Red illuminated overload re-set switch
• Track bus <> Databus switch (On input side)
Cobalt
D Box Input Connections are (left to right):
• Track power input (OK 0.05 to 5 amps track power)
• Main DCC system connection (RJ12 type)
• DCCsystem control / Cab bus connection (RJ12 type)
• Cobalt Alpha Connection (RJ12 type)
• DC power input socket (15~21v regulated DC)
Cobalt
D Box Output Connections are (left to right):
• Alpha Bus / Cab bus Extension (RJ12 type)
• Track Power, 5 amps capacity, fully protected
Cobalt
D Box - Pack contents:
• 1x Cobalt
D Box
• 1x 6-wire 6’ ~ 1.75m RJ12 to RJ12 curly cord
• 1x Instruction Manual
Cobalt D Box - You may also need the following items:
• 1x 5 amp regulated DC power supply. This should be
Cobalt
D Power or a good quality equivalent. (15~21v
DC is OK, with a Coaxial DC plug to match
D Box)
• Alpha Adapter cables especially for your DCC system.
(note that NCE users do not need adapter leads)
• Cobalt
D Panel, NCE UTP panel or your own brand
“command bus interface panels” for the connection of
additional handsets (only if you are extending the com-
mand bus for the connection of additional handsets)

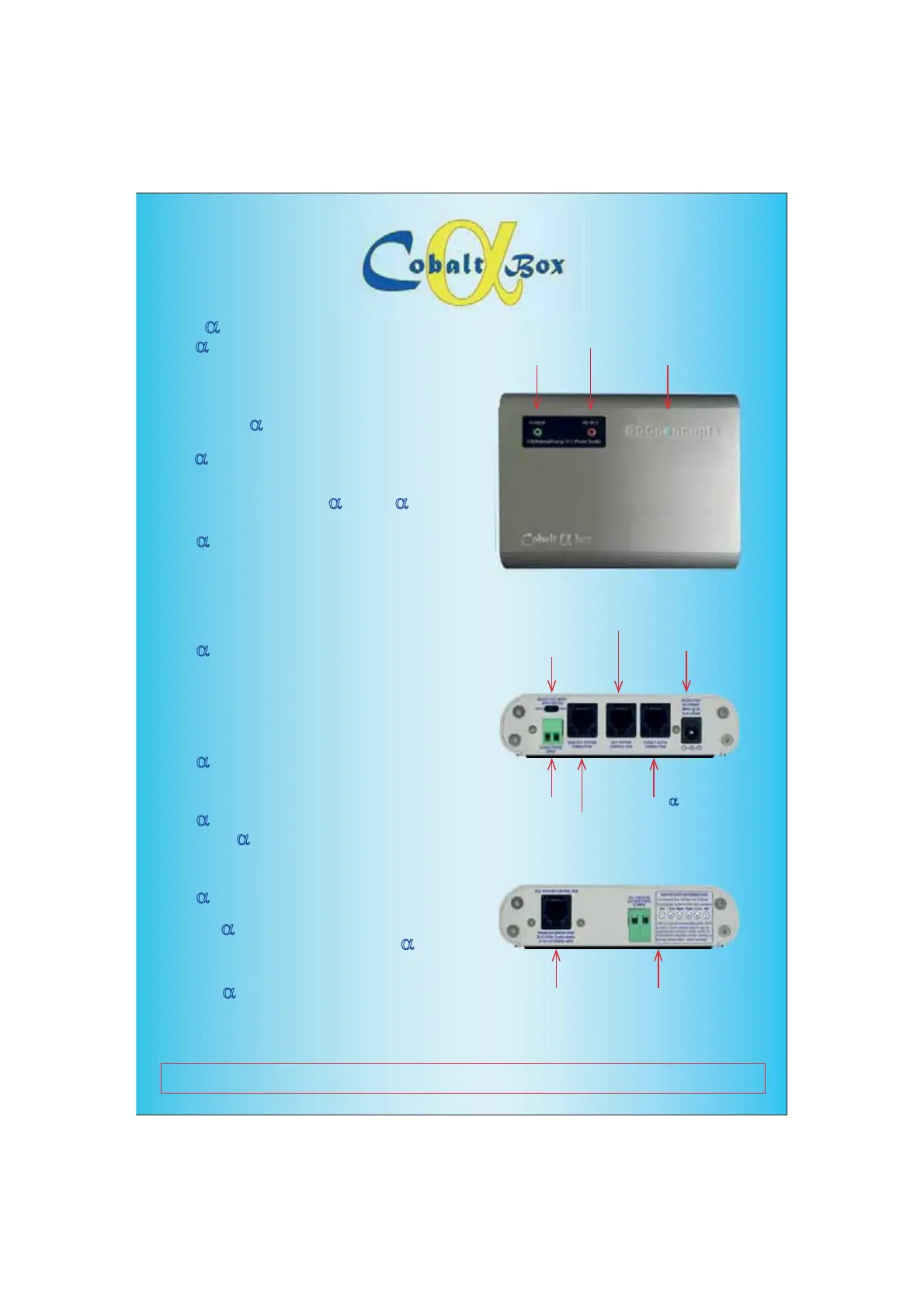

Main power-on LEDSystem On-Off Switch
Overload reset Switch (hold for 3 seconds)
Track Power or System
bus option Switch.
See page 7 for when to
change it.
DCC System Handset etc.
Regulated DC Power Input
DCC track power
input terminals
Main DCC system Input
Cobalt
DAlpha Data Input
DCC system command
bus extension (hand-sets
or more Alpha box units)
Output. Accessory Power bus OR
Track, 5A (with overload protection)
