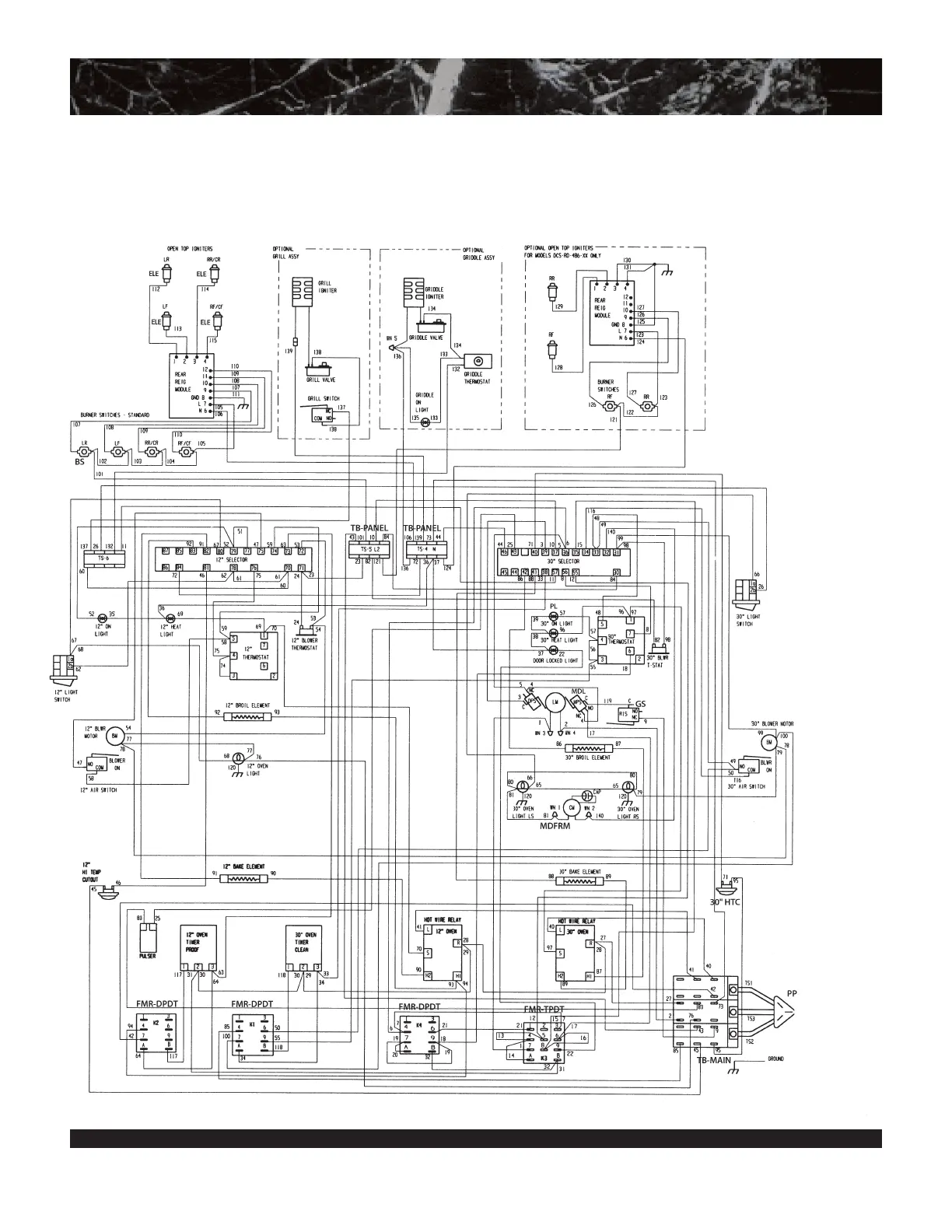

RD48 WIRING DIAGRAM
31
NOTES: (many of the parts have the name of the part instead of the
abbreviation)
AIS = AIR INTERLOCK SWITCH (16038)
BK-12 = BAKE ELEMENT 12 (16027-2)
BK-30 = BAKE ELEMENT 30 (16030-2)
BM = BLOWER MOTOR (50166)
BLT = BLOWER THERMOSTAT (16041)
BR-12 = BROIL ELEMENT 12 OVEN (16029-2)
BR-30 = BROIL ELEMENT 30 (16028-2)
BS = BURNER SWITCHES (13071)
CF = CENTER FRONT
CM = CONVECTION MOTOR
CR = CENTER REAR
CT = CLEAN TIMER (16044-2)
DPS = COOR POSTION SWITCH
ELE = ELECTRODE (12093)
FMR-DPDT = FLANGE MOUNT RELAY DPDT (16045-2)
FMR-TPDT = FLANGE MOUNT RELAY TPDT (16045-3)
GV = GRIDDLE & GRILL VALVE (13073)
GT = GRIDDLE THERMOSTAT (13310)
GS = GRILL SWITCH (16001)
HTC = HI-TEMP CUT-OUT (13043)
HWR = HOT WIRE RELAY (13039)
IGN = IGNITER (SMALL) (16009-1)
K1 = CLEAN REALY DPDT
K2 = PROOF RELAY DPDT
K4 = LATCH OPEN RELAY DPDT
LM = LATCH MOTOR, DOOR
LS = LIGHT SWITCH (16127)
MDFRM = MOTOR DUAL FUEL RD MODEL(16147)
MDL = MOTORIZED DOOR LOCK (16031)
MPS = MOTOR POSITION SWITCH
OL = OVEN LIGHT (16242)
PL = PILOT LIGHT (16046-02)
PLSR = PULSER 50% (13038)
PT = PROOF TIMER (16044-1)
PP = PRONG PLUG 50A (16212)
RF = RIGHT FRONT
RIS = RACK INTERLOCK SWITCH
RR = RIGHT REAR
RRM = REAR REIG MODULE (13236)
S-12 = SELECTOR 12” (16032-2)
S-30 = SELECTOR 30” (16032-1)
TB-MAIN = TERMINAL BLOCK – MAIN (16049)
TB-PANEL = TERMINAL BLOCK – PANEL (16006)
T-STAT = THERMOSTAT KS-HT (16032-2)
