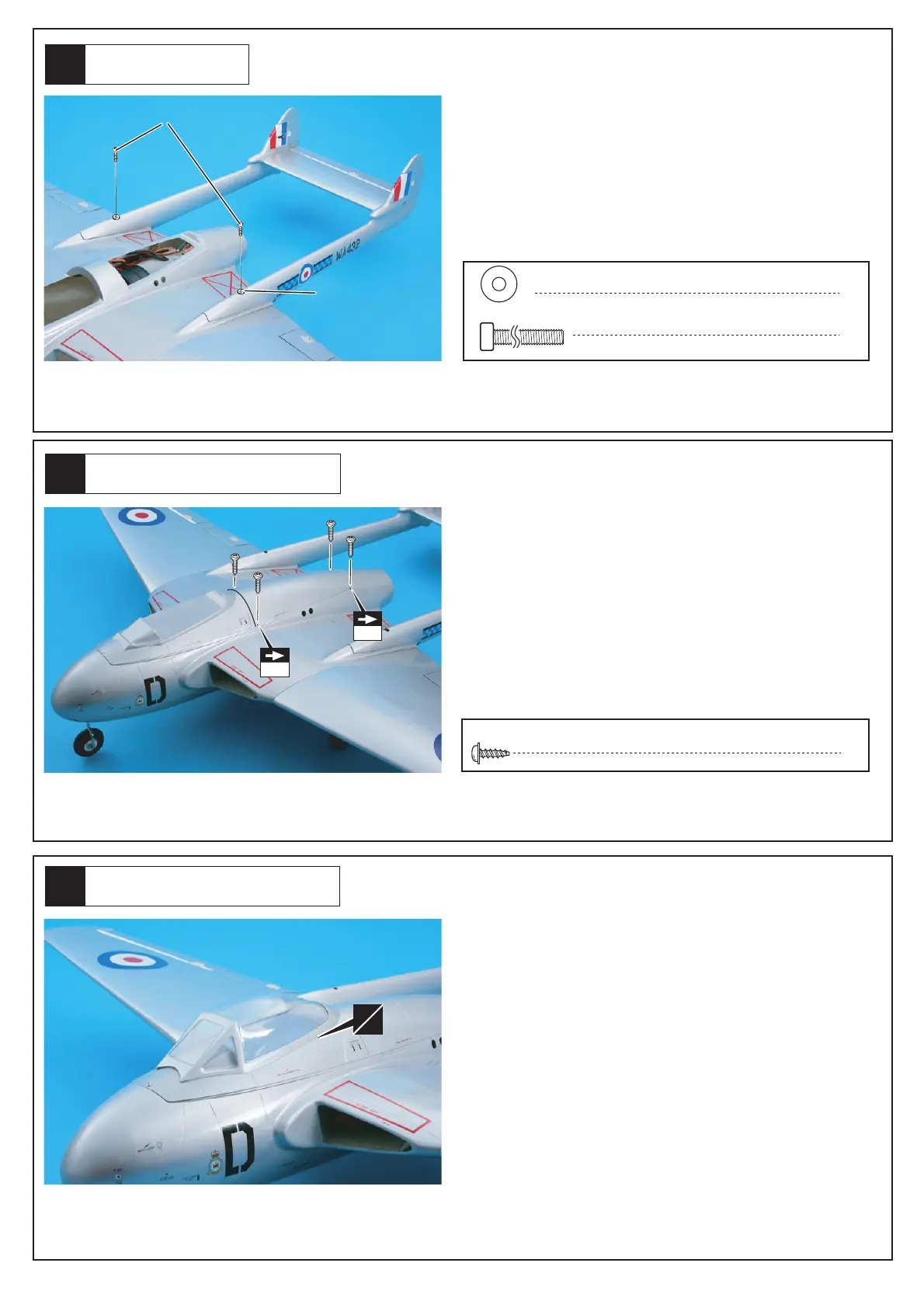

De Havilland VAMPIRE - Canopy and Tail Boom Mounting

35
13
36
34
4 x 20mm Screw
4mm Washer
2
2
4
2 x 8mm
TP Screw
A
B
Tail Booms
Mount tail booms in place with two 4x20mm screws
and 4mm washers.
4 x 20mm Screw
4mm Washer
Canopy Cover
Place canopy cover on fuselage, then drill 1.2mm hole
on canopy and lock it in place with 2x8mm screws, as
shown in picture.
1.2mm
Attach canopy with canopy cover with A/B glue.
Canopy
1.2mm
