I-1
Pos.
Description
1 Pilly 60 column
2 LOLUX
3
Photocells -
4
Safety edge -
5
Flashing light -
6
Selettore a chiave antiscasso - Anti lock-picking key switch -
7
Remote-control -
8
Radio keypad -
B
A
4 x 0,5 mm²
8 x 0,5 mm² - RG58
3x1,5 mm²
2 x 0,5 mm²
2 x 0,5 mm² - RG58
2 x 0,5 mm²
4 x 0,5 mm²
2 x 0,5 mm²
Make the 230V ± 10% 50 Hz mains connection using an omnipolar switch or any other device that guarantees the omnipolar disconnection of the mains
network with a contact opening distance of 3 mm
All
metal parts must be grounded

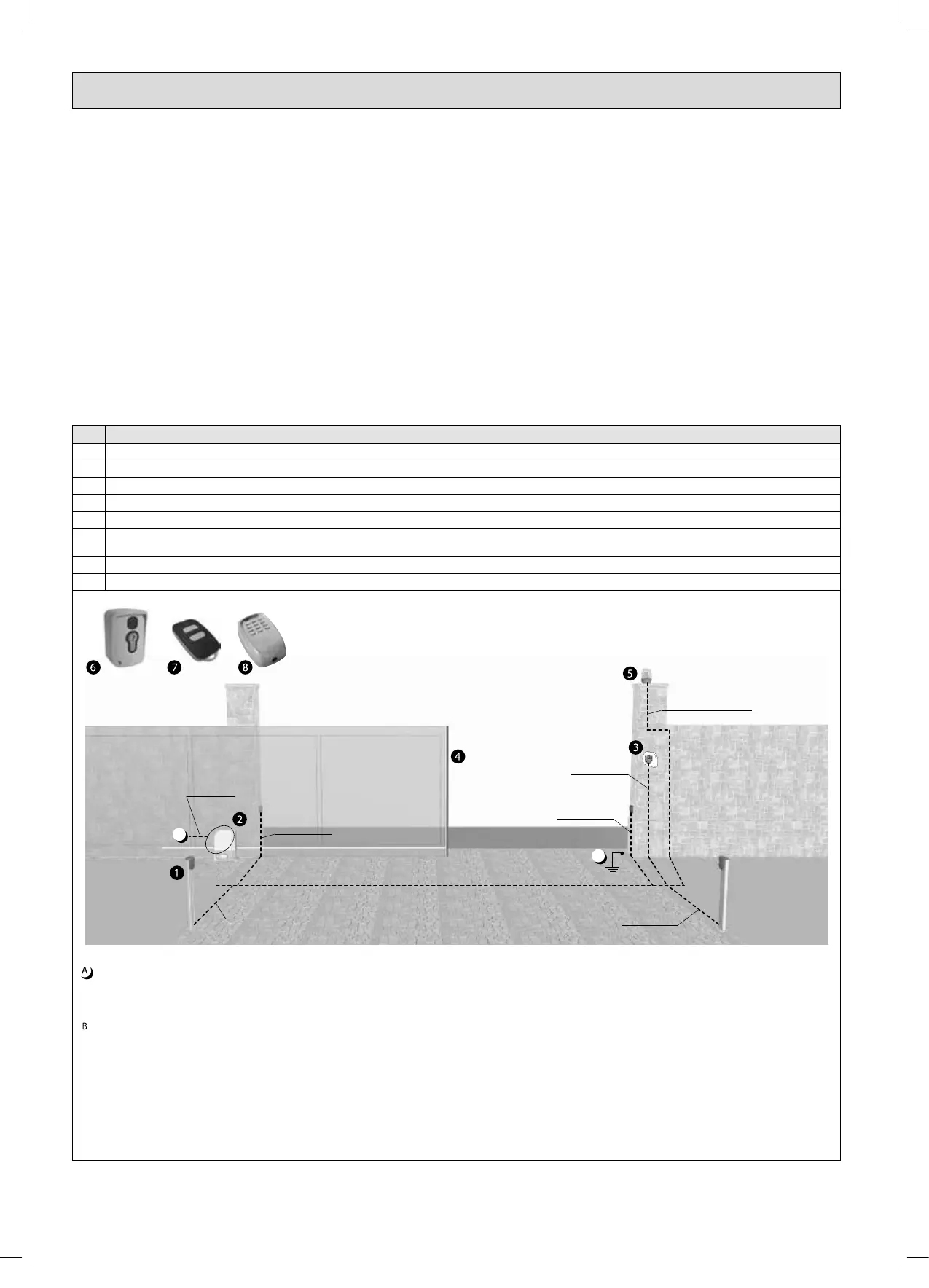

Example of typical installation
DEA System provides the following instructions which are valid for a typical system but obviously not compl
ete for every system. For each automatism the
installer must carefully evaluate the real conditions existing at the site. The installation requisites in terms of both performance and safety must be based
upon such considerations, which will also form the basis for the risk analysis and the detailed design of the automatism.
