EN-7

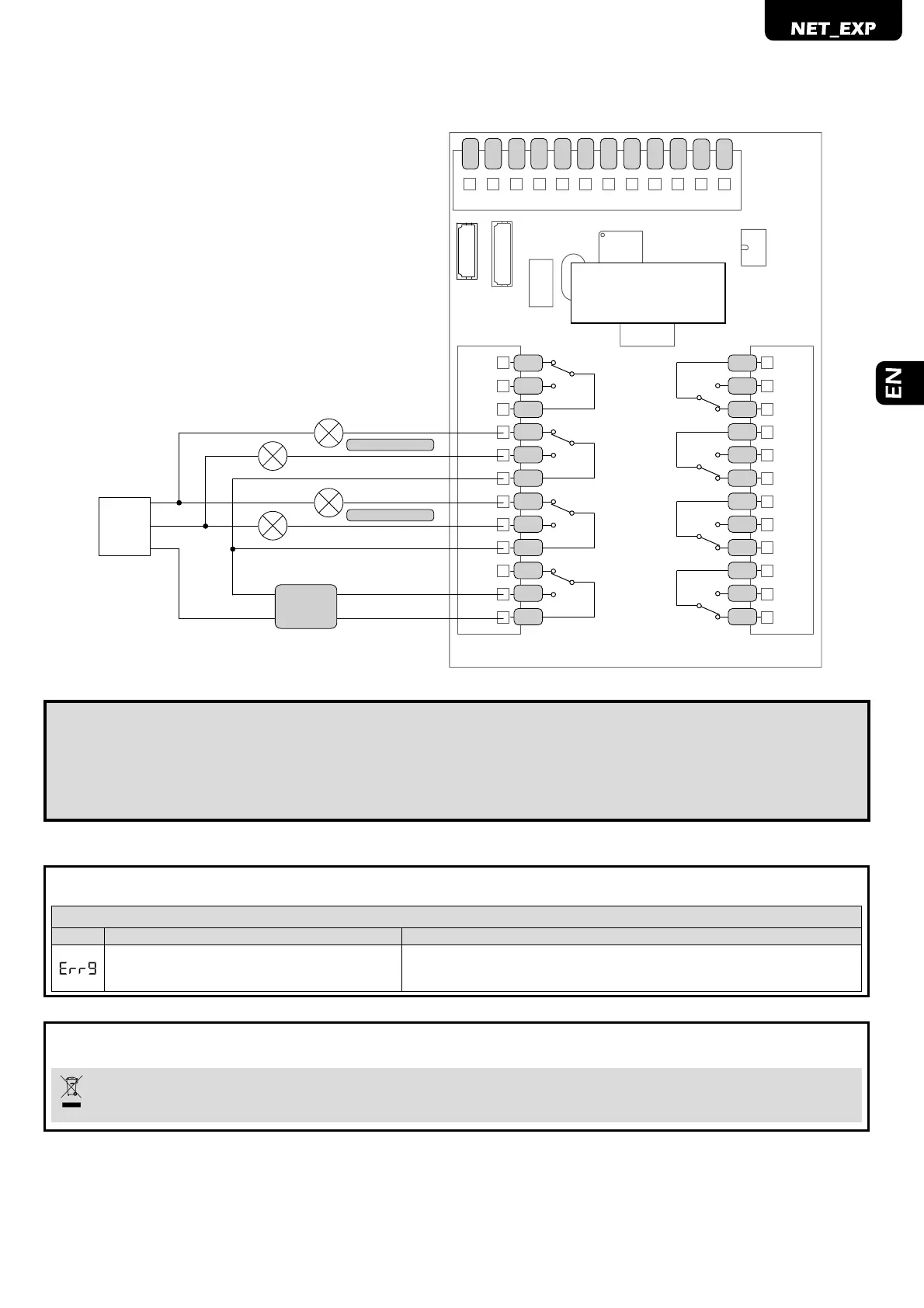

Wiring diagram for traffi c lights switched off with the gate closed
8 MESSAGES SHOWN ON THE DISPLAY SCREEN
ERROR MESSAGES
Mess. Description
Possible solutions
Interface with expansion board interrupted.
Verify that the cable connection between the NET_EXP expansion board and the con-
trol unit is correctly connected and in the correct position.
9 PRODUCT DECOMMISSIONING
WARNING In compliance with EU Directive 2012/19/CE on waste electrical and electronic equipment (WEEE), this electrical prod-
uct should not be treated as municipal mixed waste. Please dispose of the product and bring it to the collection for an appropriate
local municipal recycling.
COM 1
N.O. 1
N.C. 1
COM 2
N.O. 2
N.C. 2
COM 3
N.O. 3
N.C. 3
COM 4
N.O. 4
N.C. 4
N.C. 8
N.O. 8
COM 8
N.C. 7
N.O. 7
COM 7
N.C. 6
N.O. 6
COM 6
N.C. 5
N.O. 5
COM 5
TRAFFIC_LIGHT_EXT
TRAFFIC_LIGHT_INT
SAS
Output
COM 6
N.C. 6
COM 5
N.C. 5
COM 3
N.C. 3
COM 2
N.O. 2
COM 4
N.C. 4
COM 1
N.O. 1
NET_EXP
+V / ~
-V / ~
Green
Red
Green
Red
WARNING
If the confi guration of this wiring diagram is used, remember to set the parameters:
P053=0 / P072=1 (only NET24 - NET230)
P072=0 (only NET724)
